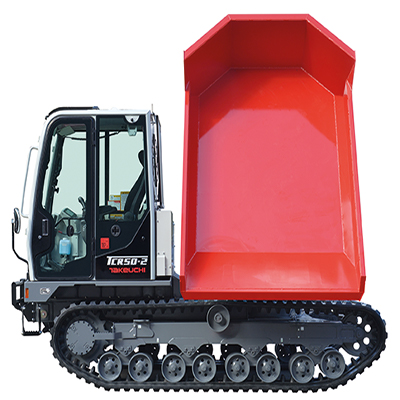

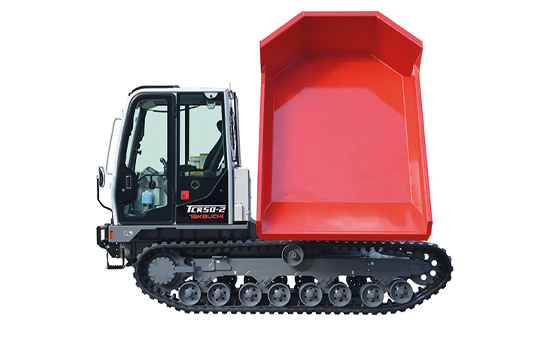

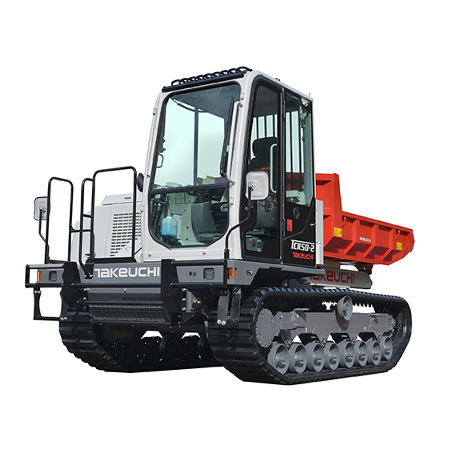

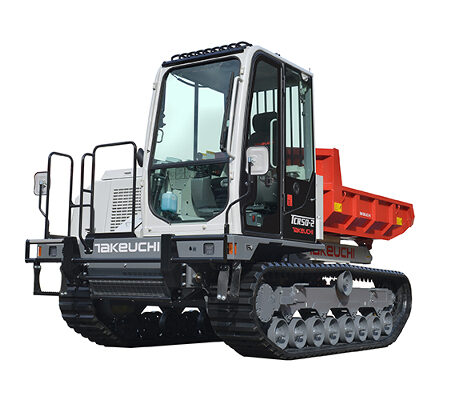

TCR50-2 Compact Tracked Dumper | 6.5 Tonne
The versatile TCR50-2 compact tracked dumper offers greater functionality, performance, comfort and serviceability. It features left and right skip-tip functionality (180 degree) offering efficient sideways dumping. With excellent 65-degree skip tip angle and 3,700kg payload the TCR50-2 offers a maximum load discharged with a single operation.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS / FOPS ) |
| Large 5.7" Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Adjustable Arm and Elbow Rests |
| Drink Holder |
| In Cab - AM / FM Radio/ USB / Bluetooth with Stereo Speakers |
| Wide-Angle Colour Rear-View Camera with Selectable Auto-reverse Activation - Full Screen Dislpay - Viewing Angle Adjustable |
| Air Con, Multi Vent Heater / De-mister - Front and Rear |
| Gas Lift-Assist Front Window, Easy Remove and Stow-away Lower Glass Panel. 50-50 Sliding Blind-Side Window |
| Front and Rear Window Wipers |
| Tinted Sun Visor and Skylight |

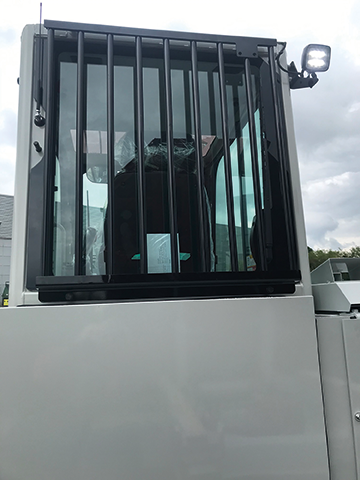

| Heavy Duty Roof and Rear Window Glass Guard |
| Cab Mirrors - 1 Interior, 2 Exterior |
| Full Foot Length Travel Pedal |
| Extended Width Anti-Slip Foot Rest |
| Flexible Rubber Mounted Access Steps |
| Anti-Slip Service Access Platform |
| Heavy Duty Service Access Handrails |
| ELECTRICAL |
| Sealed Rocker Switches |
| 2x In-Cab Power Sockets 12V/USB |
| 1x Ext Power Socket Front of Cab - 12V |
| LED lighting 4 x Front and 1 x Back |
| Beacon Lamp Switch - Prewired |
| Turning Direction Indicator Lamps |
| VDU Skip Park Position Indicators |
| Travel Alarm - Customize Forward/ Reverse |
| Emergency Engine Shut-down Switch |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) - Optional |
| ENGINE |
| Stage V Turbocharged Yanmar Engine - Low Emission Low Noise |
| DOC+DPF+SCR+ASC Exhaust After Treatment |
| AdBlue with Ground Level Tank and Site Gauge |
| Automatic Fuel Bleed System |
| Remote Engine Oil Filler Point |
| Double Element Air Cleaner |
| Automatic Deceleration |
| Foot and Dial Throttle Control |
| Service Access Panels - Lockable |
| Tool and Grease Gun Lockable Panel |
| High Capacity Fuel Tank |
| Electrical Refuelling Pump - Extended Length |
| Service Interval - 500 hours |
| HYDRAULICS |
| Full Hydraulic Pilot Controls |
| Dual Skip-Tip Cylinders |
| Hydraulic Skip Rotator Motor with Auto Rotator Brake |
| Concealed Hydraulic Piping |
| Emergency Skip-Lower Control Valve |
| Hydraulic Tank with Fluid Level Sight Gauge |
| UNDERCARRIAGE & FRAME |
| 450 mm Rubber Tracks with Auto Hydraulic Track Adjusters |
| 2-Speed Travel with Automatic Shift |
| Dual Pivot Double Flanged Track Rollers with Sealed Bearings |
| Reinforced Heavy Duty Loading Skip with Extended Height Headboard |
| Softwood Skip Cushioning Pads with Skip Body Safety Prop |
| Skip Cover Fixing Points |
| Heavy Duty Front Bull Bars |
| Heavy Duty Underbody Sump Guards |
| Secure-sure Anchor Points |
Specification
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 4TNV94FHT |
| Rated Output (kW)/RPM | 88.4 / 2500 |
| Maximum Torque (Nm) | 410 / 1700 |
| Cylinders | 4 |
| Displacement (cc) | 3053 |
| Electrical System | 12 volts 90 amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight (kg) | 6550 |
| Overall Length for transport (mm) | 4660 |
| Width (mm) | 2200 |
| Height (mm) | 2725 |
| Ground Clearance (mm) | 435 |
| Skip Size (mm) | 2615 |
| Tip Angle | 65° |
| OPERATING INFORMATION | |
| Overall tipped length (mm) | 4680 |
| Skip Discharge Height(mm) | 885 |
| Skip height when tipped (mm) | 3610 |
| Measure to centre (mm) | 1005 |
| Measure to centre at 90° | 1730 |
| Skip capacity level (m3) | 1.15 |
| Skip capacity heaped (m3) | 2.055 |
| Skip turning angle (L/R) | 90°/90° |
| UNDERCARRIAGE | |
| Track Width (mm) | 450 |
| Ground Contact Length (mm) | 2500 |
| Ground Pressure (kpa) | 42 FULL 27 EMPTY |
| Travel Speed (km/h) | 1st 7 2nd 9.5 |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 84 |
| Fuel Tank (l) | 127 |
| Engine Lubrication (l) | 10.5 |
| Cooling System (l) | 18.5 |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Overall tipped length (mm) | 4680 |
| Skip Discharge Height (mm) | 885 |
| Skip height when tipped (mm) | 3610 |
| Measure to centre (mm) | 1005 |
| Measure to centre at 90° | 1730 |
| Skip capacity level (m3) | 1.15 |
| Skip capacity heaped (m3) | 2.055 |
| Skip turning angle (L/R) | 90°/90° |
| DIMENSIONS & WEIGHT | |
| Operating Weight (kg) | 6550 |
| Overall Length for transport (mm) | 4660 |
| Width (mm) | 2200 |
| Height (mm) | 2725 |
| Ground Clearance (mm) | 435 |
| Skip Size (mm) | 2615 |
| Tip Angle (mm) | 65° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
Takeuchi Security System (TSS)
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Takeuchi stands for…
Maximum Efficiency

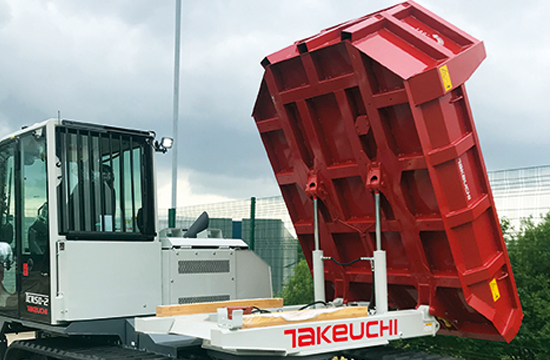

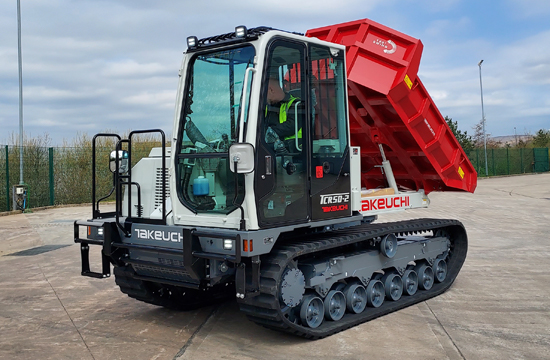

With an ample 65 degree dump angle and 3,700kg maximum loading weight, the operator has full control of load delivery.
Left & Right Tipping
Dual skip-tip function (180 degree) offers efficient sideways dumping, useful where space and access is restricted.
Trench Fill Functionality
With a rotating skip capability, minimizes the need to continually reposition the machine on site.
Full Hydraulic Control
Hydraulic joystick controls deliver smooth operation for travel and skip tipping functions. A choice of foot or jog-dial throttle allows more economic and intuitive operation for engine speed.
Stage V Ready
EU Stage V Turbocharged Yanmar Engine, DPF, SCR and AdBlue.
500 hour service intervals.

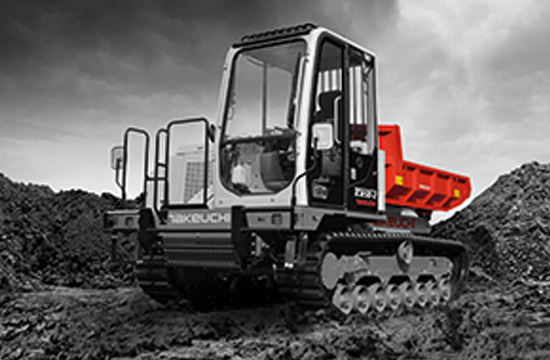

Added Safety On-site

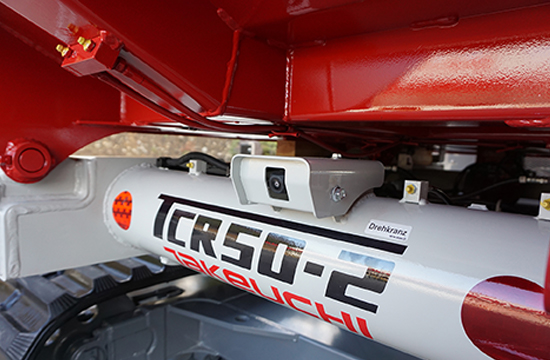

The new TCR50-2 is packed full of on-site safety features including 180 degree rear view colour camera with auto activation, operators can customise the camera settings.
Robust Design

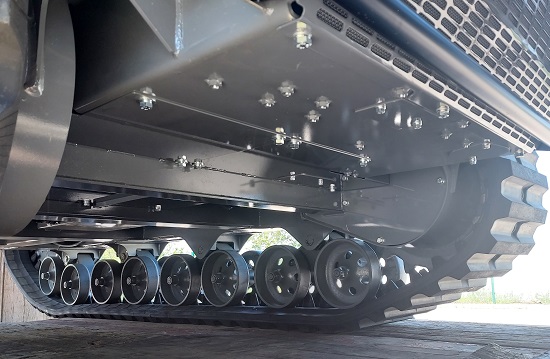

A robust and heavy duty undercarriage, incorporating removable steel engine sump guard plates. Large heavy duty rollers and steel imbeds are utilized on the undercarriage for outstanding durability and value.
Tough and Dependable
Front idler rollers are robust with larger bearings for slower shaft speeds. Dual pivot double flanged track rollers with sealed bearings for added durability. Automatic hydraulic track tensioning expanders improve track retention.
Tipping Power

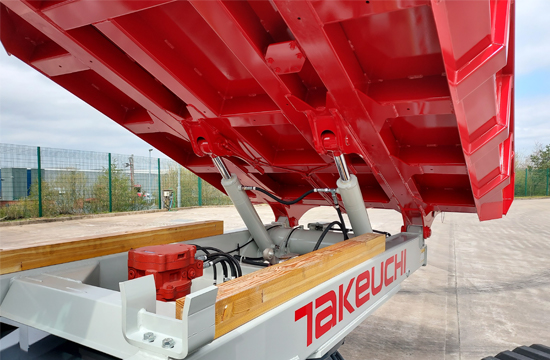

Powerful dual concealed lift cylinders. The 65 degree tilting skip comes with a skip body lock and 4 anchor points make for secure load transporting.

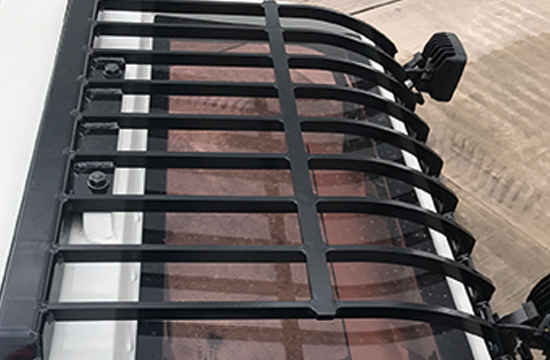

Roof Guard as Standard
Added safety on site for operators, with roof and cab glass guard fitted as standard and anti-slip walkways and steps.
Purpose Built Frame
Features multiple cross members for greater strength and rigidity.
On-Site Safety

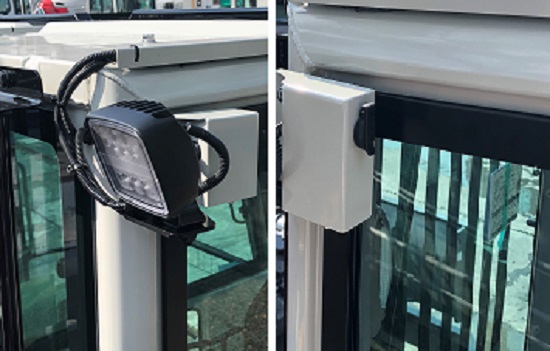

The pre-wired beacon switch and internal power socket come as standard. The customisable travel alarm has option for forward and reverse travel or only as reverse alarm.

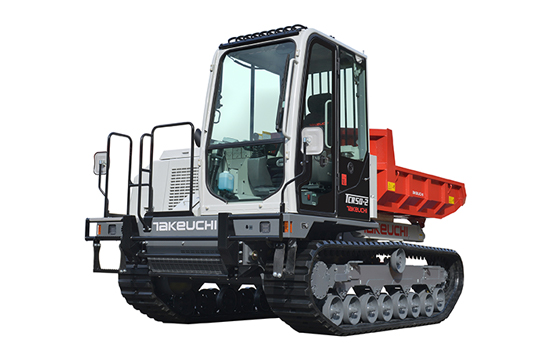

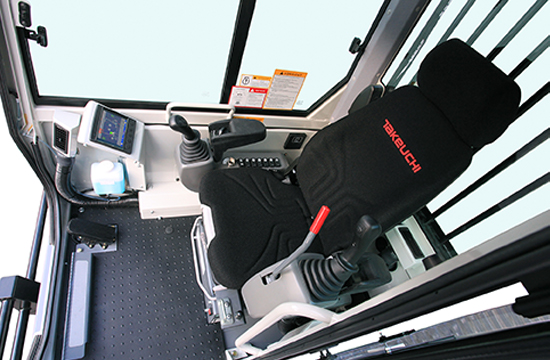

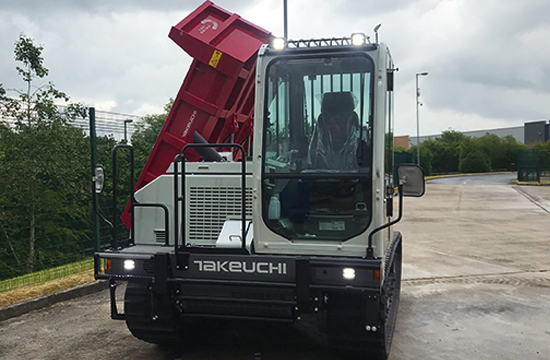

Comfort and Convenience
The operator’s station on the new TCR50-2 is well appointed and spacious for outstanding comfort with plenty of operator foot-room .

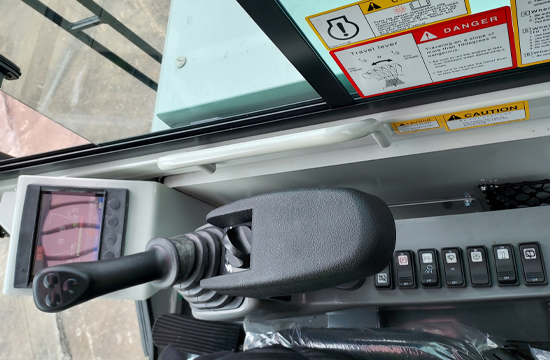

Comfortable Controls
Multi Information Display, sealed rocker switches and dual foot and throttle control make for easy all day operating with stereo speakers and bluetooth / radio.

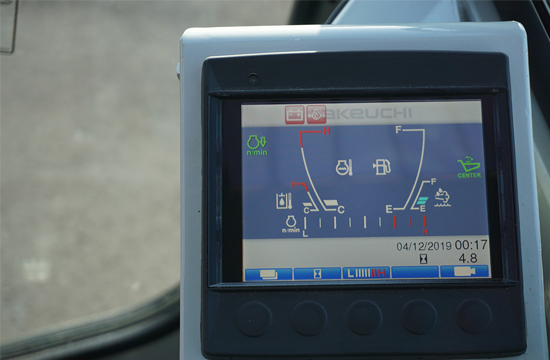

Colour VDU
A completely redesigned operator station features an intuitive 5.7” colour multi-informational display.
Added in-cab Comfort

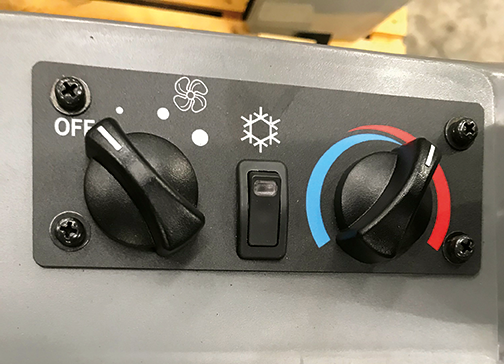

With a large cup holder and air conditioning as standard operators get the maximum all day comfort.
Deluxe Suspension Seat
A deluxe high back suspension seat is standard and features variable height settings for optimal comfort and visibility.
Maximum Site Safety
The new TCR50-2 is packed full of on-site safety including LED workzone lighting featuring roof mounted skip-loading light. Prewired beacon switch, blind spot mirrors, travel alarm, front and rear wash wipes, all round glass demisters and rear window and roof loading debris guard.

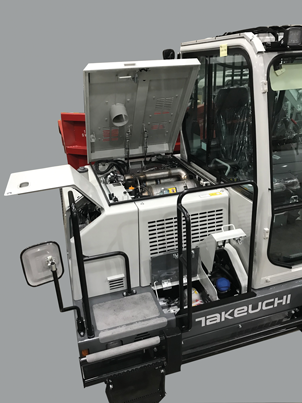

Easy Access Servicing
The TCR50-2 is designed for maximum easy servicing of daily routines with 500 hour service intervals.
Maximum Visibility
Visibility is maximised with 3 rear view mirrors, LED work lights and tinted sun visor. The cab window has rear screen wash wipe function and window vents.

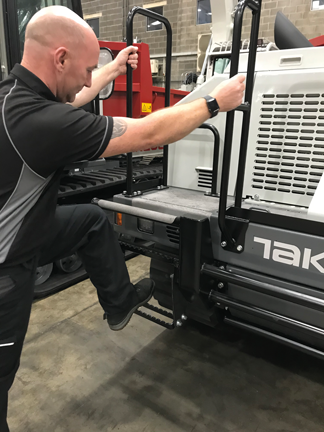

Safe Servicing
Well positioned grip-steps and handle bars provide safe access to service areas at the top of the machine.
Secure Service Points

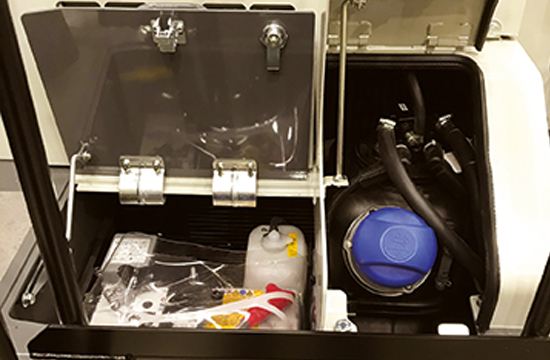

Lockable service and refuelling access panel.
Fully lockable battery and fuse compartment. Access to battery fuses and expansion bottle.

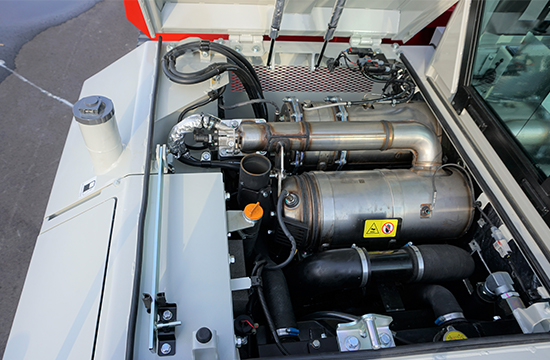

Maximum Engine Access
Top cover engine access.
Easy access to dipstick, engine oil and coolant filling points.

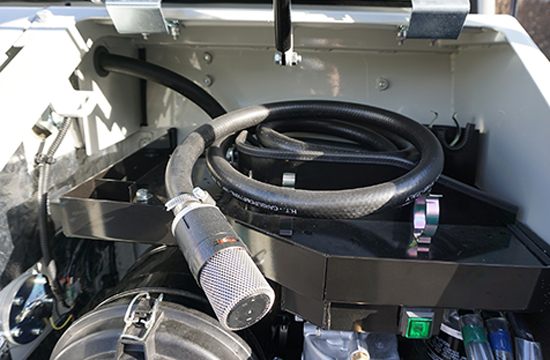

Fuel Pump
Standard auto fuel transfer pump for quick fuel refill with site gauge.
Easy ground level access to fuel and air filter, grease gun and tool bags.
