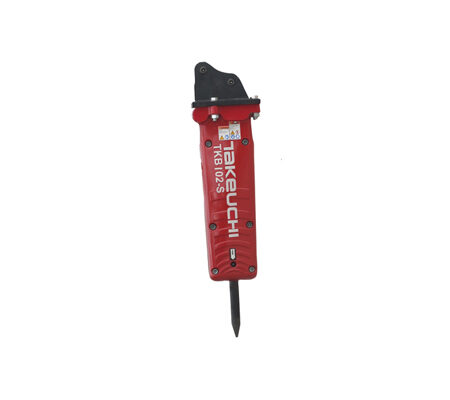

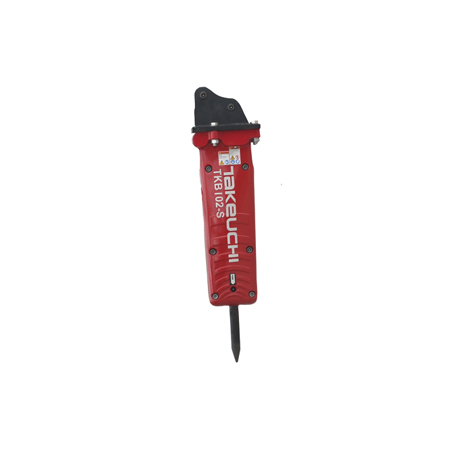

TKB102-S Hydraulic Breakers | Sound Suppressed

Takeuchi’s new sound suppressed hydraulic breakers are designed to meet the requirement for quieter operating environments. The new range offers significantly quieter breaker performance across the range.

The 6 models in the range offer excellent power to weight ratios suitable for a variety of breaker applications and Takeuchi tool carriers. Built for the toughest construction conditions the new Takeuchi breakers offer a fully enclosed stylish body casing.

Designed to offer both heavy duty protection on site, sealing against dust and debris, the casing also fully encloses the sound emissions to help minimize dBA sound levels.

For Product and Pricing Information

Contact your Local Dealer
Compare Breakers

Works with Models: TB225 | TB23R | TB230 | TB235 | TB138FR | TB240

Carrier Weight
2.0 – 4.0 T

Impact Rate
1000-2000 BPM

Working Weight
180 kg

For Product and Pricing Information

Contact your Local Dealer
Compare Breakers

Works with Models: TB225 | TB23R | TB230 | TB235 | TB138FR | TB240

Carrier Weight
2.0 – 4.0 T

Working Weight
180 kg

Impact Rate
1000-2000 BPM

TKB102-S Hydraulic Breakers | Sound Suppressed

Takeuchi’s new sound suppressed hydraulic breakers are designed to meet the requirement for quieter operating environments. The new range offers significantly quieter breaker performance across the range.

The 6 models in the range offer excellent power to weight ratios suitable for a variety of breaker applications and Takeuchi tool carriers. Built for the toughest construction conditions the new Takeuchi breakers offer a fully enclosed stylish body casing.

Designed to offer both heavy duty protection on site, sealing against dust and debris, the casing also fully encloses the sound emissions to help minimize dBA sound levels.

Product Details

Specification

MODELTKB102S Silenced
Breaker body weight (kg)156
Working weight (kg) (incl. mounting bracket and std. tool)180
Body length / total length (mm)869/1229
Body width (mm)-
Operating pressure bar (*c)120 - 140 bar
Oil flow range (l/min)30 - 63
Hose diameter (mm)15
Tool diameter (mm)50
Impact rate (bpm) (*b)1000-2000
Noise level, guaranteed sound power level, (LWA)124db
Carrier weight tonnes2.0 - 4.0t
Takeuchi excavator modelTB225 | TB23R | TB230 | TB235 | TB138FR | TB240

Trust in Takeuchi for…

Powerful Performance
The far heavier piston design provides the strength for increased blow frequency and breakout performance. Increased breaker oil flow capacity, up to 45%, for use with various size of tool carriers.

Sound & Vibration Insulation
The silenced breaker range  from Takeuchi combines 3 parts into a one-piece arrangement. The heavy-duty box type outer housing offers enormous noise and vibration insulation.

Reliable Performance
The breaker design improves on-site performance by maintaining alignment for the tool. Just two moving parts help to minimize potential maintenance issues.

Easy to Install
The larger breaker models have an easy attach pivoting connecting block for hydraulic hoses, allows for varying positions of auxiliary ports on a tool carrier excavator.

Easy to Service
The breaker body has far fewer integral components and no tie rods, an integrated accumulator and single lower tool bushing.
No need for periodic gas recharging.

Easy to Maintain
The solid all round cast steel protective body eliminates exposed areas compared to conventional breakers, where the tie rods are vulnerable when positioned around the edges.
