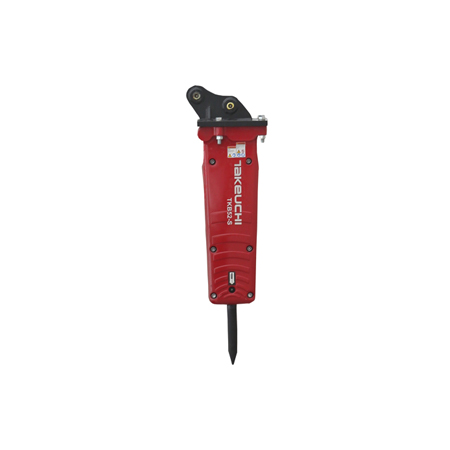

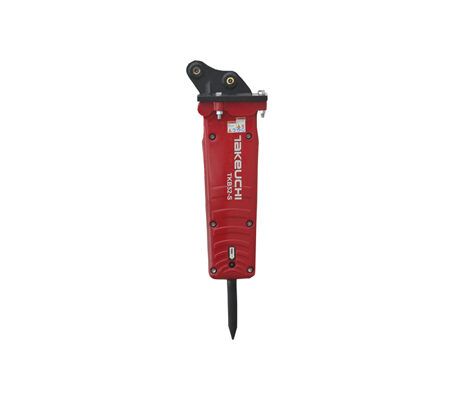

TKB-52S Hydraulic Breakers | Sound Suppressed

Takeuchi’s new sound suppressed hydraulic breakers are designed to meet the requirement for quieter operating environments. The new range offers significantly quieter breaker performance across the range.

The 6 models in the range offer excellent power to weight ratios suitable for a variety of breaker applications and Takeuchi tool carriers. Built for the toughest construction conditions the new Takeuchi breakers offer a fully enclosed stylish body casing.

Designed to offer both heavy duty protection on site, sealing against dust and debris, the casing also fully encloses the sound emissions to help minimize dBA sound levels.

For Product and Pricing Information

Contact your Local Dealer
Compare Breakers

Works with Models: TB210R | TB216

Carrier Weight
0.8 – 1.8 T

Impact Rate
1300-2500 BPM

Working Weight
90 kg

For Product and Pricing Information

Contact your Local Dealer
Compare Breakers

Works with Models: TB210R | TB216

Carrier Weight
0.8 – 1.8 T

Working Weight
90 kg

Impact Rate
1300-2500 BPM

TKB52-S Hydraulic Breakers | Sound Suppressed

Takeuchi’s new sound suppressed hydraulic breakers are designed to meet the requirement for quieter operating environments. The new range offers significantly quieter breaker performance across the range.

The 6 models in the range offer excellent power to weight ratios suitable for a variety of breaker applications and Takeuchi tool carriers. Built for the toughest construction conditions the new Takeuchi breakers offer a fully enclosed stylish body casing.

Designed to offer both heavy duty protection on site, sealing against dust and debris, the casing also fully encloses the sound emissions to help minimize dBA sound levels.

Product Details

Specification

MODELTKB52S Silenced
Breaker body weight (kg)74
Working weight (kg) (incl. mounting bracket and std. tool)90
Body length / total length (mm)677 / 964
Body width (mm)210
Operating pressure bar (*c)100-120
Oil flow range (l/min)15 - 33
Hose diameter (mm)12
Tool diameter (mm)36
Impact rate (bpm) (*b)1300 - 2500
Noise level, guaranteed sound power level, (LWA)119 dB
Carrier weight tonnes0.8 - 1.8 t
Takeuchi excavator modelTB217 | TB216

Trust in Takeuchi for…

Powerful Performance
The far heavier piston design provides the strength for increased blow frequency and breakout performance. Increased breaker oil flow capacity, up to 45%, for use with various size of tool carriers.

Sound & Vibration Insulation
The silenced breaker range  from Takeuchi combines 3 parts into a one-piece arrangement. The heavy-duty box type outer housing offers enormous noise and vibration insulation.

Reliable Performance
The breaker design improves on-site performance by maintaining alignment for the tool. Just two moving parts help to minimize potential maintenance issues.

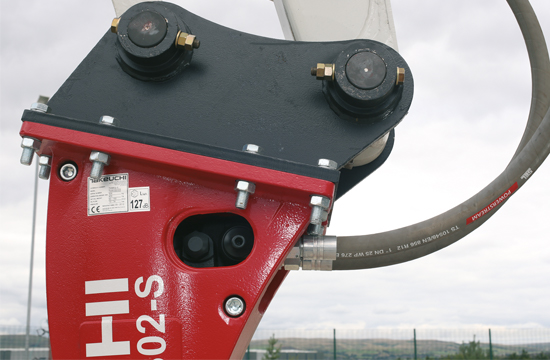

Easy to Install

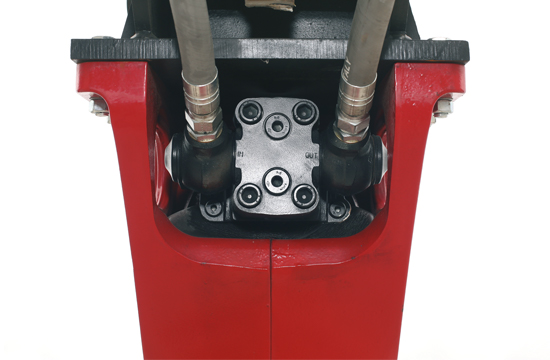

The larger breaker models have an easy attach pivoting connecting block for hydraulic hoses, allows for varying positions of auxiliary ports on a tool carrier excavator.

Easy to Service
The breaker body has far fewer integral components and no tie rods, an integrated accumulator and single lower tool bushing.
No need for periodic gas recharging.

Easy to Maintain
The solid all round cast steel protective body eliminates exposed areas compared to conventional breakers, where the tie rods are vulnerable when positioned around the edges.
