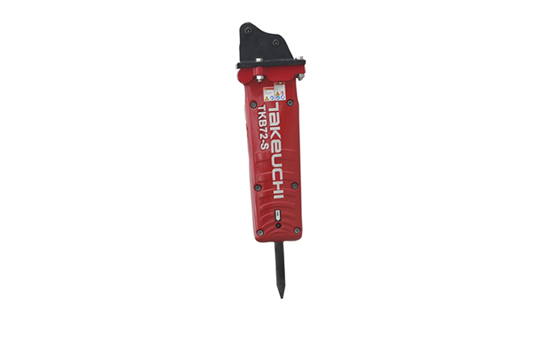

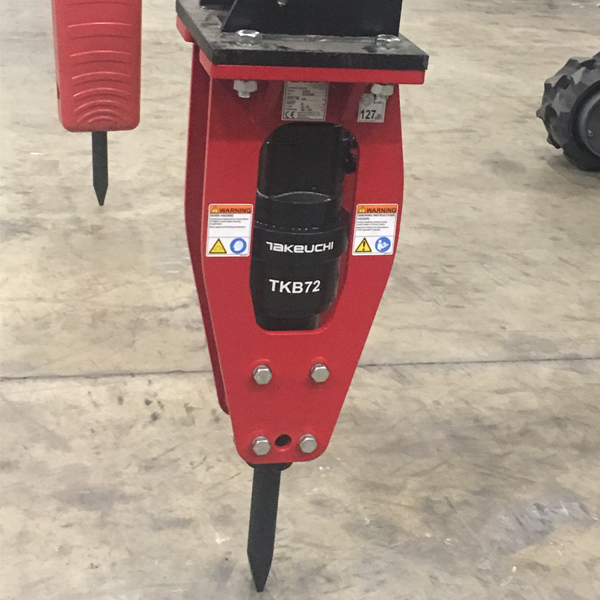

TKB-72 Hydraulic Breaker | Sound Suppressed

Takeuchi’s hydraulic breakers are designed to meet the requirement for working in confined spaces including utilities and trenchwork. The 2 Slimline breakers are specifically designed for narrow trench work with excellent power to weight ratios.

Built for the toughest construction conditions the new Takeuchi breakers offer durable tough design. Suitable to work with compact Takeuchi mini excavators including TB210R / TB217R and TB216.

For Product and Pricing Information

Contact your Local Dealer
Compare Breakers

Works with Models: TB210R | TB216 | TB217

Carrier Weight
1.3 – 2.7 T

Impact Rate
1600-2600 BPM

Working Weight
105 kg

For Product and Pricing Information

Contact your Local Dealer
Compare Breakers

Works with Models: TB210R | TB216 | TB217

Carrier Weight
1.3 – 2.7 T

Working Weight
105 kg

Impact Rate
1600-2600 BPM

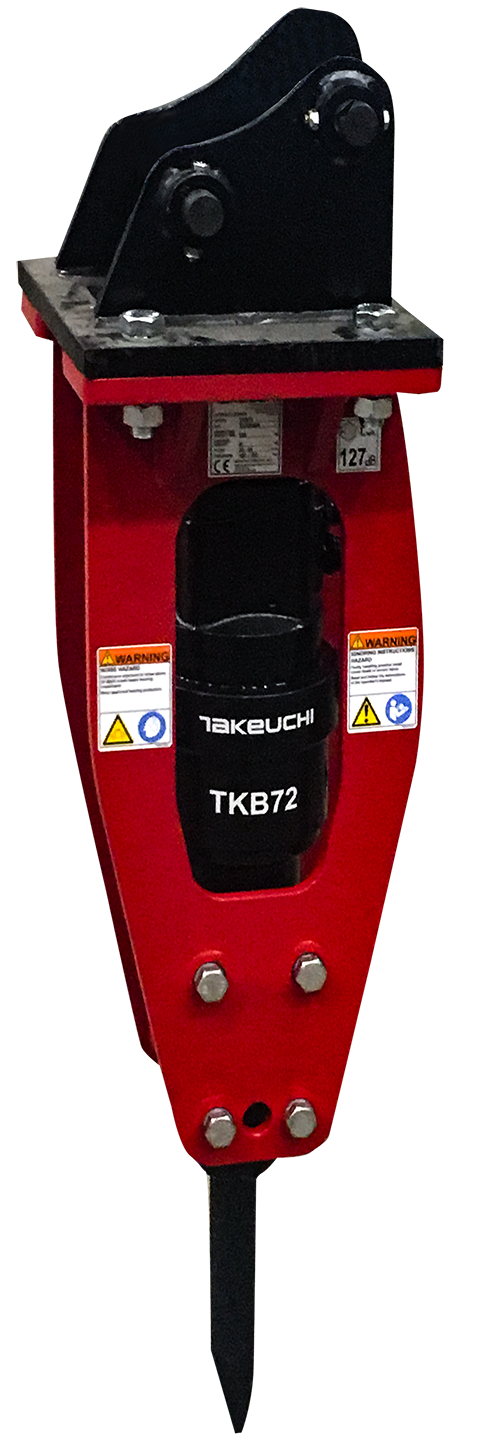

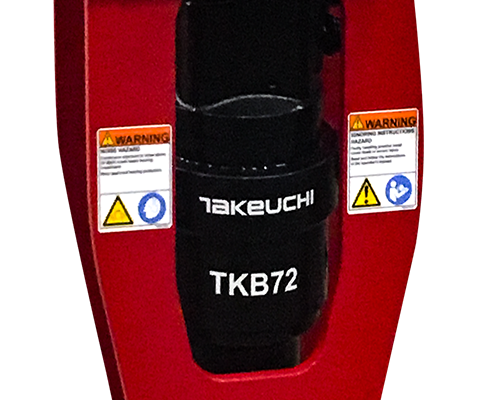

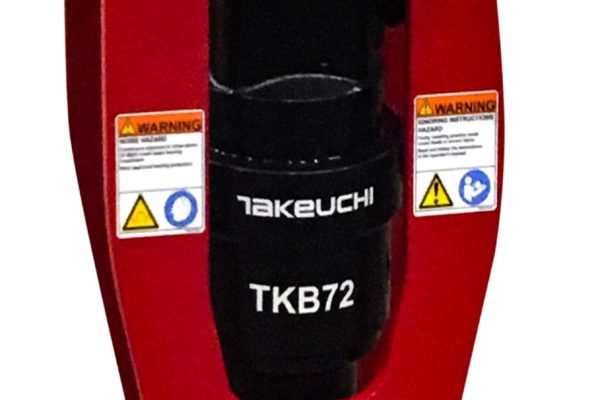

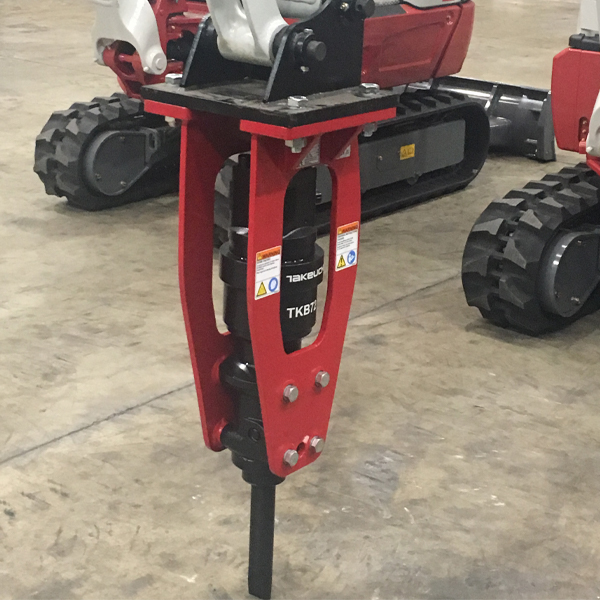

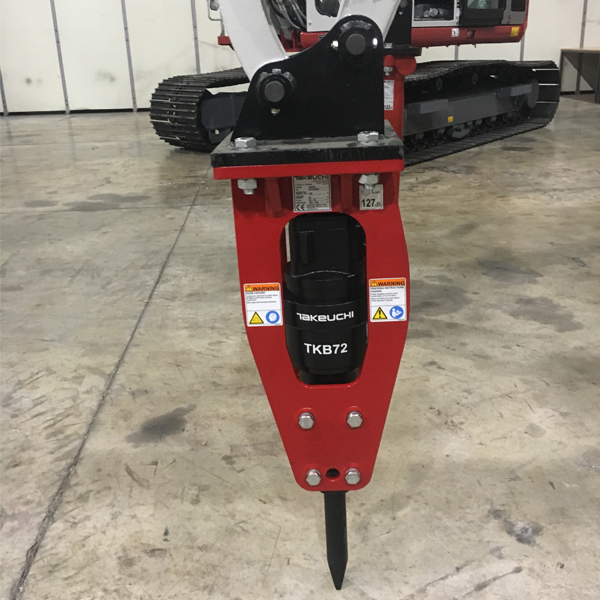

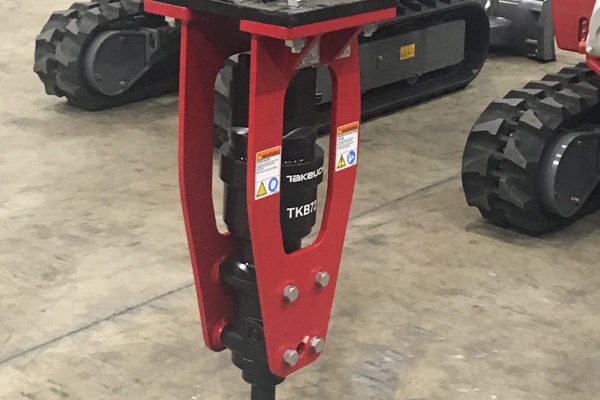

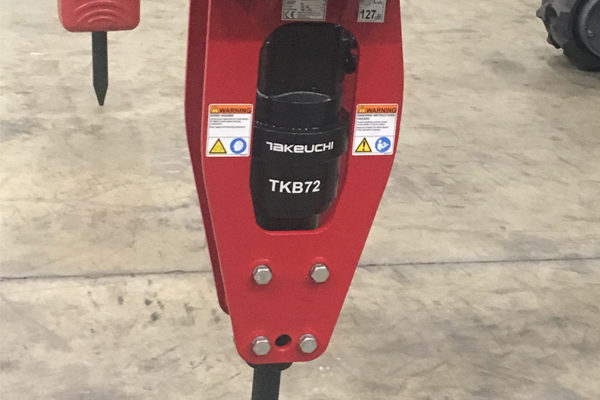

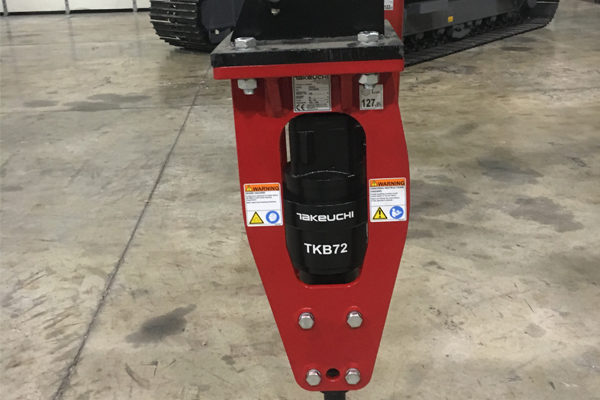

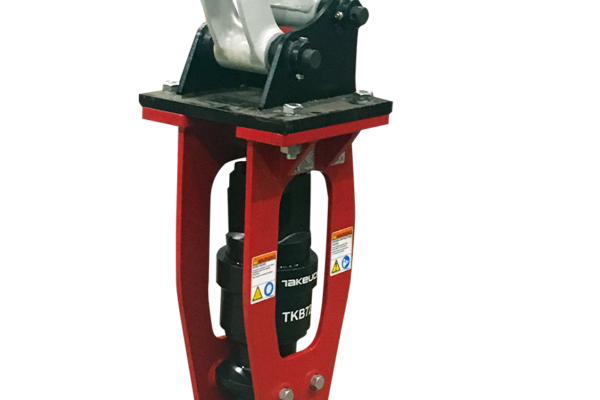

TKB-72 Hydraulic Breaker | Slimline

Takeuchi’s hydraulic breakers are designed to meet the requirement for working in confined spaces including utilities and trenchwork.
The 2 Slimline breakers are specifically designed for narrow trench work with excellent power to weight ratios.
Built for the toughest construction conditions the new Takeuchi breakers offer durable tough design.
Suitable to work with compact Takeuchi mini excavators including TB210R / TB217R and TB216.

Product Details

Specification

MODELTKB-52 Slimline
TKB-72 Slimline
Breaker body weight (kg)5381
Working weight (kg) (incl. mounting bracket and std. tool)

70105
Body length / total length (mm)574/861658/985
Body width (mm)
160185
Operating pressure bar (*c)100 - 120 120 - 140
Oil flow range (l/min)15 - 3320 - 48
Hose diameter (mm)1212
Tool diameter (mm)

3642
Impact rate (bpm) (*b)

1300 - 25001600 - 2600
Noise level, guaranteed sound power level, (LWA)

121 dB127 dB
Carrier weight tonnes
0.8t - 1.8t 1.3 - 2.7t
Takeuchi excavator model



TB210R

TB217R
TB216

TB219

TB23R
  • The slimline TKB-52 and TKB-72 gives operators enhanced visibility directly into the trench, essential for sensitive utilities e.g. gas and power
  • Designed for narrow trench work, the slimline breakers can access the narrowest utilities trenches typical for telecommunications.
  • The well-protected breaker body has a compact size.
  • Easy to Install – quick attachments
  • Easy to Maintain – heavy-duty robust design
  • Easy to Service – fewer component parts
