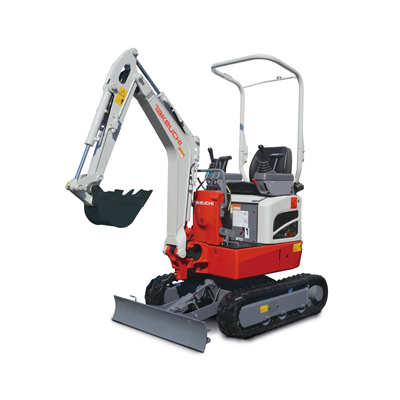

TB210R Compact Excavator | 1.1 Tonne
The TB210R Compact Excavator delivers excellent performance and provides an impressive feature set in a very compact design. It features a retractable undercarriage, foldable ROPS, and minimal tail swing enabling the TB210R to work in the most confined applications.
Download the TB210R Brochure here
Download the Full Takeuchi Range Brochure here
Product Details
Machine Features
| OPERATOR STATION |
|---|
| Canopy (TOPS / ROPS) |
| Protective Counterweight with Site Reflectors |
| Fold-down ROPS Bar |
| Adjustable Seat |
| Pilot Operated Joystick Controls with Cushioned wrist Supports |
| Pivot and Swing-out Control Arms |
| Fold-Away Foot Travel Pedals |
| Fold-Away Foot Controlled Offset |
| ELECTRICAL |
| Warning Lights for Charge Level, Engine Oil Pressure, and Coolant Temperature |
| Visual Indicators for High Speed Travel |
| 12 volt System with 40 Amp Alternator |
| Power Socket - 12V |
| Boom Mounted Work Light |
| Travel Alarm / Horn |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) - Optional |
| ENGINE |
| Stage V <19kW engine - Low Emission |
| Engine Preheat Starting Aid |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap |
| Dual Element Air Filters |
| Service Interval - 250 hours |
| HYDRAULICS |
| Hydraulic Servo Pilot Controls with Pilot Accumulator |
| Independent Pilot Oil Supply Pump |
| Tandem Gear Pumps |
| Top Mounted Boom Cylinder |
| Boom & Arm Internally Housed Piping |
| Auxiliary Hydraulic Plumbed to Arm with Isolation Valve |
| Selectable One-way and Two-way Auxiliary flow |
| Mechanical Detent for Continuous Auxiliary Flow ( Pedal Lock) |
| Hydraulic Tank with Fluid Level Sight Gauge |
| UNDERCARRIAGE AND FRAME |
| Expanding Track Frame 750-1020mm |
| Low and High Speed Travel |
| Mechanical Locking Slew Brake |
| Double Flanged Track Rollers |
| Adjustable Dozer Blade with Quick-drop Pin-lock width Extension |
Specifications
| ENGINE / MOTOR | |
|---|---|
| Make | Kubota |
| Model | D722-E4B |
| Rated Output (kW)/RPM | 8.8/2200 |
| Maximum Torque (Nm) | 36 |
| Cylinders | 3 |
| Displacement (cc) | 719 |
| Electrical System | 12volts 40amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 1180 |
| Overall Length for transport (mm) | 2955 |
| Width (mm) | 750 - 1020 |
| Height (mm) | 2190 |
| Dozer Blade (W x H) (mm) | 750 (1020) X 200 |
| Ground Clearance (mm) | 160 |
| Min Front Radius of Machine (mm) | 1320 |
| Slew Radius (mm) | 610 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 182 |
| 1st Aux Max Flow (l/min) | 22 |
| 1st Aux Max Pressure (bar) | 182 |
| 2nd Aux Max Flow (l/min) | N/A |
| 2nd Aux Flow Pressure (bar) | N/A |
| Standard Aux | 1st |
| Optional Aux | N/A |
| 3rd Aux | N/A |
| SWING SYSTEM | |
| Slew Speed (rpm) | 10 |
| Slew Motor | Trachoid Gear |
| Slew Brake | Brake Valve |
| UNDERCARRIAGE | |
| Traction Motor | Piston |
| Traction Drive | Epicyclic Gearing |
| Traction Brake | Disc |
| Track Width (mm) | 180 |
| Ground Contact Length (mm) | 1005 |
| Ground Pressure (kpa) | 28 |
| Maximum Gradeability | 15° |
| CAPACITIES | |
| Hydraulic System (l) | 15 |
| Fuel Tank (l) | 12 |
| Engine Lubrication (l) | 2.8 |
| Cooling System (l) | 4 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 91 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB52 |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 1755 |
| Max Dump Height (mm) | 2120 |
| Max Reach at Ground Level (mm) | 3220 |
| Max Vertical Digging Depth (mm) | 1475 |
| Max Bucket Digging Force (kN) | 11.2 |
| Max Arm Digging Force (kN) | 6.4 |
| Travel Speed (km/h) | 2.0 / 3.7 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 1180 |
| Overall Length for transport (mm) | 2955 |
| Width (mm) | 750 - 1020 |
| Height (mm) | 2190 |
| Dozer Blade (W x H) (mm) | 750 (1020) X 200 |
| Ground Clearance (mm) | 160 |
| Min radius attach (mm) | 1320 |
| Min Radius at Max offset Left (mm) | 1219 |
| Min Radius at max offset right (mm) | 1165 |
| Boom Swing Angle (R/L) | 55°/ 55° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi provides TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…

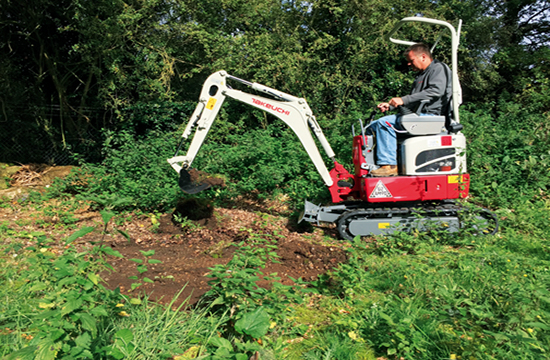

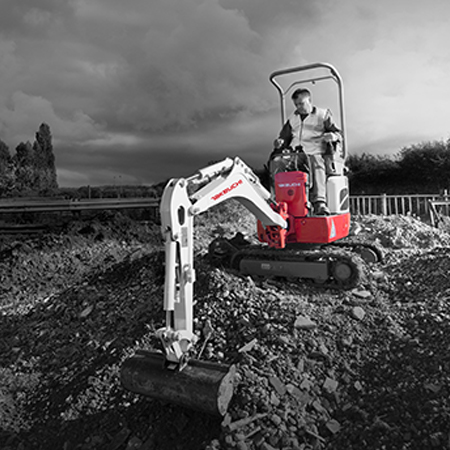

Micro Muscle
The TB210R Micro is our smallest excavator and has a 3 cylinder engine and full pilot controls for digging functions.

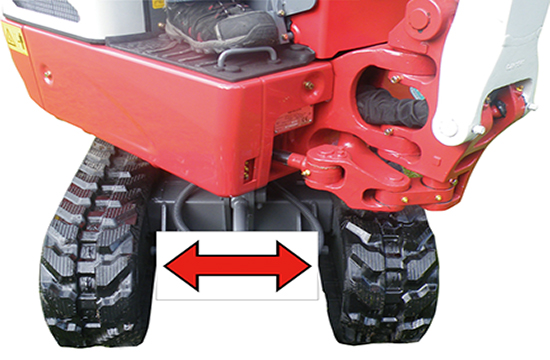

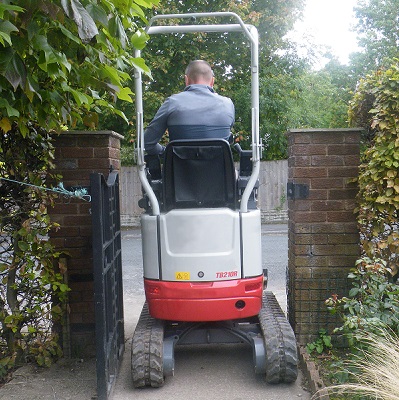

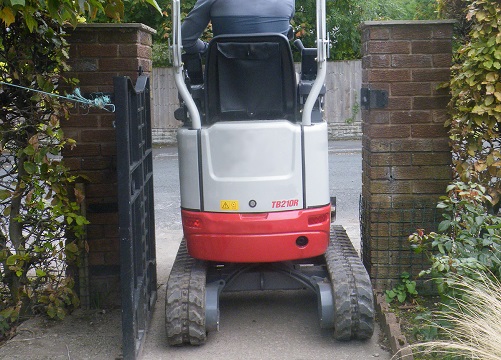

Extendable Track Frame
Allows this machine to travel through standard doorways and areas with limited access (750-1020mm).

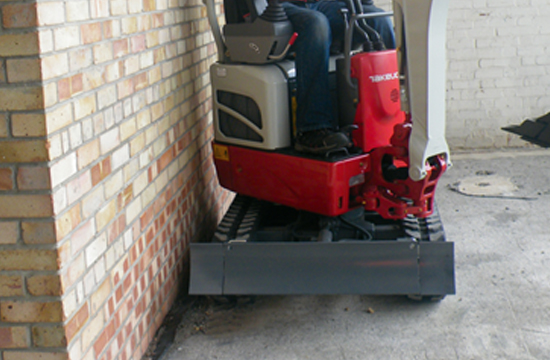

Short Tail Swing
The micro offers near zero tail swing with extended track position to operate in confined spaces.
Attachment Ready
Features two way auxiliary hydraulics with isolation shut-off valves. Well protected and internally routed piping.
Two Speed Travel
Features a convenient push button on the right travel lever to shift from low to high speed.
Compact On Site
The narrow width gets maximum access on site. Folding ROPS bar for reduced height access. Compact for trailer towing and storing.

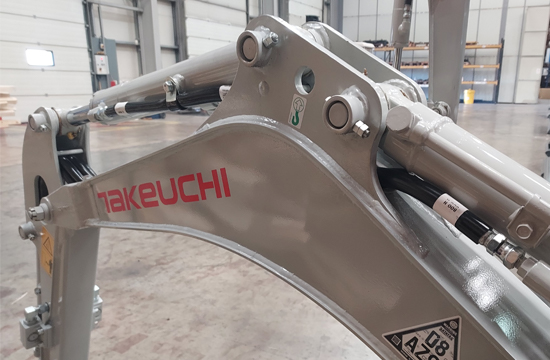

Top Mount Boom Cylinder Helps protect the boom cylinder from bucket and debris. Improved dig depth and visibility

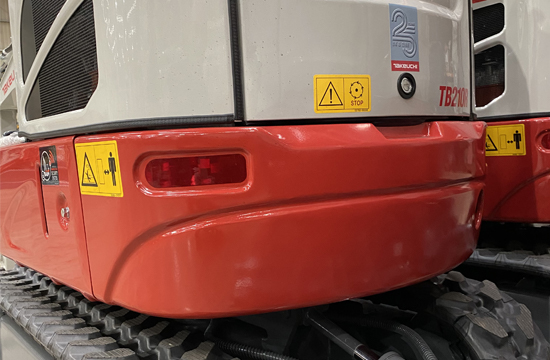

Wrap Around Counterweight Protects key engine and hydraulic components from damage while delivering excellent stability.

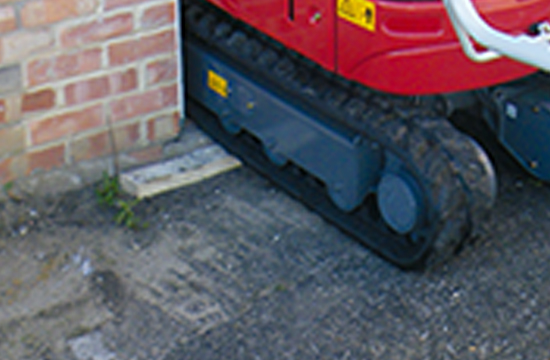

Double Flange Track Rollers Provide greater contact between the roller and rail for improved track retention and smoother travel.

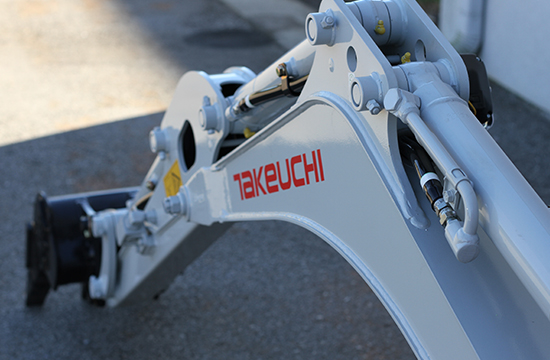

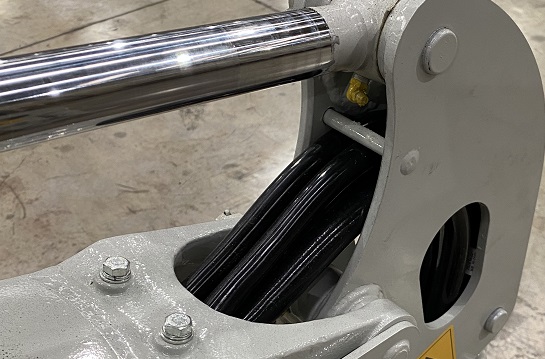

Protected Hydraulic Piping
All hoses routed via the boom and arm for an extra level of protection, and greater visibility of the work equipment.

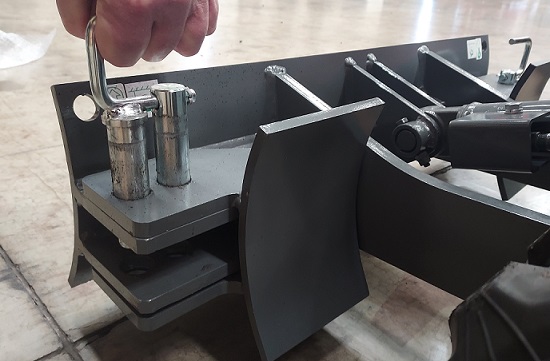

Dozer Blade Extension
Quick change adjustable dozer blade to match expanded track width. With spiral wrapped pipework to protect the blade cylinder hydraulic lines from ground level damage.

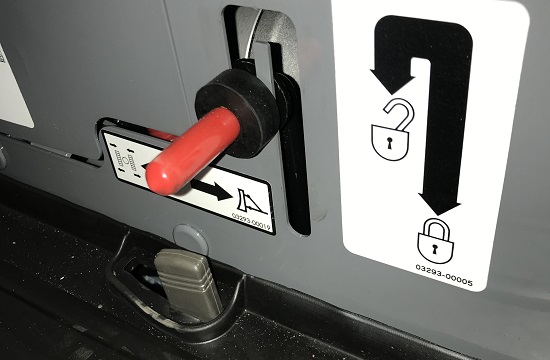

All Steel Construction
Protects components and ensures long term durability. Includes mechanical slew lock for added safety.
Operator’s Station
Delivers excellent visibility and operator comfort in a compact micro excavator. Boom mounted work lights assist in low light conditions.

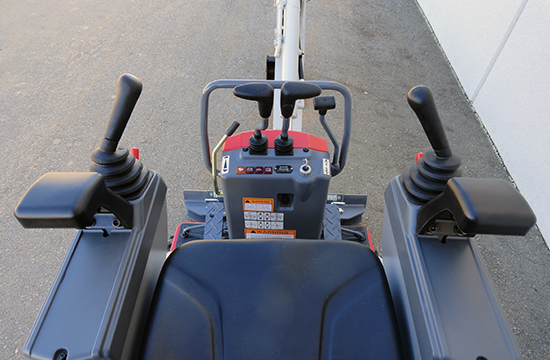

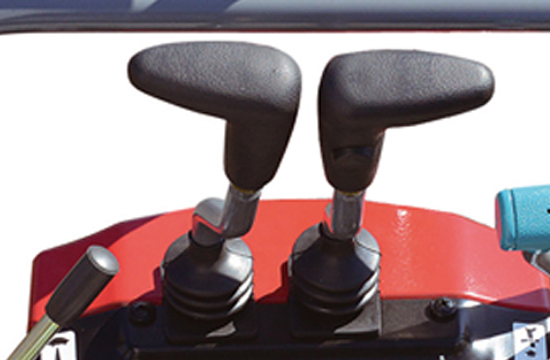

Smooth Pilot Controls
Joystick controls have an independent oil supply to deliver precise responsive controls, helps reduce operator fatigue.

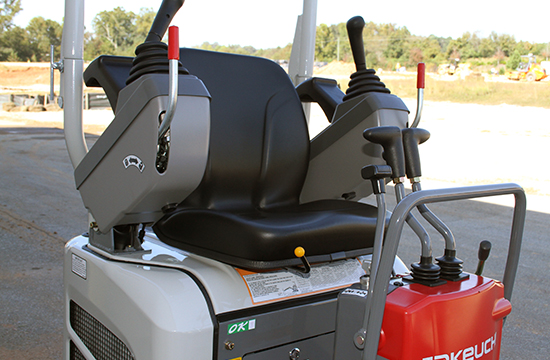

Supporting Wrist Rests
For improved comfort when operating continuously to minimize fatigue. Incorporating an onboard power socket.

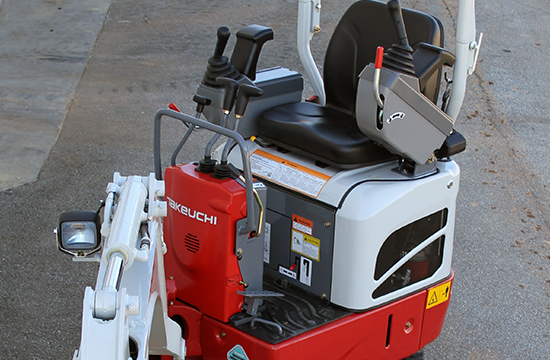

Dual Entry Points
Swing out control arms make it easier for the operator to enter or exit the machine from either side.

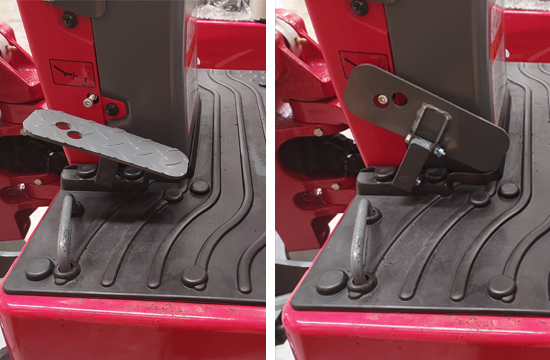

Value Added Features
Include fold-away pedal for breaker and offset, with detent functionality.

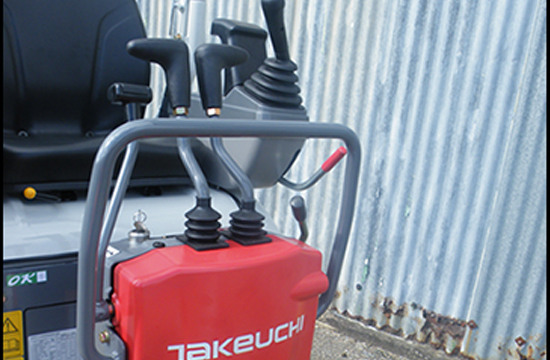

Convenient Grab Handle
Makes for easy entry / exit from both left and right side and provides travel lever protection

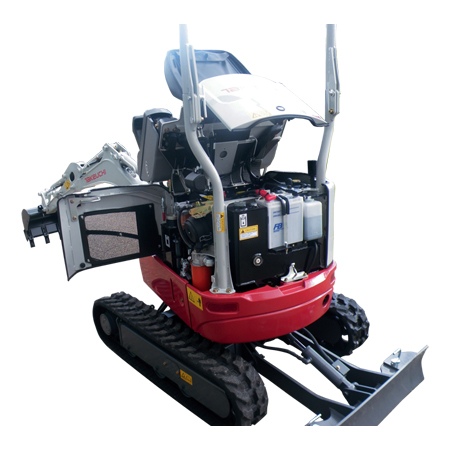

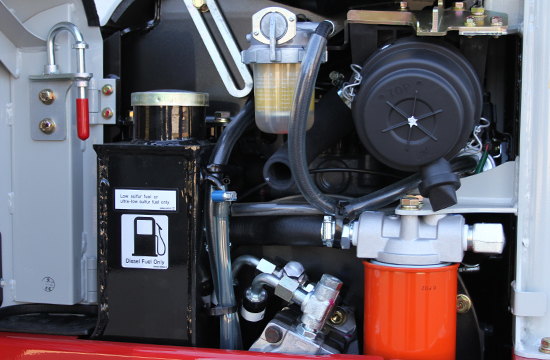

Side Access Panel
Houses dual element air cleaner, fuel filter with shut-off, hydraulic filter, and fuel tank with sight gauge with self-bleed for easy restart if the micro runs out of fuel.

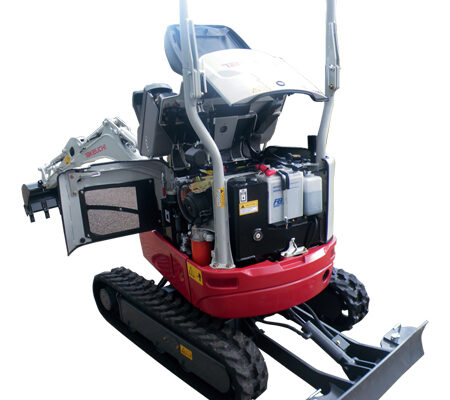

Unmatched Serviceability
All key service points are lockable and can be inspected quickly and easily. Grouped and centralised cluster filter points for short service downtime.

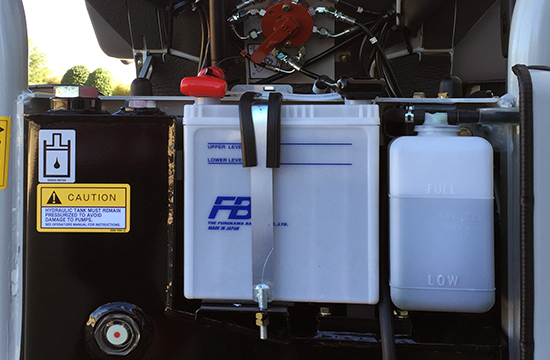

Rear Service Access
Allows the operator to easily inspect the hydraulic oil, coolant level, battery, electrical components and fuses.

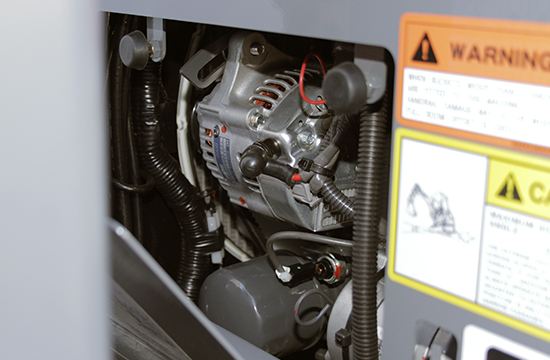

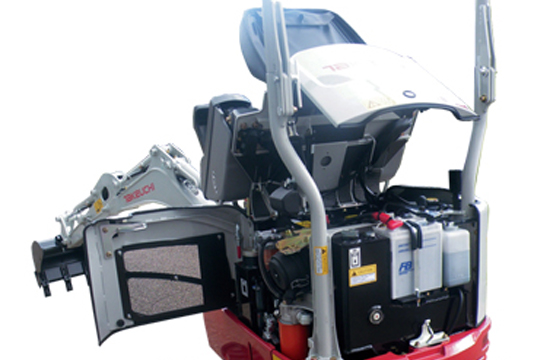

Front Compartment
Wide access to the alternator, starter motor and fan belt, as well as engine oil filter and engine oil dipstick for quick daily operator checks.

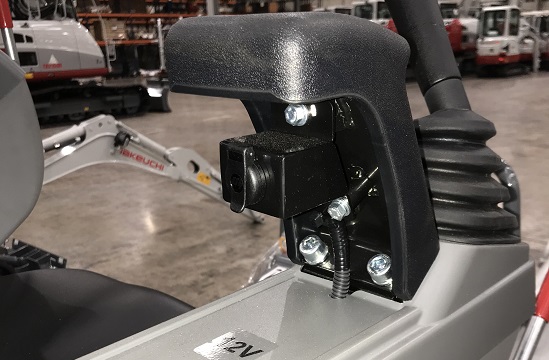

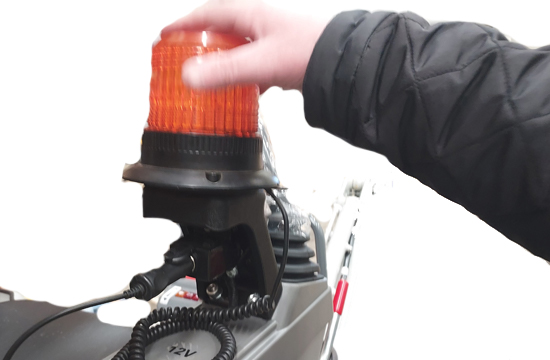

Maximum On-site Safety
12V easy access power socket for ancillary equipment, beacons etc.

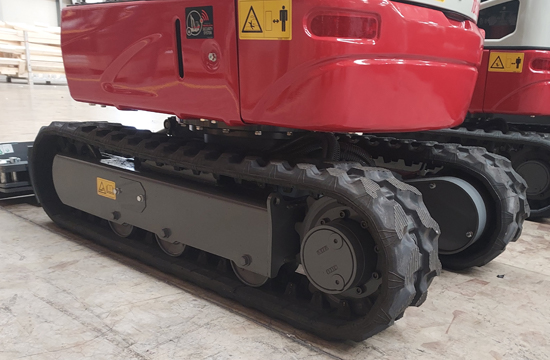

Strong Track Frame
Maintenance free double flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.
