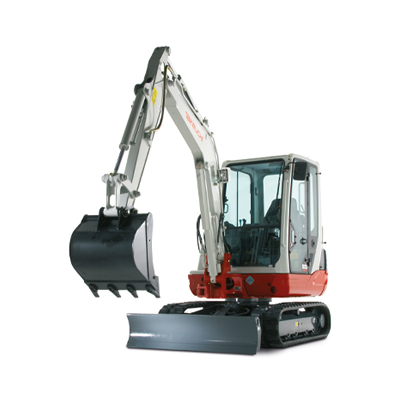

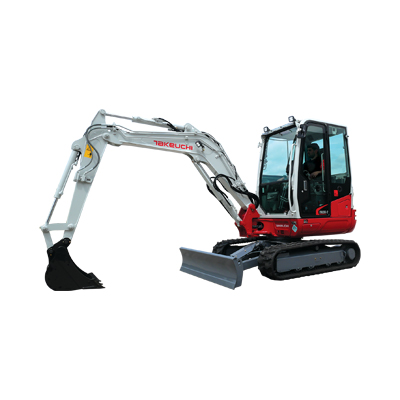

TB235-2 Compact Excavator | 3.5 Tonne

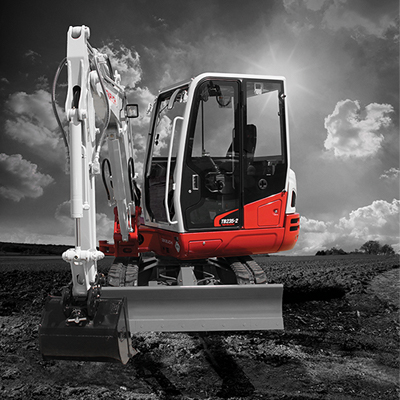

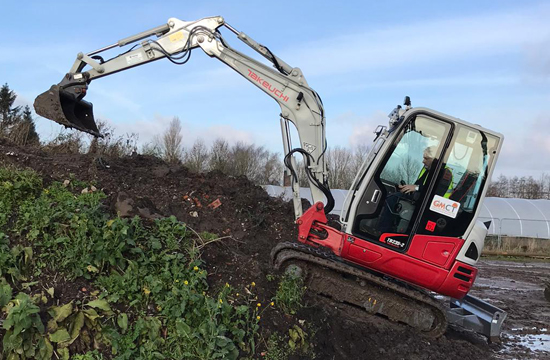

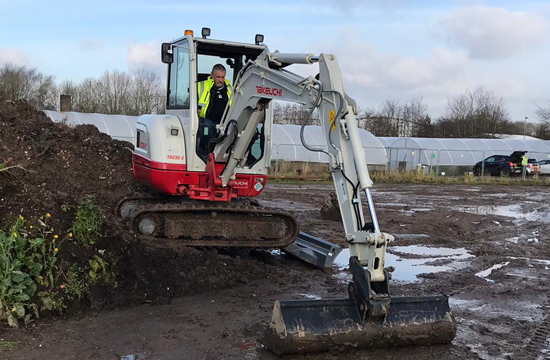

The TB235-2 compact excavator has an excellent working range for utility work, landscaping and construction. The TB235-2 is a well-appointed excavator that delivers the power and performance you expect from Takeuchi.
Product Details
Features
| OPERATOR'S STATION |
|---|
| Cab (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Large Interactive Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Adjustable Arm Rests and Drinks Holder |
| Air Con (optional) |
| Skylight with Sunshade/ Rain Guard |
| In Cab MW-FM/ MP3 Radio/ USB/Bluetooth |
| Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Cab Mirror - 3 Blindspot Mirrors |
| Multi Vent Heater / De-mister |
| Full Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal / External Ancillary Power Sockets - 12V |
| Switched Roof Beacon Power Socket - 12V |
| LED Workzone Lighting |
| Travel Alarm |
| Emergency Engine Shut-down Switch |
| Electrical Refuelling Pump |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) - Optional |
| ENGINE |
| Stage V Ready < 19kW - Low Emission |
| Engine Preheat |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap |
| Dual Element Air Filter |
| Automatic Idle |
| Working Modes: Standard, ECO and High Altitude |
| Service Interval - 250 hours |
| HYDRAULIC & WORKING EQUIPMENT |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom and Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| 1/2-Way Flow Selector Valve |
| Multiple Attachment Presets |
| Primary Auxiliary 1& 2-way Operation with Isolation Valves |
| Auxiliary Flow Adjustable via VDU |
| Proportional Auxiliary Controls with Detent |
| 3rd Aux Pre-piped with Hitch Pipework, 2nd and 4th Aux Optional |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Heavy Duty Dozer Blade with Float |
| Automatic Load Sensing 2 Speed Travel |
| Maintenance-free Sealed Bearing Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Dozer Cylinder Protection Guard |
| Ground Level Hose Spiral Protection |
| Tie Down Anchor Points |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 3TNV88 |
| Rated Output (kW)/RPM | 18.2/2400 |
| Maximum Torque (Nm) | 92.2 |
| Cylinders | 3 |
| Displacement (cc) | 1642 |
| Electrical System | 12volts 68amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 3465 |
| Overall Length for transport (mm) | 4900 |
| Width (mm) | 1580 |
| Height (mm) | 2495/2510 |
| Dozer Blade (W x H) (mm) | 1580 x 395 |
| Ground Clearance (mm) | 295 |
| Min Front Swing Radius (mm) | 2005 |
| Slew Radius (mm) | 1330 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 210 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 60 |
| 1st Aux Max Pressure (bar) | 210 |
| 2nd Aux Max Flow (l/min) | 22 |
| 2nd Aux Max Pressure (bar) | 200 |
| Standard Aux | 1st & 3rd |
| Optional Aux | 2nd & 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 9.3 |
| Slew Motor | Constant Volume Piston Motor |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 300 |
| Ground Contact Length (mm) | 1645 |
| Ground Pressure (kpa) | 31.4 |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 68 |
| Fuel Tank (l) | 46 |
| Engine Lubrication (l) | 4.7 |
| Cooling System (l) | 4 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 93 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB102-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 3245 |
| Max Dump Height (mm) | 3595 |
| Max Reach at Ground Level (mm) | 5130 |
| Max Vertical Digging Depth (mm) | 2495 |
| Max Bucket Digging Force (kN) | 27.1 |
| Max Arm Digging Force (kN) | 17.3 |
| Travel Speed (km/h) | 2.8-4.2 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 3465 |
| Overall Length for transport (mm) | 4900 |
| Width (mm) | 1580 |
| Height (mm) | 2495/2510 |
| Ground Clearance (mm) | 295 |
| Dozer Blade (W x H) (mm) | 1580 x 395 |
| Min Front Swing Radius (mm) | 2005 |
| Slew Radius (mm) | 1330 |
| Boom Swing Angle (L/R) | 70°/55° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
Compact Design
The TB235-2 design features a rounded body for improved visibility and functionality, and the conventional tail swing with reduced overhang provides outstanding stability.
Stage V Ready <19kW
For maximum efficiency and power, meeting low emission regulations, the TB235-2 does not require any exhaust after-treatment systems.

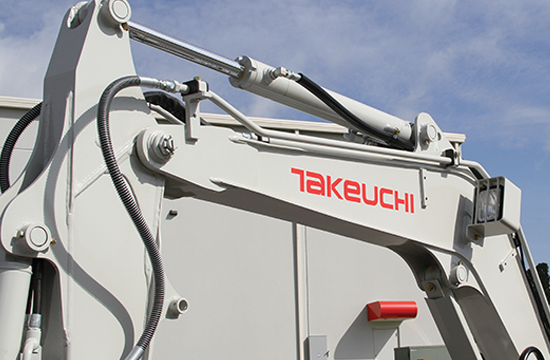

Power to Perform
Takeuchi’s powerful arm and bucket breakout forces provide an outstanding blend of performance, speed, power, and versatility.

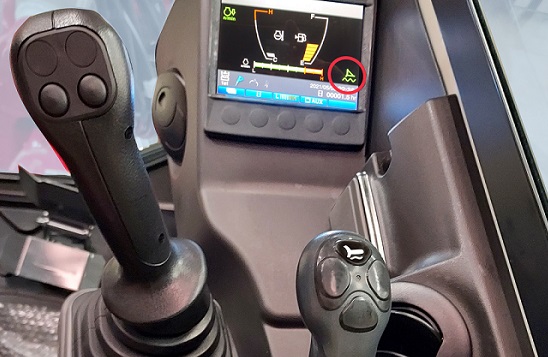

Switch Activated Blade Float
Switch activated blade float now fitted as standard to maximize ground finishing on site.

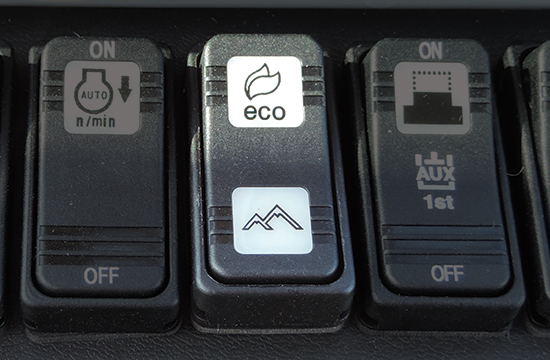

Pick Your Mode
Power, ECO and High-Altitude modes allow the operator to choose the operating mode best suited to the application.
Hi-Spec Auto Functions
The TB235-2 offers auto idle, auto detent and jog-dial throttle – all features only usually found on larger models

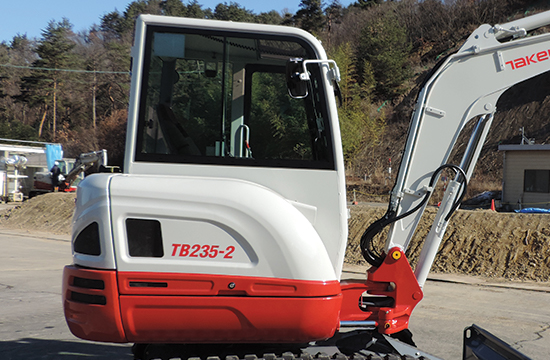

All Steel Construction
100% steel helps protect components and ensures long term durability.

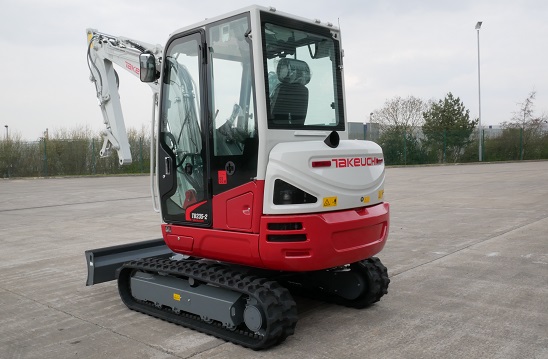

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.
Hitch Prepiped as Standard
The TB235-2 is fitted with pre-piped hitch pipework as standard. Auxiliary isolation valves for easier attachment installation.

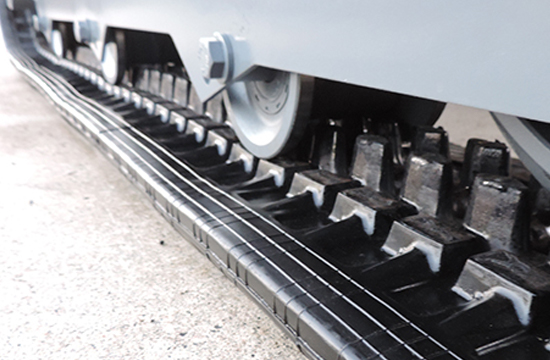

Strong Track Frame
Maintenance free triple flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.
Smooth Operation
Pilot controls combine with cushioned boom and swing cylinders help reduce shock and vibration and add to smoother operation.
Added Protection
Boom and blade cylinder protection guard. Exposed ground level hydraulic hoses are spiral steel wrapped for added protection.

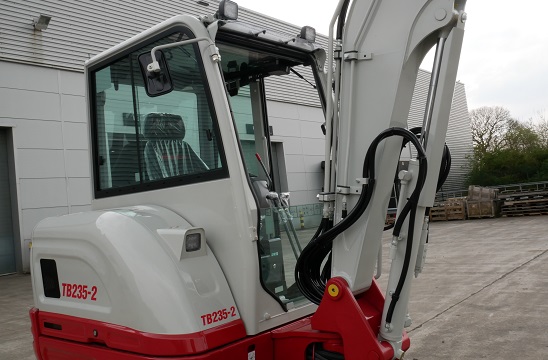

Large Comfortable Cab
The operator station is well appointed and spacious for outstanding comfort, offering the equivalent cab space of larger sized excavators.

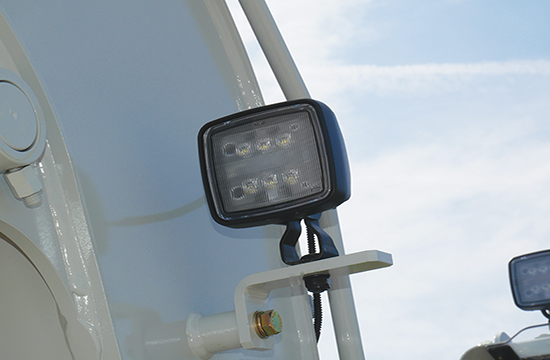

LED Lighting
New style forward facing work-zone LED lighting offers enhanced visibility on site.
Comfort and Convenience
The cab is well appointed for outstanding comfort. Excellent in-cab foot and leg room, fully supported foot travel controls alongside foot rests and offset function pedal.

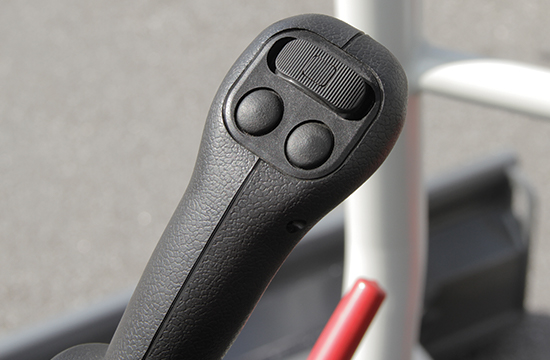

Pilot Joystick Controls
Deliver precise responsive smooth control. Low effort joystick controls reduce operator fatigue with adjustable arm rests for a comfortable all-day operating position.
Stay in Your Seat
Easy to read illuminated VDU with Attachment Functionality; preset and adjustable auxiliary flows from the comfort of the operator seat.
High Back Suspension Seat
Provides weight adjustment along with forward/reverse positioning.
Air con is available as an option on the TB235-2.

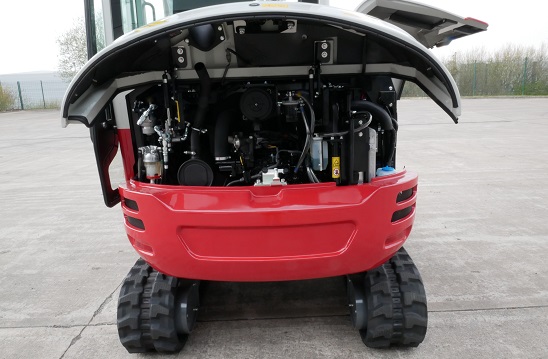

Rear Engine Access
Provides convenient access for daily checks. Clustered key service check points and centrally located filter positioning for speedy servicing and less downtime.

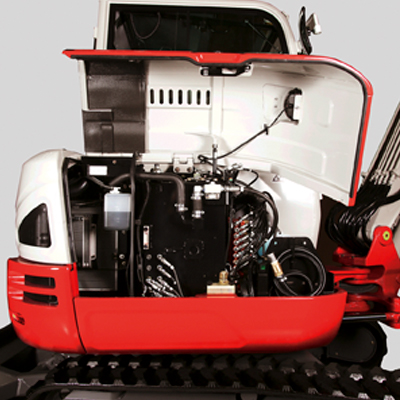

Easy to Service
The most reliable and service friendly excavator. The service access hood provides outstanding access to the control valve, hydraulic lines and hydraulic tank.
Lockable Fuel Fill
Convenient and secure. A remote gauge and auto refuelling pump for quick refuelling and self-bleed system for easy restarts if the machine runs out of fuel.
Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers.
On-board Power
Internal 12V and USB power sockets and switch activated external roof mounted beacon socket for site ready compliance.

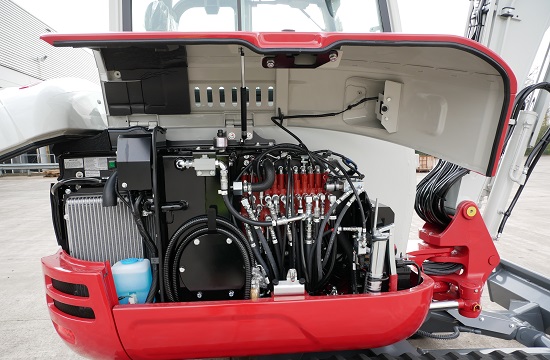

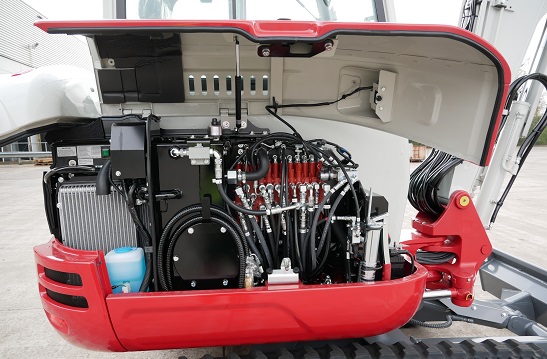

Maximum Access
Full 270 degrees of service access, the large wide opening covers are hinged and lockable, and accessed without any tools required.
