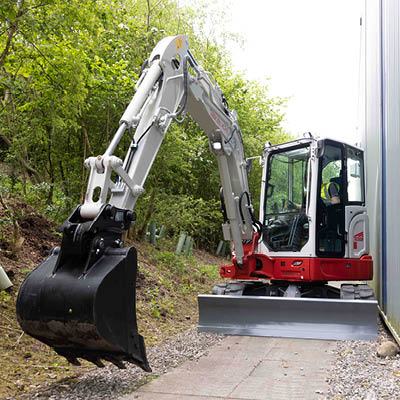

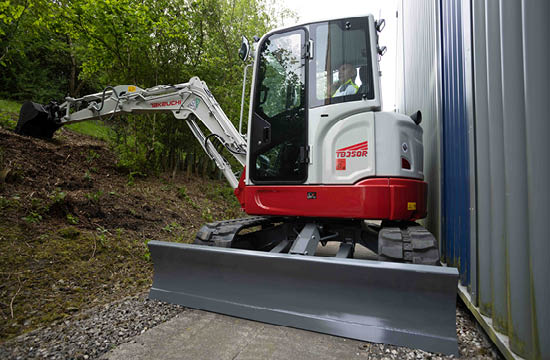

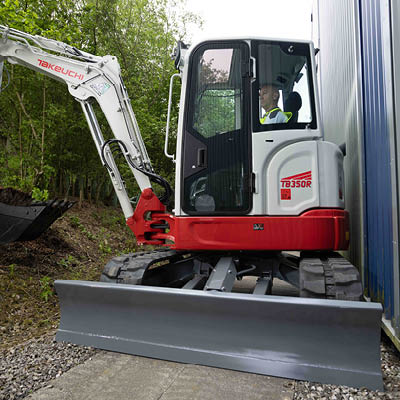

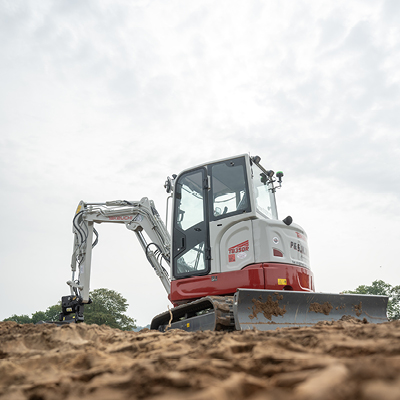

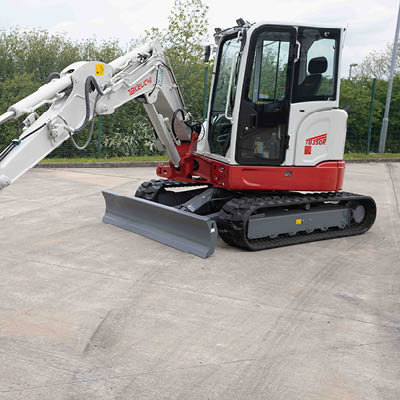

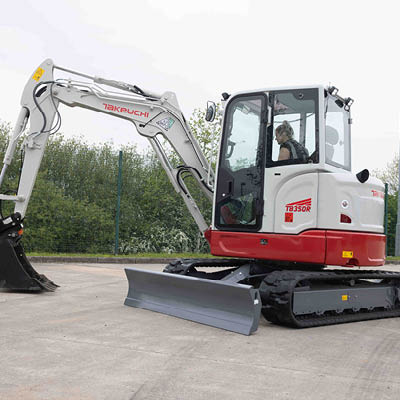

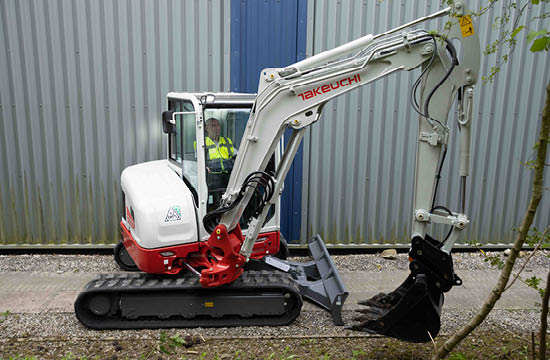

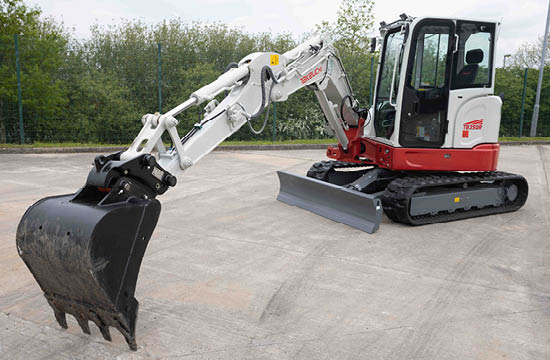

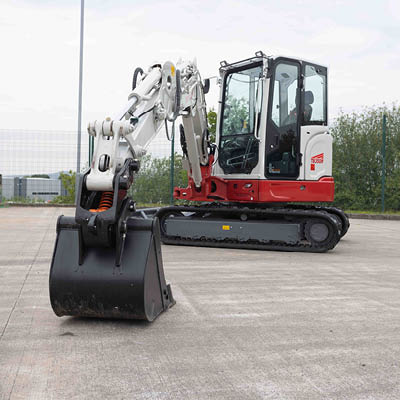

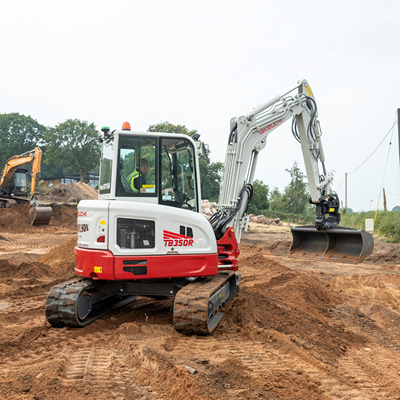

TB350R Compact Excavator | 5 Tonne

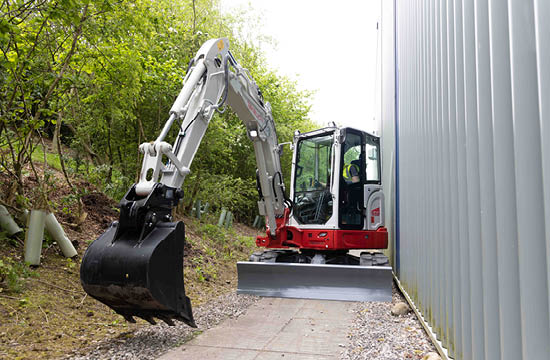

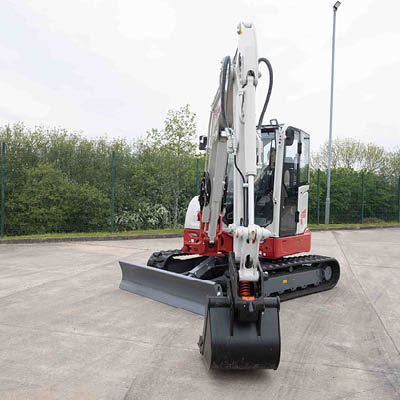

From the New 3-Series Takeuchi Excavator Range, the TB350R compact Excavator offers exceptional short tail performance. Packed full of impressive features that come as standard with the latest Takeuchi automotive styled interior for maximum comfortable control.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS / TOPS / OPG) |
| Short Wrap Around Counterweight |
| Large Interactive Touchscreen Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Tool Free Adjustable Arm Rests and Drinks Holder |
| Air Con / Climate Control |
| Skylight with Sunshade/ Rain Guard |
| In Cab - DAB / AM / FM / USB / Bluetooth |
| Gas Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Multi Vent Heater / De-mister |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Multi-Switch Control Panel / Jog Dial Function Control |
| Sealed Rocker Switches |
| Switched Roof Beacon Power Socket - 12V |
| Full LED Workzone Lighting Front / Rear |
| Travel Alarm |
| Emergency Engine Shut-down Switch |
| Removable Electrical Refuelling Pump |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) |
| ENGINE |
| Stage V Ready - DPF - Low Emissions |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| High Capacity Radiator |
| Automatic Idle |
| Working Modes: Eco |
| SERVICE INTERVAL - 500 |
| HYDRAULIC & WORKING EQUIPMENT |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom, Arm, and Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| Auxiliary Flow Adjustable from VDU |
| Multiple Attachment Presets - password secure |
| Display Activated Auto-Tank |
| Primary Auxiliary 1&2-way Operation with Isolation Valves |
| Proportional Auxiliary Controls with Detent |
| 1+3 Aux Standard, 3rd Aux Pre-piped with Hitch pipework, 2nd Optional |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Heavy Duty Dozer Blade with switch activated blade float |
| Maintenance-free Sealed Bearing Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Ground Level Hose Spiral Protection |
| Dozer Cylinder Protection Guard |
| Tie Down Anchor Points |
| Steel Tracks - Optional |
Specifications
| ENGINE | |
|---|---|
| Make | KUBOTA |
| Model | V2607-CR-E5B |
| Rated Output (kW)/RPM | 32.4 / 2000 |
| Maximum Torque (Nm) | 180.1 |
| Cylinders | 4 |
| Displacement (cc) | 2615 |
| Electrical System | 12 V 72 amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 5206 |
| Overall Length for transport (mm) | 5390 |
| Width (mm) | 2000 |
| Height (mm) | 2565 |
| Dozer Blade (W x H) (mm) | 2000 x 430 |
| Ground Clearance (mm) | 335 |
| Min Front Swing Radius (mm) | 2535 |
| Slew Radius (mm) | 1075 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 240 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 93 |
| 1st Aux Max Pressure (bar) | 206 |
| 2nd Aux Max Flow (l/min) | 40 |
| 2nd Aux Max Pressure (bar) | 206 |
| Standard Aux | 1st 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 8.9 |
| Slew Motor | Axial Piston |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary Epicyclic Gear |
| Traction Brake | Wet Friction Plate |
| Track Width (mm) | 400 |
| Ground Contact Length (mm) | 1975 |
| Ground Pressure (kpa) | 28.9 |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 85 |
| Fuel Tank (l) | 55.3 |
| Engine Lubrication (l) | 11.8 |
| Cooling System (l) | 10.0 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 97 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB302-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 3575 |
| Max Dump Height (mm) | 3945 |
| Max Reach at Ground Level (mm) | 5925 |
| Max Vertical Digging Depth (mm) | 2925 |
| Max Bucket Digging Force (kN) | 37.3 |
| Max Arm Digging Force (kN) | 22.4 |
| Travel Speed (km/h) | 2.8 / 5.0 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 5206 |
| Overall Length for transport (mm) | 5390 |
| Width (mm) | 2000 |
| Height (mm) | 2565 |
| Ground Clearance (mm) | 335 |
| Dozer Blade (W x H) (mm) | 2000 x 430 |
| Min Front Swing Radius (mm) | 2535 |
| Slew Radius (mm) | 1075 |
| Boom Swing Angle (L/R) | 71°/55° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
Designed for Success

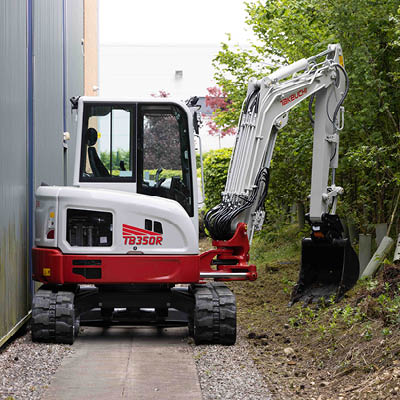

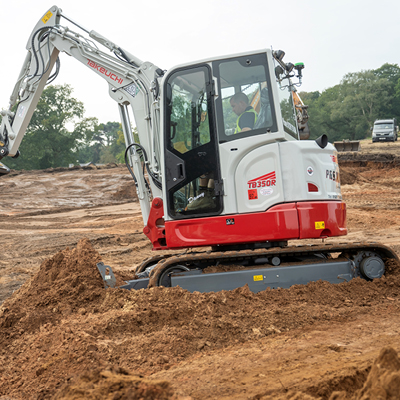

The TB350R design features a rounded stylish cab with maximum visibility and functionality. A compact yet powerful 5-tonne option.
Stage V Ready
Powered by a 29.1kW Yanmar 4 cylinder engine with DPF, to meet Stage V emission regulations.

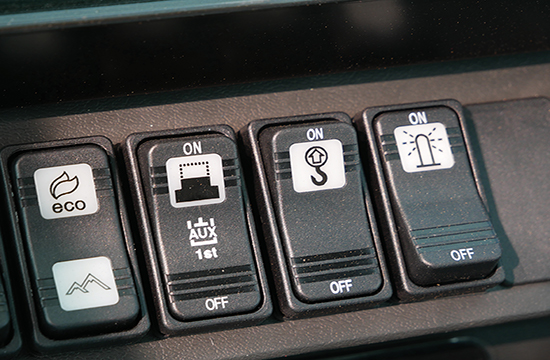

Pick Your Mode
The TB350R offers Eco and High-Altitude modes, operators can choose the operating mode best suited to the application.
Easy Controls
Ergonomic in-cab controls. The electronic throttle control makes it easy to set the to the desired position for operation. Switch activated float blade.
Environment Friendly
The TB350R equipped with DPF, auto idle, auto detent and jog-dial – All environmental features help minimise noise and emissions
Automatic Step-Down
Travel Motors
Provide torque on demand when pushing, climbing, or turning in high speed mode.
Strong and Robust

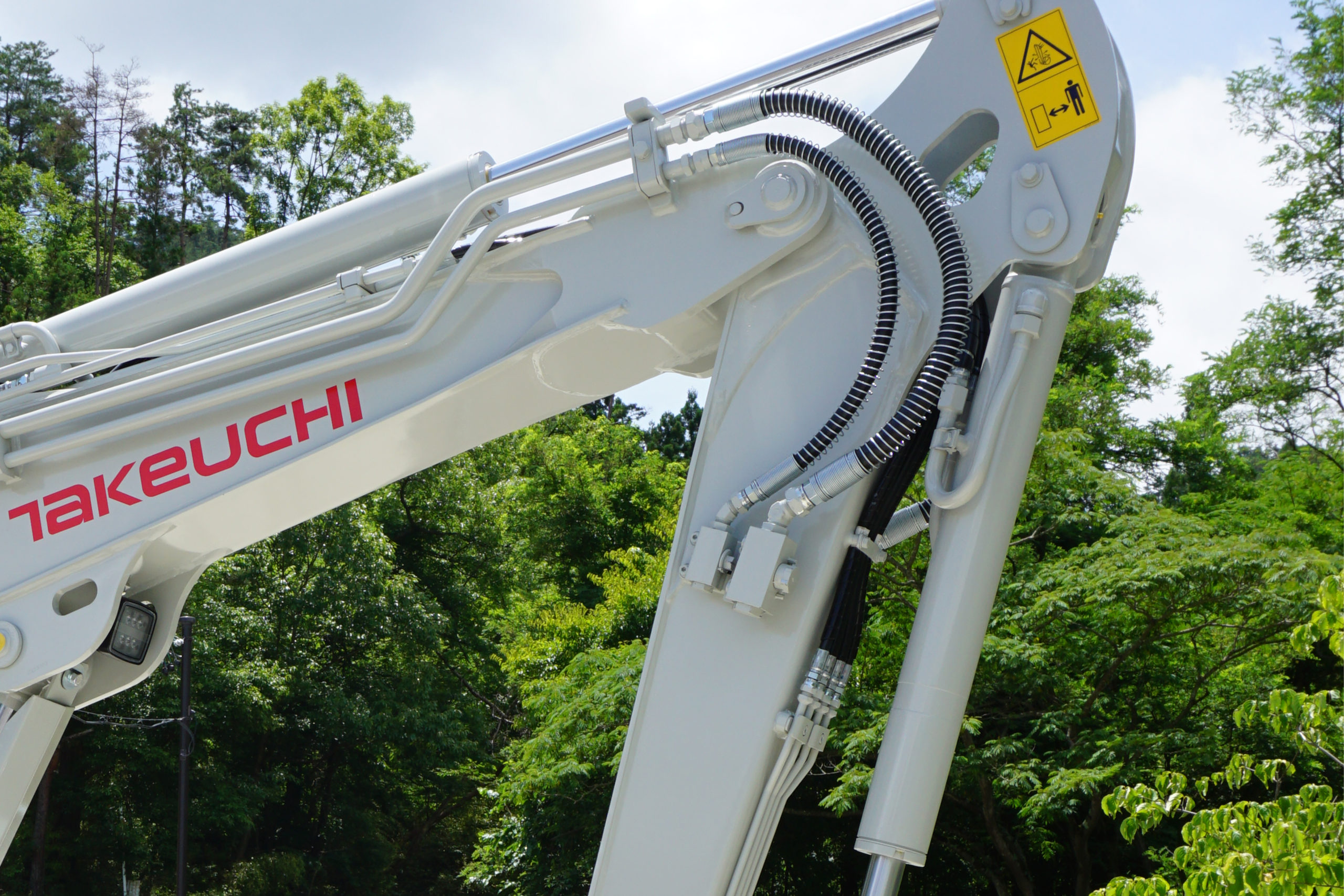

Well protected hydraulic hoses, cylinder guards and All steel construction protects components and ensures long term durability.

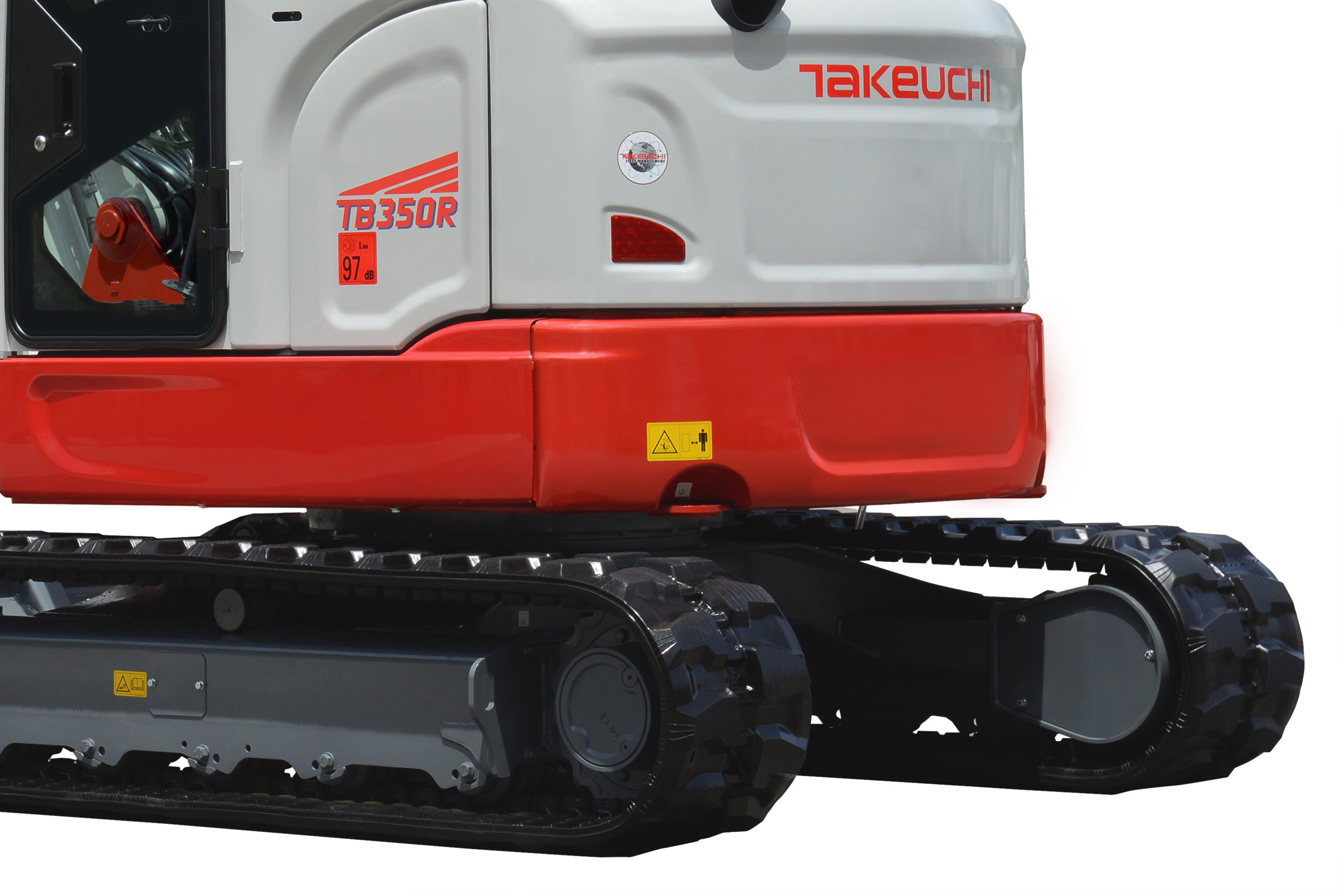

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.

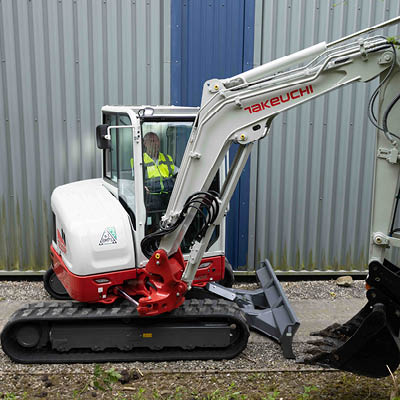

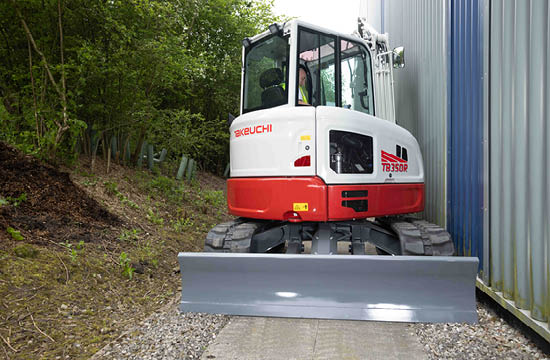

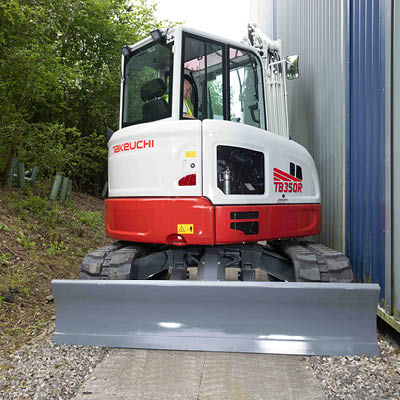

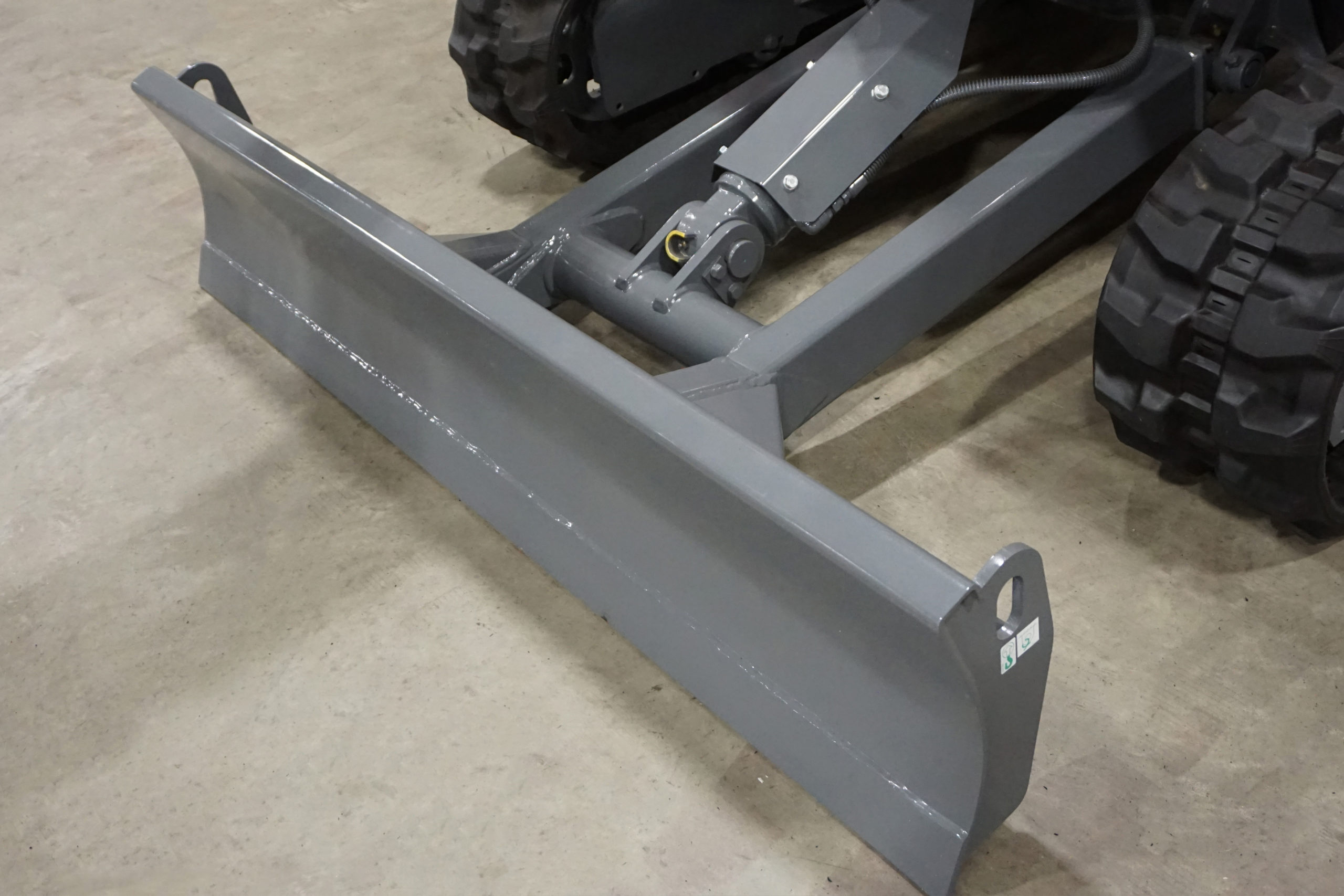

Heavy Duty Blade
Boom and blade cylinder protection guard. Exposed ground level hydraulic hoses are spiral steel wrapped for added protection..
Safe Operation

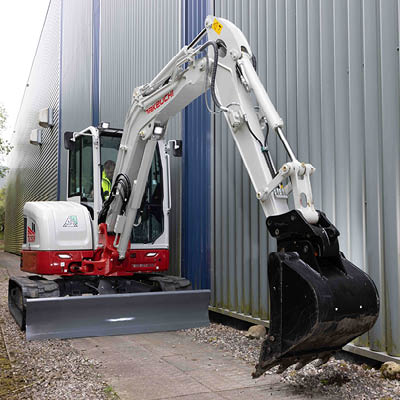

Boom and arm holding valves are factory fitted for added safety in the event of a hose burst failure. An audible warning lift alarm is standard for craning.

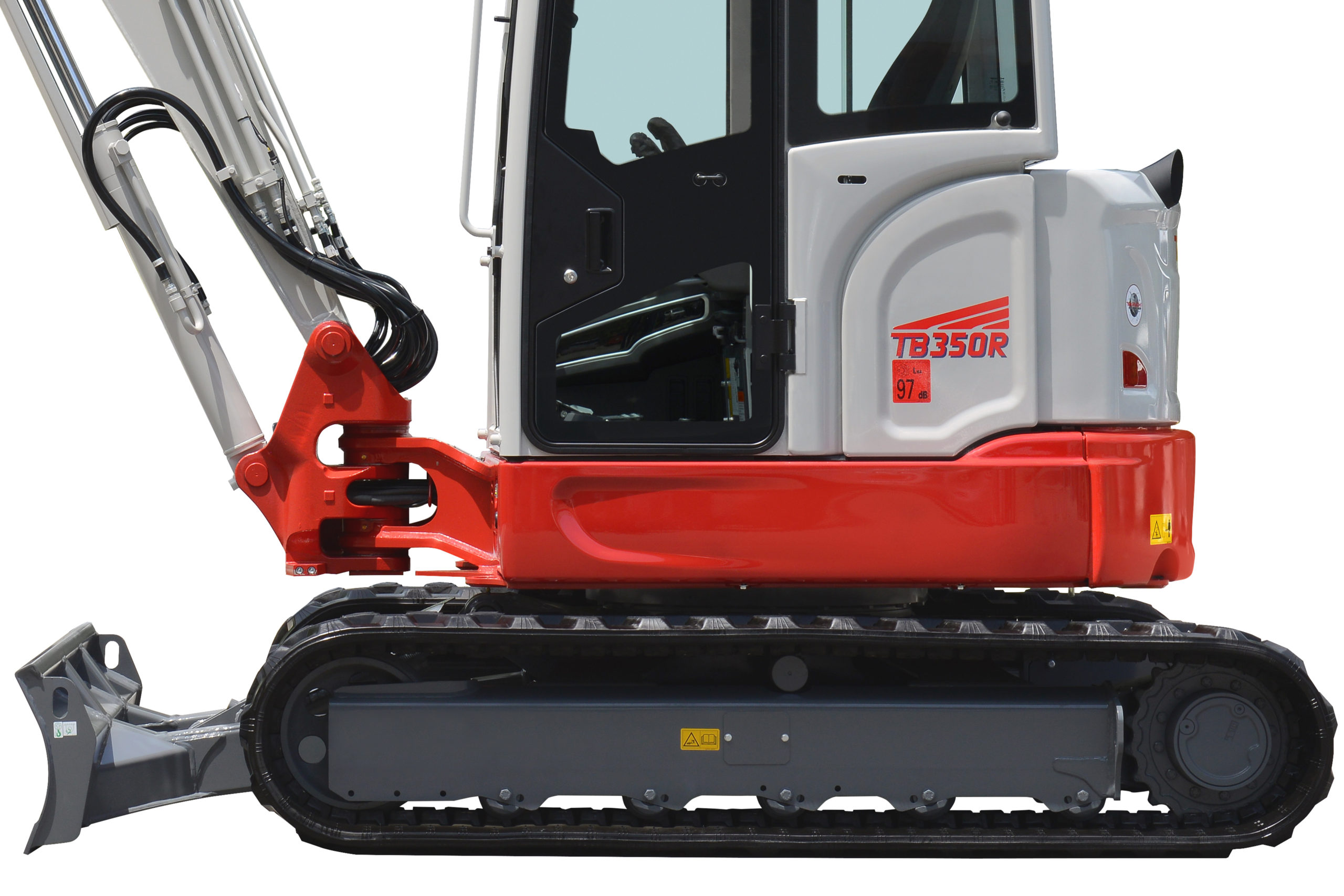

Sturdy Undercarriage
The upper roller maintains track alignment and helps shed debris.

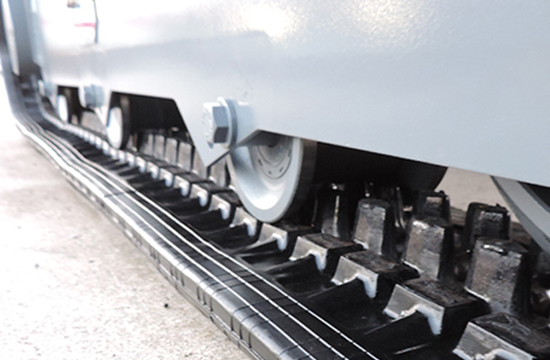

Strong Track Frame
Triple flanged rollers support the track in multiple positions improving machine stability and track retention.

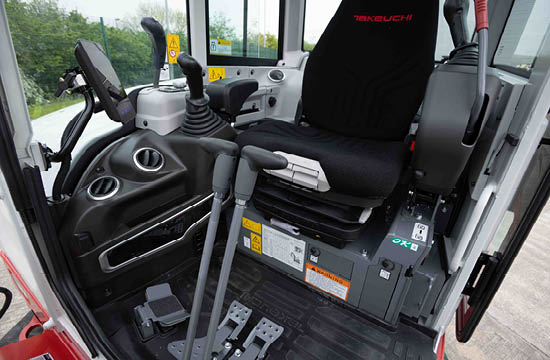

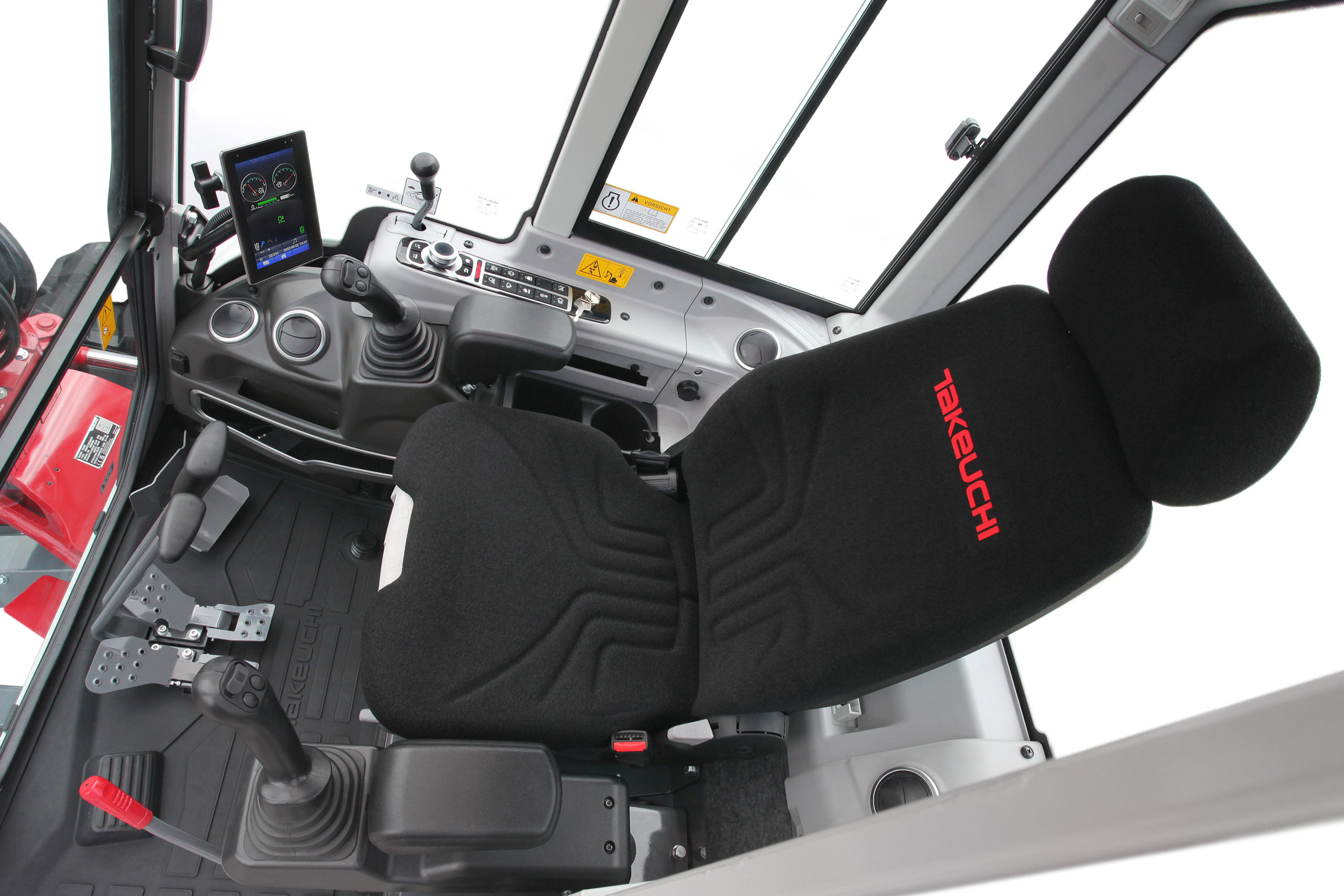

Spacious Styled Interior
The TB350R is designed for maximum operator all day comfort. Ergonomic functional work area for all day operating and excellent all round visibility.

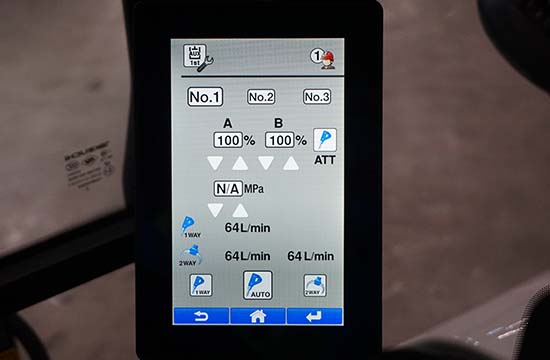

Interactive
Multi-Informational Display
Easy to read machine status in all light conditions highlights valuable machine data. In-cab easy to adjust auxiliary flow settings.
All Day Comfort Cab
All round adjustable deluxe high back suspension seat, radio and stero speakers along with MP3 and Bluetooth. Easy spacious access and comes with air-con climate control
Pilot Joystick Controls
Deliver precise responsive controls and help reduce operator fatigue, with a supporting adjustable arm-rest for comfortable all day operating.

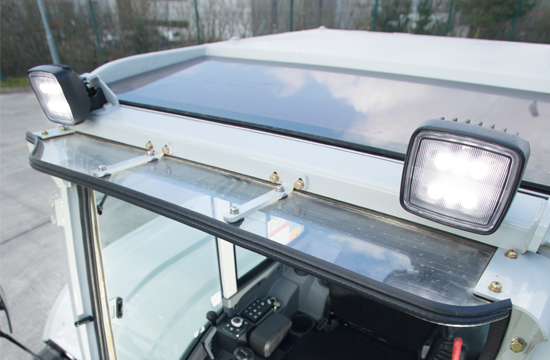

LED Lighting & Sunshade
New style wider beam LED workzone lightiing on roof and boom enhance visibility. The top glass sunshade reduces glare and improves visibility of any overhead obstacles e.g. power cables when truck loading.

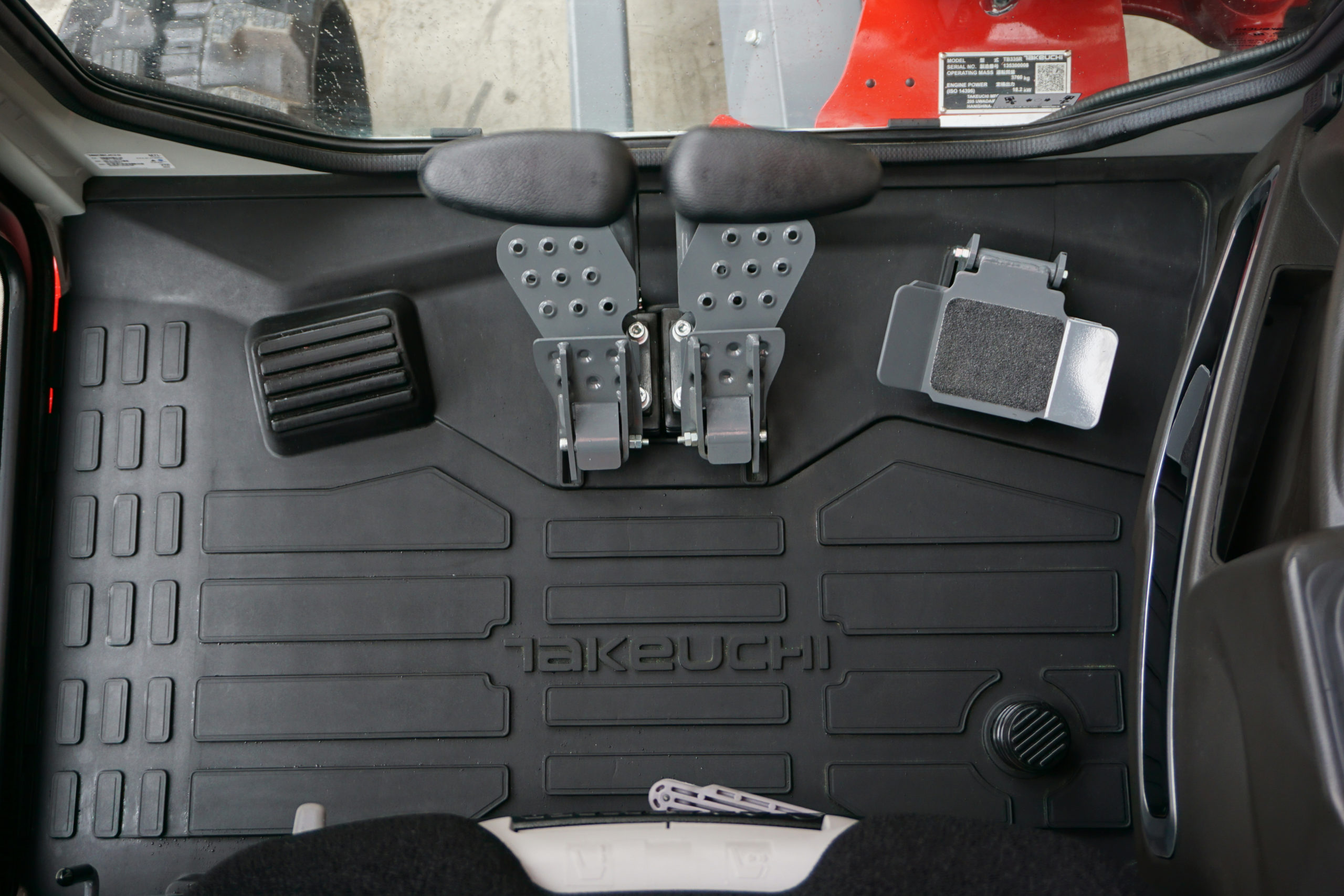

Large Travel Pedals
The cab is well appointed, for outstanding comfort. Excellent in-cab foot and leg room, fully supported foot travel controls alongside foot rests and offset function pedal.
Less Downtime

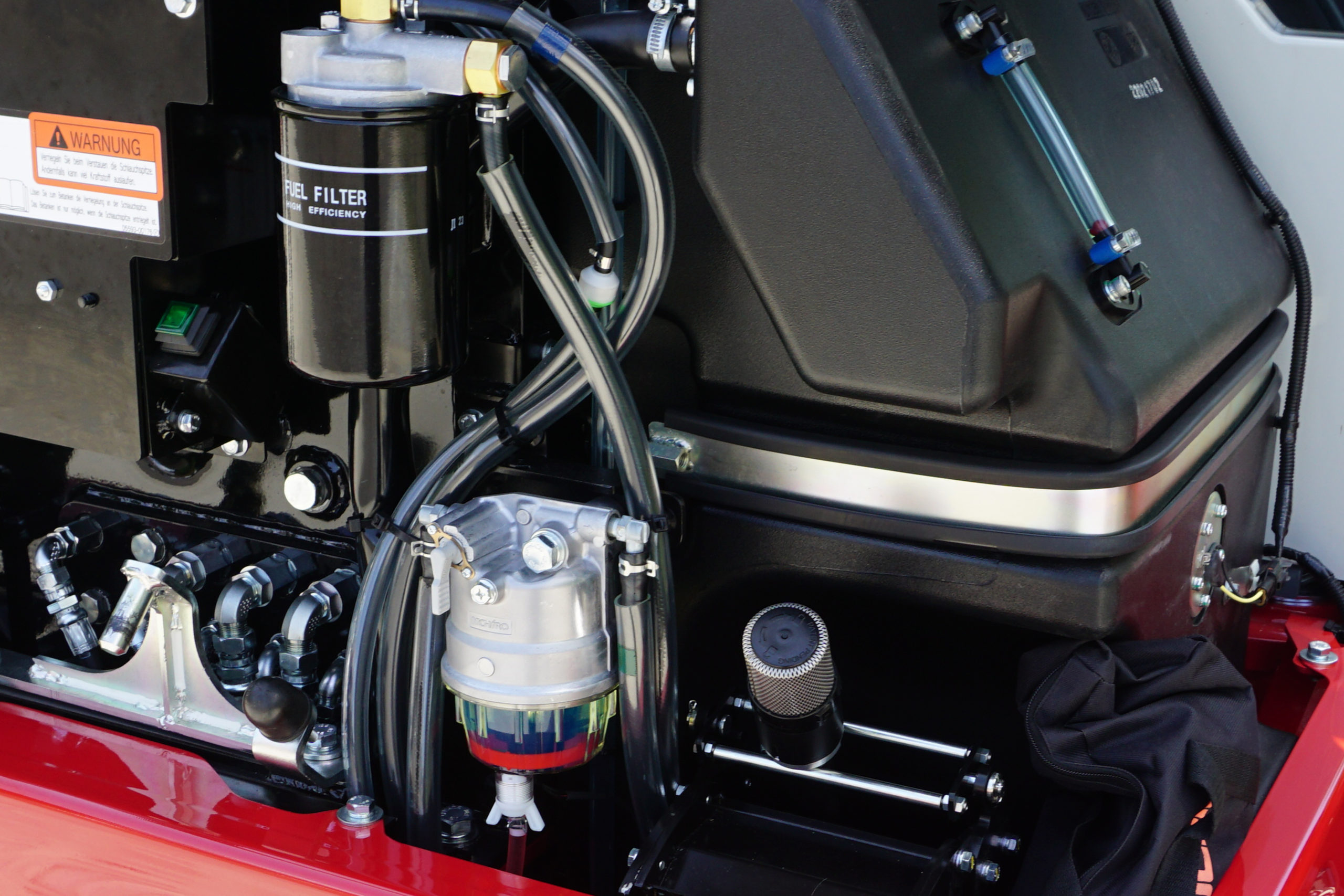

Convenient access to daily check and routine maintenance points. Clustered key service points. Centrally located filter positioning for fast servicing and less downtime.

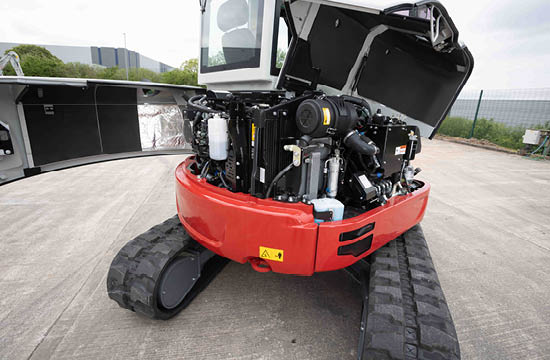

Maximum Access
The TB350R provides 270° machine service access. Easy access to the engine and hydraulic components. The large wide opening hinged service panels are all key lockable.
Heavy Duty Cooling System
The side by side radiator and hydraulic oil cooler has increased cooling capacity. Easy to inspect, clean and maintain.

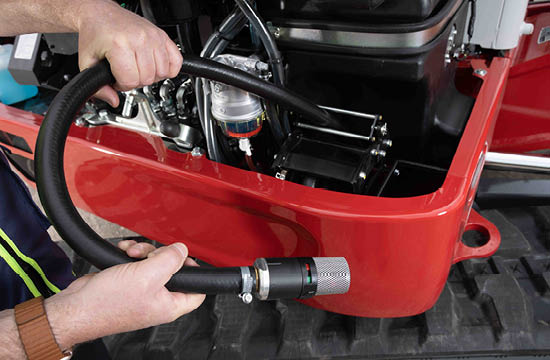

Convenient and Secure.
An electric refuelling pump provides fast fill-up with a retractable hose and cradle forsafe storage.
On-board Power
Internal 12V,USB power sockets and switch activated external roof mounted beacon socket for site ready compliance.
Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers
