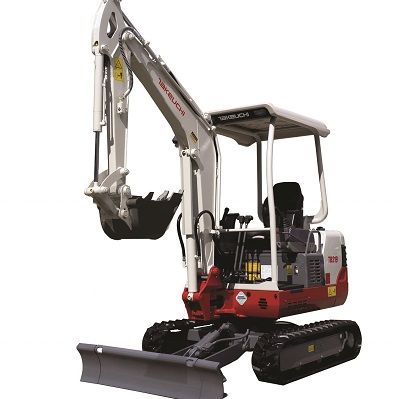

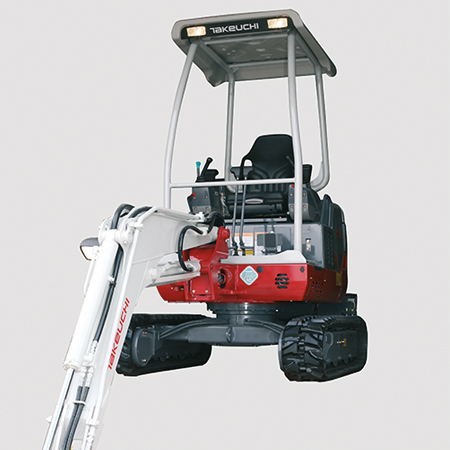

TB219 Compact Excavator | 1.9 Tonne
The TB219 Compact Excavator boasts an excellent blend of power and performance with a longer than average digging depth. It features a retractable undercarriage for greater versatility, a long dipper arm to maximise working range, and an optional cab for improved operator comfort.
Product Details
Features
| OPERATOR STATION |
|---|
| Canopy/Cab (ROPS / TOPS /FOPS) |
| Cast Iron Wrap Around Protective Counterweight |
| Multi Adjustable Seat |
| MW-FM/ MP3 Radio (cab only) |
| Canopy - Maximum Accessibility Both Left and Right Side |
| Lockable Grease Gun & Tool Bag Storage |
| Folding Foot Rests, Foot Controlled Offset & Auxiliary |
| ELECTRICAL |
| Internal / External Front of Cab Power Sockets - 12V |
| Roof Beacon Power Socket - 12V |
| Visual Indicator for Engine Preheat, High Speed, Water Temp, Hour Meter and Fuel Gauge |
| Travel Alarm |
| Work Lights - Canopy 2 Roof & 1 Boom / Rear Marker Lighting |
| TFM (Takeuchi Fleet Management) Optional |
| HYDRAULICS |
| Pilot Operated Joystick Controls |
| Cushioned Boom and Swing Cylinders |
| Boom Ram Guard |
| Automatic Slew Brake |
| Primary Auxiliary 1& 2-way Operation and Twin Isolation Valves |
| 1/2-Way Flow Selector Valve at Front of Machine |
| Tilt-Up Seat for Access to Hydraulics and Electrics |
| Steel Hydraulic Tank with Fluid Level Sight Gauge |
| 2nd Aux - Optional |
| UNDERCARRIAGE AND FRAME |
| Hydraulically Retractable Track Frame (980-1370mm) |
| Longer than Average Track Frame for Added Stability (1570mm) |
| Heavy Duty King Post / Pins / Bushes |
| 2-Speed Travel |
| Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Tie Down Points on Blade & Carriage |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Adjustable Dozer Blade with Quick-drop Pin-lock width Extension |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 3TNV70-NTB |
| Rated Output (kW)/RPM | 12.0/2500 |
| Maximum Torque (Nm) | 52.7 |
| Cylinders | 3 |
| Displacement (cc) | 854 |
| Electrical System | 12volts 40amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel: Cab/Canopy (kg) | 2000/ 1890 |
| Overall Length (mm) | 4050 |
| Width Cab/Canopy (mm) | 1030/980 |
| Height Cab/Canopy (mm) | 2360/ 2290 |
| Dozer Blade (W x H) (mm) | 980-1370 x 300 |
| Ground Clearance (mm) | 205 |
| Min Front Radius of Machine (mm) | 1330 |
| Slew Radius (mm) | 1140 |
| HYDRAULIC SYSTEM | |
| Pump Type | Variable x 2 + Gear x 2 |
| Main System Pressure (bar) | 210 |
| 1st Aux Max Flow (l/min) | 40 |
| 1st Aux Max Pressure (bar) | 210 |
| 2nd Aux Max Flow (l/min) | 11 |
| 2nd Aux Flow Pressure (bar) | 185 |
| Standard Aux | 1st |
| Optional Aux | 2nd |
| 3rd Aux | N/A |
| SWING SYSTEM | |
| Slew Speed (rpm) | 8.7 |
| Slew Motor | Trachoid Gear |
| Slew Brake | Wet Friction Disc |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 230 |
| Ground Contact Length (mm) | 1205 |
| Ground Pressure (kpa) | 33.1 |
| Maximum Gradeability | 15° |
| CAPACITIES | |
| Hydraulic System (l) | 35 |
| Fuel Tank (l) | 24 |
| Engine Lubrication (l) | 2.8 |
| Cooling System (l) | 3.7 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 93 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB72-S TKB72 |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 2520 |
| Max Dump Height (mm) | 2860/ 2985 |
| Max Reach at Ground Level (mm) | 4175 |
| Max Vertical Digging Depth (mm) | 2075 |
| Max Bucket Digging Force (kN) | 16 |
| Max Arm Digging Force (kN) | 9.78 |
| Travel Speed (km/h) | 2.4/ 4.0 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel: Cab/Canopy (kg) | 2000/ 1890 |
| Overall Length (mm) | 4050 |
| Width Cab/Canopy (mm) | 1030/980 |
| Height Cab/Canopy (mm) | 2360/ 2290 |
| Dozer Blade (W x H) (mm) | 980-1370 x 300 |
| Ground Clearance (mm) | 205 |
| Min Front Swing Radius (mm) | 1330 |
| Tail Swing Radius (mm) | 1140 |
| Boom Swing Angle (R/L) | 80°/ 50° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
Trust in Takeuchi for…
Compact and Convenient

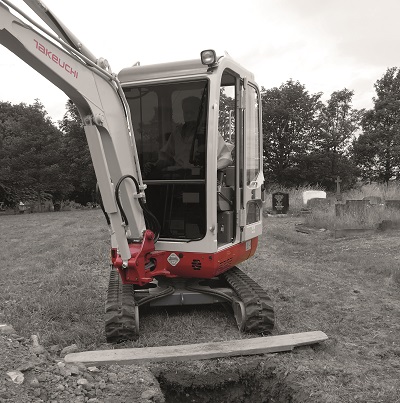

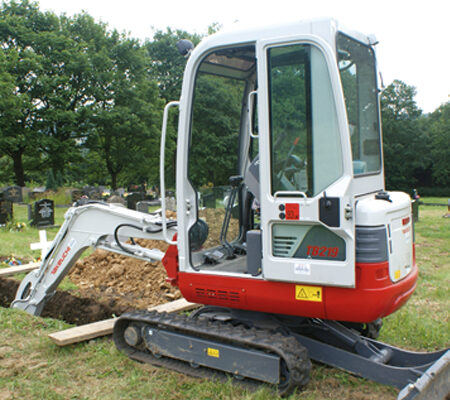

The TB219 is available as a cab or canopy. Compact in size it delivers excellent operating performance and balance for restricted job sites.

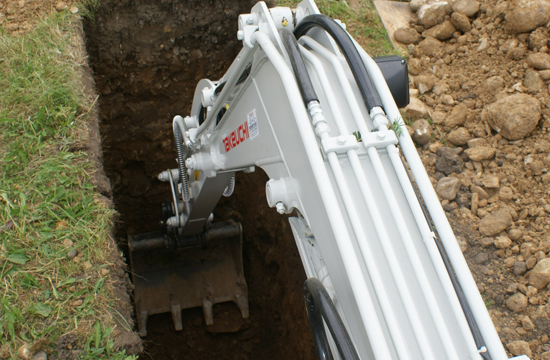

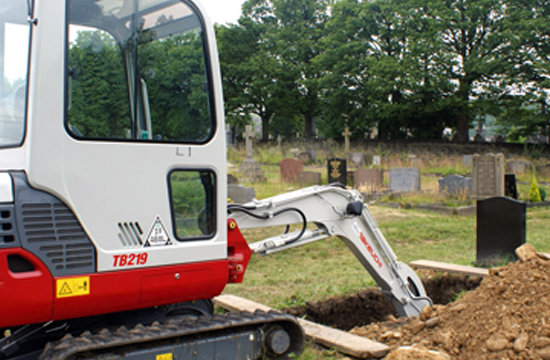

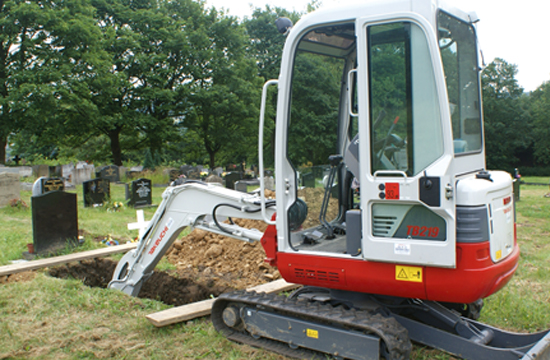

Maximum Dig Depth
The TB219 excavates to 2520mm providing additional dig depth compared to conventional compact excavators.

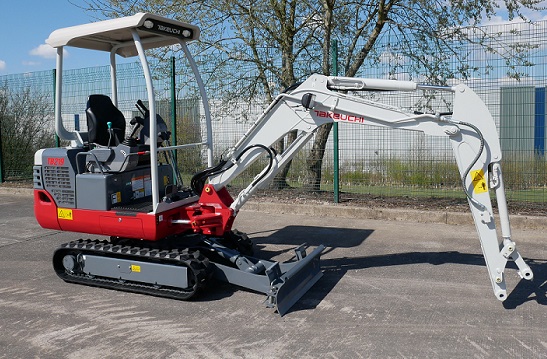

Excellent Reach
Delivers excellent reach for greater productivity. Maximum ground reach to 4175mm assisting operators where access is restricted.
Added Stability

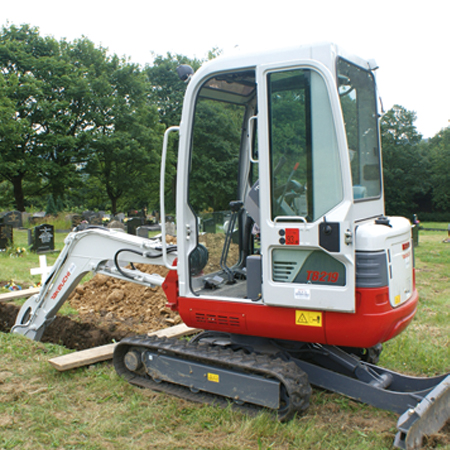

The extendable track frame and longer dozer blade adds significant stability when excavating deep.
Stage V Ready <19kW
For maximum efficiency and power, does not require any exhaust after-treatment systems
Bucket to Blade
Useful bucket-to-blade contact assists operators in final clear-up. The blade shape provides for more effective soil grading and finishing on site.

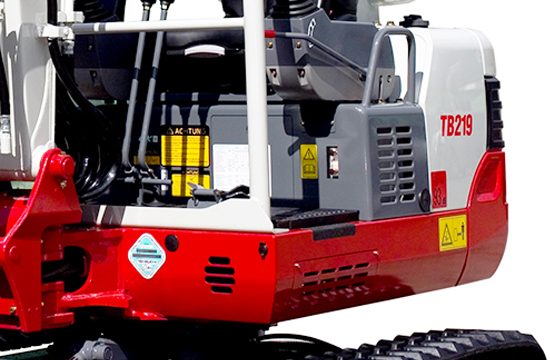

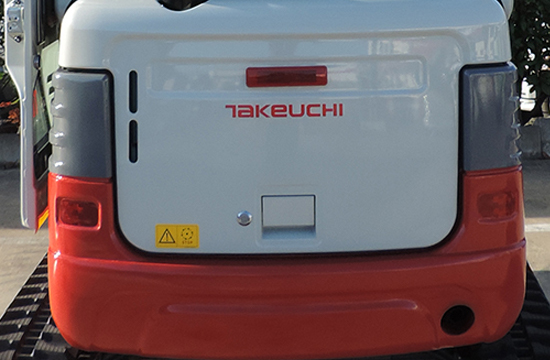

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.
Built to Last
Robust heavy duty king post, pins and bushes.

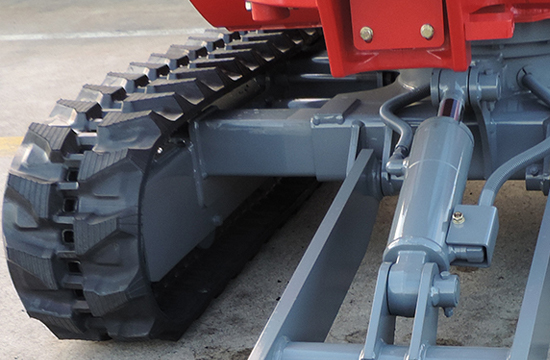

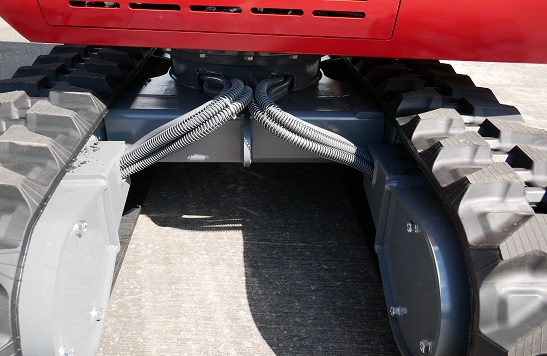

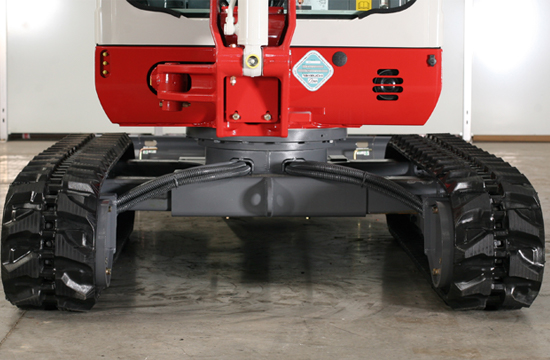

Undercarriage Protection
Added spiral wrapped pipework provides ground level protection for blade cylinder hydraulic lines.
All Steel Construction
Protects components and ensures long term durability
Triple Flange Track Rollers
Provide increased roller to rail contact improving track retention. and smoother travel.
Ground Clearance
Excellent ground clearance with well protected hydraulic components, sealed bearing track rollers.

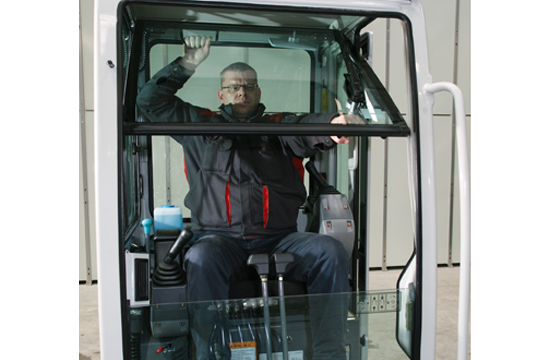

Roomy Operator Station
A roomy cab provides the operator comfort for long operating hours. Well positioned controls along with heater, MP3 socket and radio.

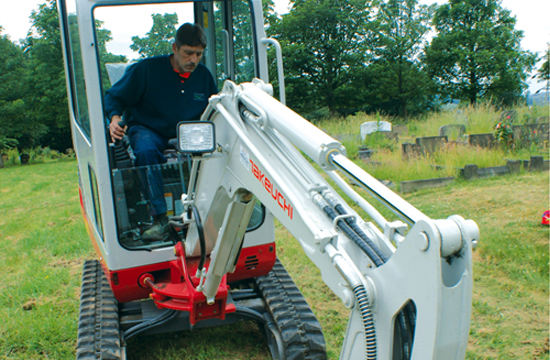

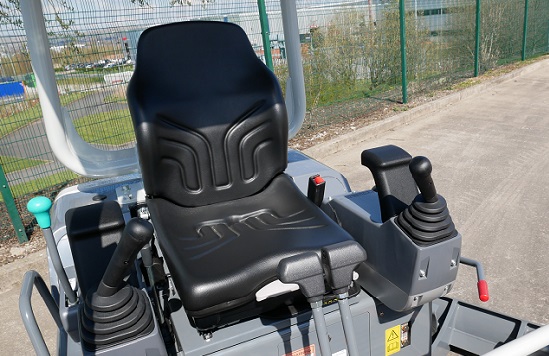

Comfortable Operator Station
Large seat and supporting wrist rests provide a comfortable operating position for the precision pilot controls and all day operating.

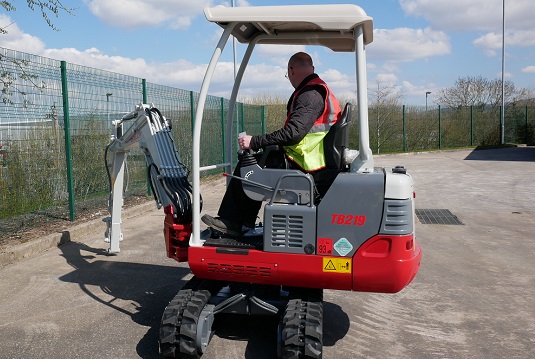

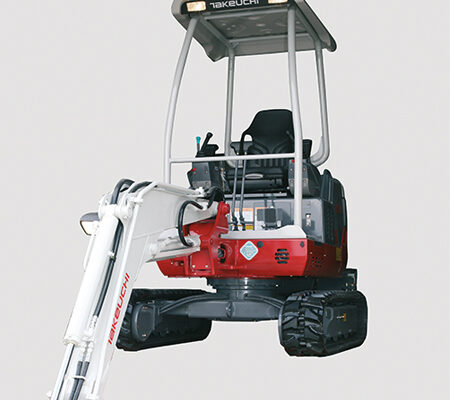

Versatile Canopy Option
The weather protected canopy provides a spacious roomy option, built with ROPS/TOPS/OPG.
Dual Sided Entry
The canopy TB219 offers dual sided entry for increased convenience and safety on site.

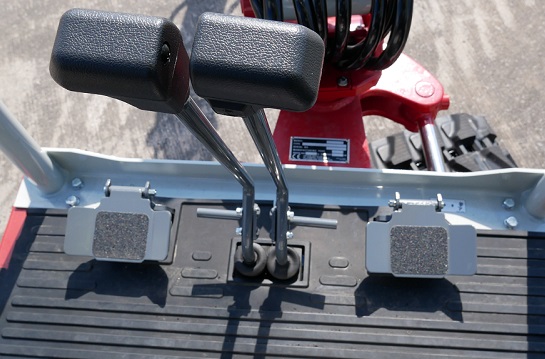

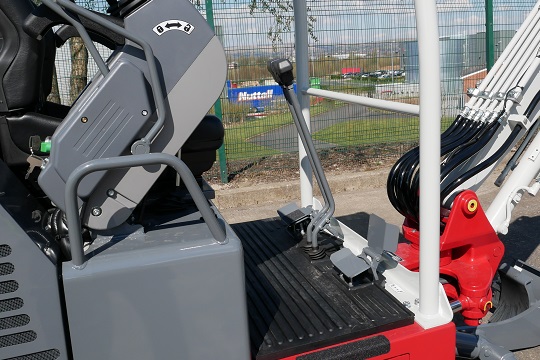

Excellent Foot Room
Excellent foot room on both cab and canopy complete with foot operated auxiliary and offset with fold-down foot rests.

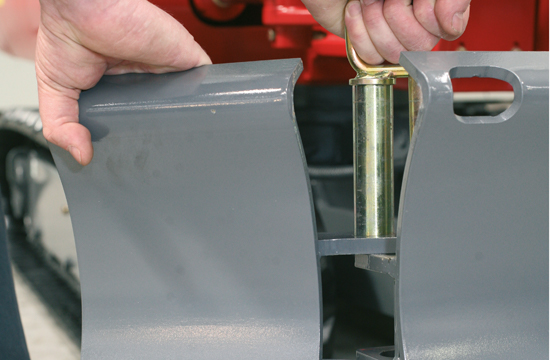

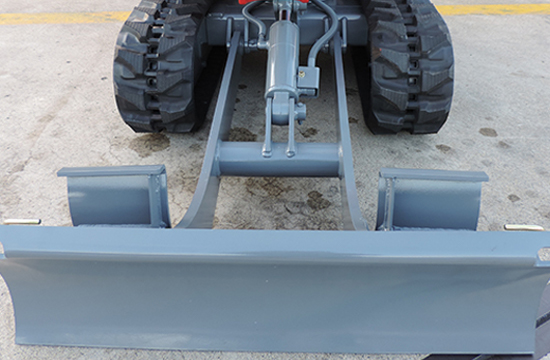

Easy Adjust Dozer
A simple pin device, to match the TB219’s extendable track width.

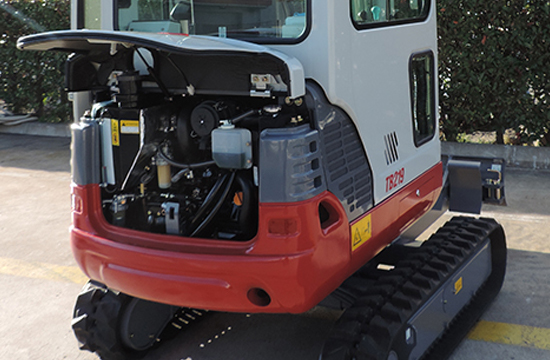

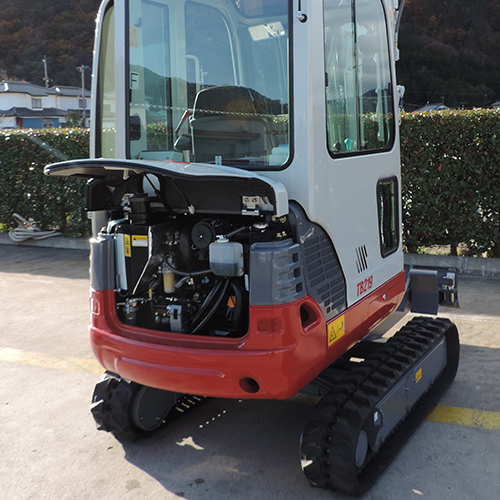

Maximum Service Access
Convenient access to daily checks and routine maintenance points. Centralised inspection points for quicker operator checks.

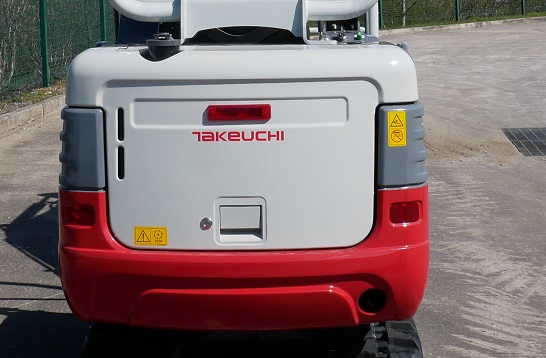

Lockable Fuel Fill
Is convenient and secure. A remote gauge is also provided for assistance when refuelling. A self-bleed system to provide easier restarts if the machine runs out of fuel

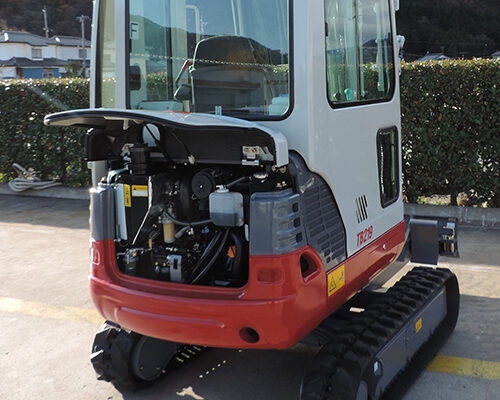

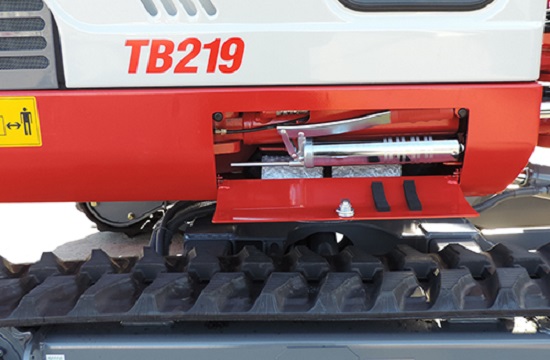

Easy Servicing
Grease filled easy service track adjusters. Lockable grease gun storage. Battery and electrical components are conveniently located under the tilting operator’s seat.

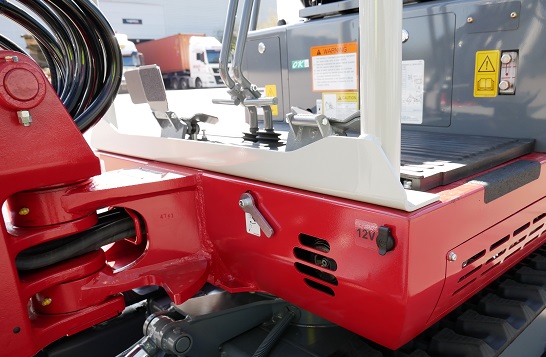

One- Two Way Hydraulics
Accessible 1-way and 2-way flow valve is accessed at the front of the machine for convenience.
Onboard Power

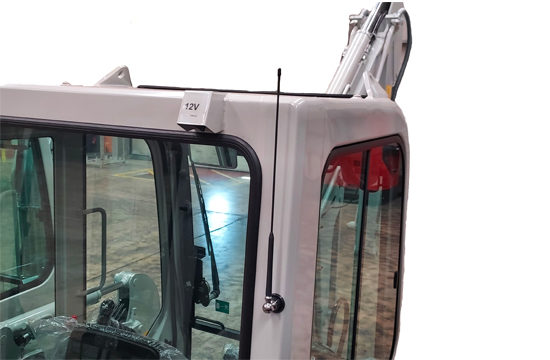

External 12 volt power socket with additional roof socket on cab option.
High Capacity Cooling System
Combined heavy duty radiator and hydraulic cooler for optimum cooling.
