Electric Hydraulic Compact Excavator
Please feel free to talk to the experts at Takeuchi about Your Eco Requirements. We are here to advise on zero emission Takeuchi mini excavators as well all move to a new lower carbon environment.
Electric Hydraulic Compact Excavator

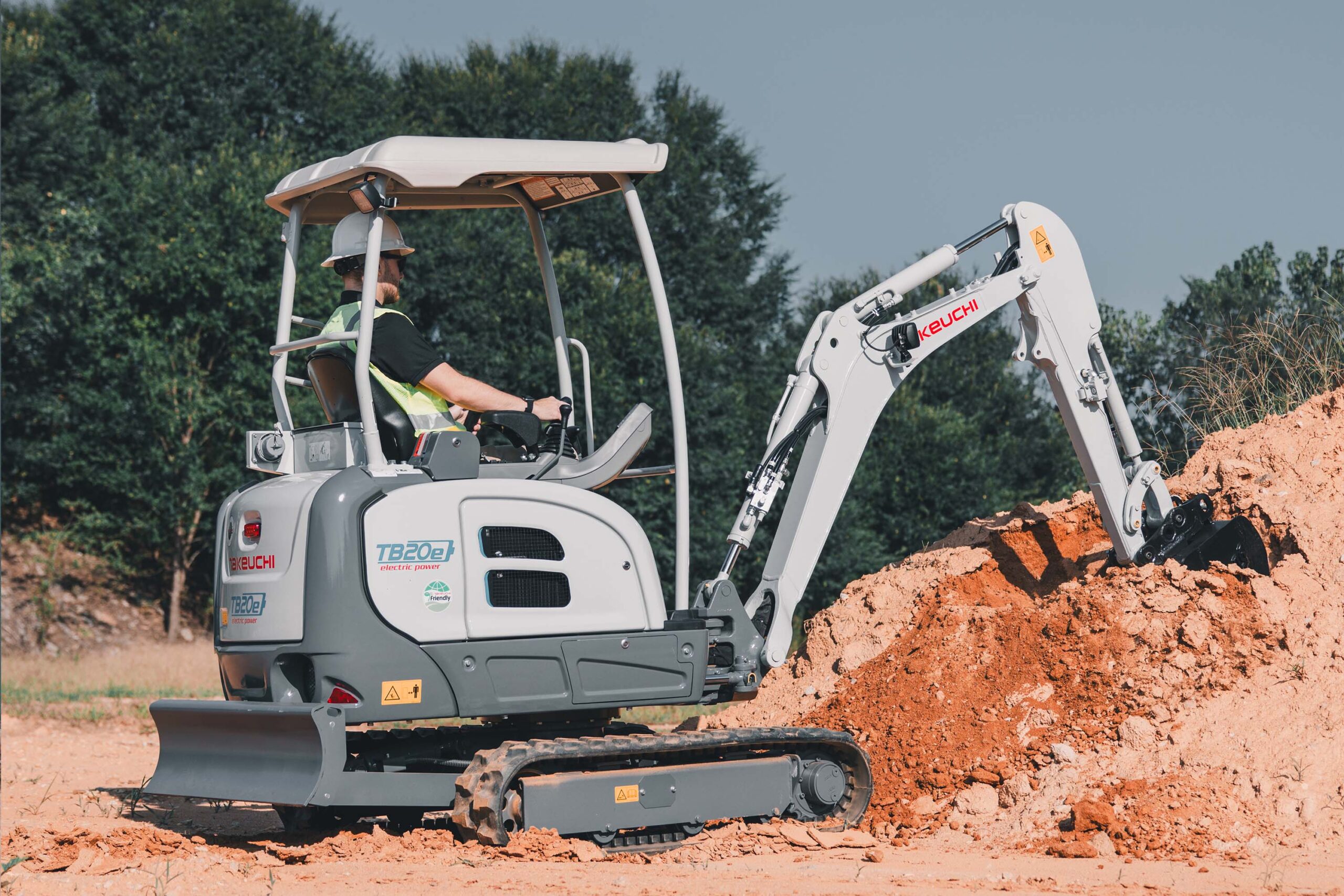

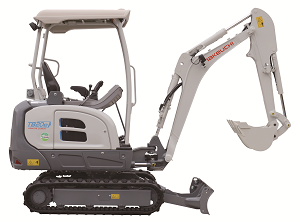

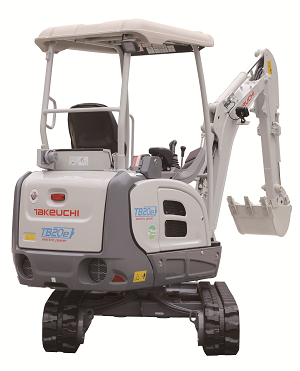

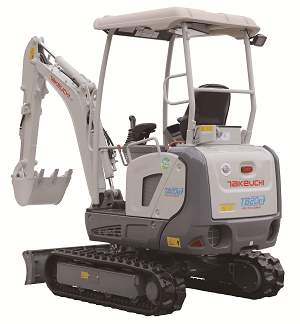

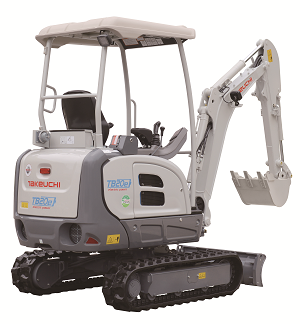

Takeuchi is pleased to introduce our latest innovative product, the TB20e Lithium-Ion battery powered compact excavator. A fully electric machine and the first Takeuchi excavator to feature electro-hydraulic controls.
The TB20e features zero emissions and low noise operation making it ideal for environmentally sensitive areas. For customers wanting to reduce their carbon footprint while still being able to get jobs done on time and with minimal downtime, the Takeuchi TB20e provides excellent productivity and a reduction of overall operating costs that are associated with traditional diesel machines.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS OPG) / Canopy (ROPS / TOPS /FOPS) |
| Cast Iron Wrap Around Protective Counterweight |
| Multi Adjustable Seat |
| MW-FM/ MP3 Radio/ USB/Bluetooth (cab only) |
| Canopy - Maximum Accessibility Both Left and Right Side |
| Cab with Retractable Upper Window and Easy Remove and Stow Lower Front Glass. |
| Cab 50/50 Sliding Offside Window with Lower Offside Footwell Window |
| Cab Mirror - Internal Rear View |
| Cab with Skylight and Heater |
| Cab - Lifting Points |
| Lockabe Grease Gun & Tool Bag Storage |
| Folding Foot Rests, Foot Controlled Offset & Auxiliary |
| ELECTRICAL |
| In-Cab Power Socket - 12v |
| Internal / External Front of Cab Power Sockets - 12V |
| Roof Beacon Power Socket - 12V |
| Visual Indicator for Engine Preheat, High Speed, Water Temp, Hour Meter and Fuel Gauge |
| Travel Alarm |
| Work Lights - Cab 1 Boom & Roof / Canopy 2 Roof & 1 Boom / Rear Marker Lighting |
| TFM (Takeuchi Fleet Management) - Optional |
| ENGINE |
| Stage V Ready < 19kW - Low Emission |
| Engine Preheat |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap |
| Dual Element Air Filters |
| Centrally Located Service Check Points |
| Lockable Fuel Fill |
| Service Interval - 250 hours |
| HYDRAULICS |
| Pilot Operated Joystick Controls |
| Cushioned Boom and Swing Cylinders |
| Boom Ram Guard |
| Automatic Slew Brake |
| Primary Auxiliary 1& 2-way Operation and Twin Isolation Valves |
| 1/2-Way Flow Selector Valve at Front of Machine |
| Tilt-Up Seat for Access to Hydraulics and Electrics |
| Steel Hydraulic Tank with Fluid Level Sight Gauge |
| 2nd Aux - Optional |
| UNDERCARRIAGE AND FRAME |
| Hydraulically Retractable Track Frame (980-1370mm) |
| Longer than Average Track Frame for Added Stability (1570mm) |
| Heavy Duty King Post / Pins / Bushes |
| 2-Speed Travel |
| Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Tie Down Points on Blade & Carriage |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Adjustable Dozer Blade with Quick-drop Pin-lock width Extension |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 3TNV70-NTB |
| Rated Output (kW)/RPM | 12.0/2500 |
| Maximum Torque (Nm) | 52.7 |
| Cylinders | 3 |
| Displacement (cc) | 854 |
| Electrical System | 12volts 40amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel: Cab/Canopy (kg) | 2000/ 1890 |
| Overall Length (mm) | 4050 |
| Width Cab/Canopy (mm) | 1030/980 |
| Height Cab/Canopy (mm) | 2360/ 2290 |
| Dozer Blade (W x H) (mm) | 980-1370 x 300 |
| Ground Clearance (mm) | 205 |
| Min Front Radius of Machine (mm) | 1330 |
| Slew Radius (mm) | 1140 |
| HYDRAULIC SYSTEM | |
| Pump Type | Variable x 2 + Gear x 2 |
| Main System Pressure (bar) | 210 |
| 1st Aux Max Flow (l/min) | 40 |
| 1st Aux Max Pressure (bar) | 210 |
| 2nd Aux Max Flow (l/min) | 11 |
| 2nd Aux Flow Pressure (bar) | 185 |
| Standard Aux | 1st |
| Optional Aux | 2nd |
| 3rd Aux | N/A |
| SWING SYSTEM | |
| Slew Speed (rpm) | 8.7 |
| Slew Motor | Trachoid Gear |
| Slew Brake | Wet Friction Disc |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 230 |
| Ground Contact Length (mm) | 1205 |
| Ground Pressure (kpa) | 33.1 |
| Maximum Gradeability | 15° |
| CAPACITIES | |
| Hydraulic System (l) | 35 |
| Fuel Tank (l) | 24 |
| Engine Lubrication (l) | 2.8 |
| Cooling System (l) | 3.7 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 93 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB72-S TKB72 |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 2520 |
| Max Dump Height (mm) | 2860/ 2985 |
| Max Reach at Ground Level (mm) | 4175 |
| Max Vertical Digging Depth (mm) | 2075 |
| Max Bucket Digging Force (kN) | 16 |
| Max Arm Digging Force (kN) | 9.78 |
| Travel Speed (km/h) | 2.4/ 4.0 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel: Cab/Canopy (kg) | 2000/ 1890 |
| Overall Length (mm) | 4050 |
| Width Cab/Canopy (mm) | 1030/980 |
| Height Cab/Canopy (mm) | 2360/ 2290 |
| Dozer Blade (W x H) (mm) | 980-1370 x 300 |
| Ground Clearance (mm) | 205 |
| Min Front Swing Radius (mm) | 1330 |
| Tail Swing Radius (mm) | 1140 |
| Boom Swing Angle (R/L) | 80°/ 50° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
Trust in Takeuchi for…

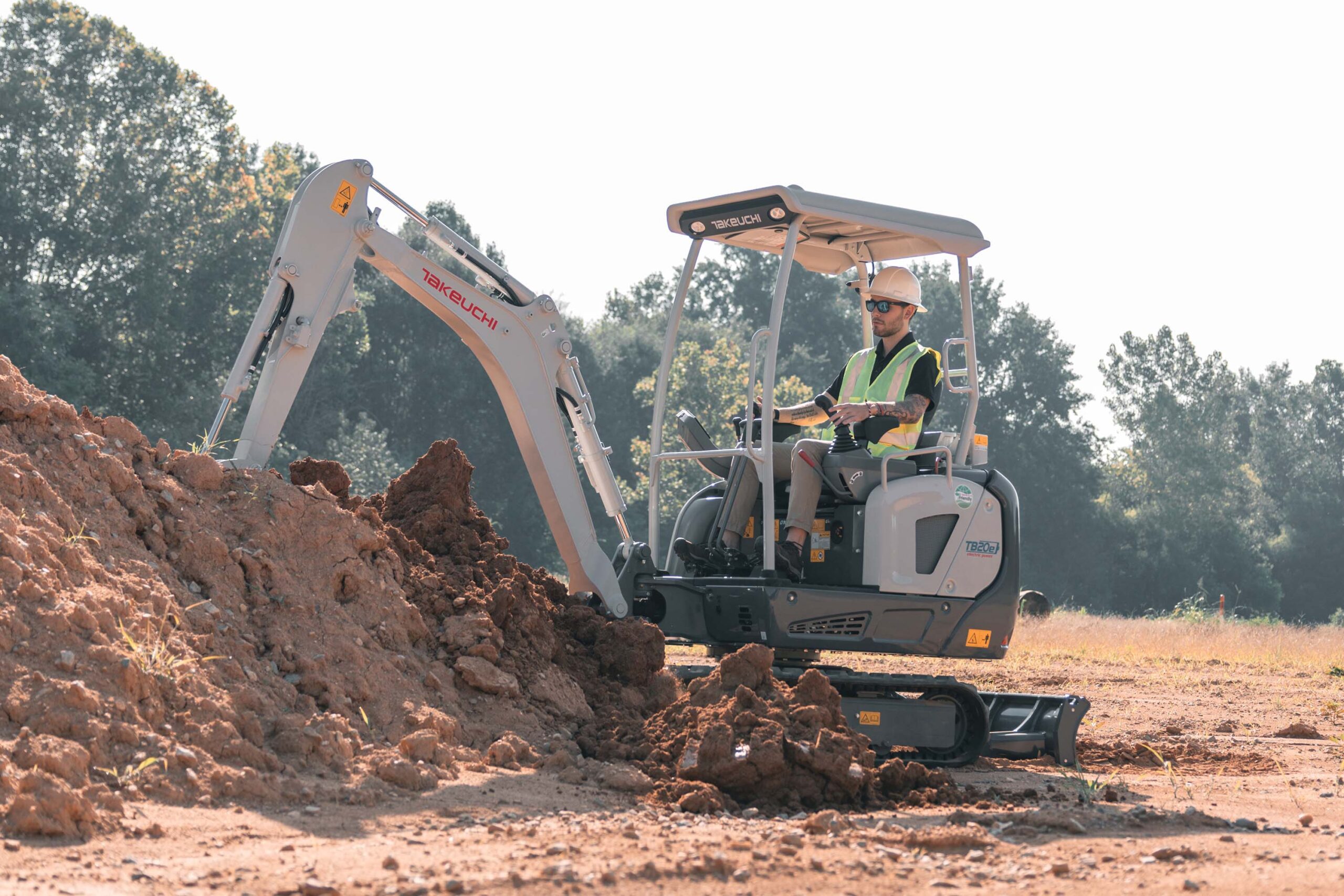

Excellent Performance

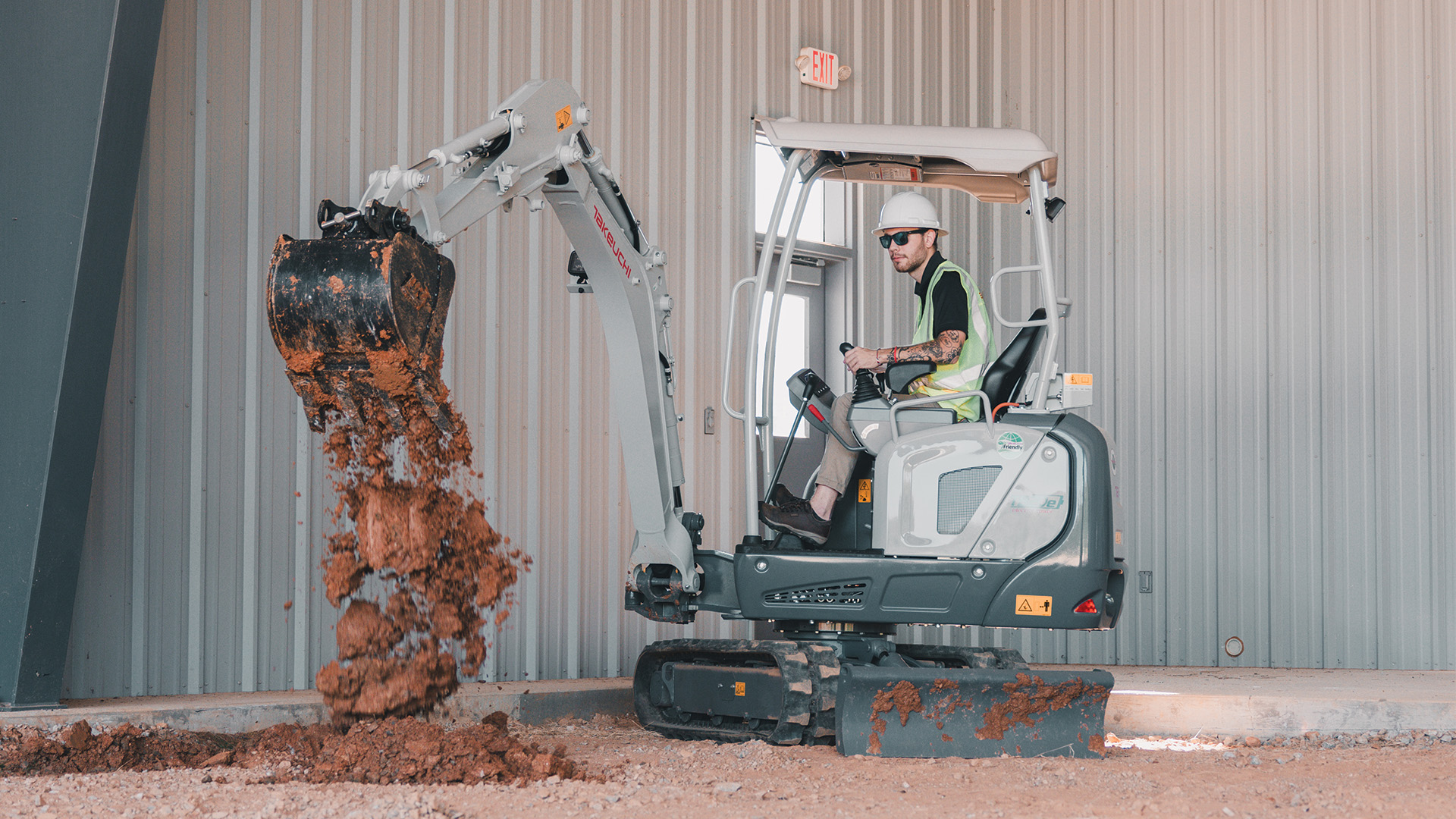

The new Electric TB20e delivers excellent excavating performance that matches its diesel equivalent model TB216, with no reduction in power performance, slew speeds and breakout force.
Zero Emissions
The TB20e is 100% battery powered with zero exhaust emissions.
Smooth Hydraulics
Electric hydraulic joysticks with proportional control complete with detent for the first auxiliary circuit when continuously using attachments.
Compact and Convenient
The TB20e is a compact canopy with all steel construction, heavy duty under-carriage and top mounted hydraulics. Built to deliver powerful electric performance.
Added Stability
The extendable track frame and longer dozer blade adds significant stability when excavating deep. Extending from 980mm to 1300mm.
On-Board Charging
With a full charge the 24.7kWh maintenance free lithium-ion battery
provides up to 8 hours of operating time at 65% load.

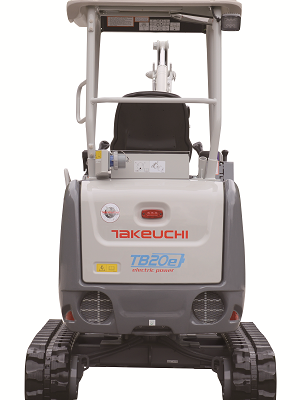

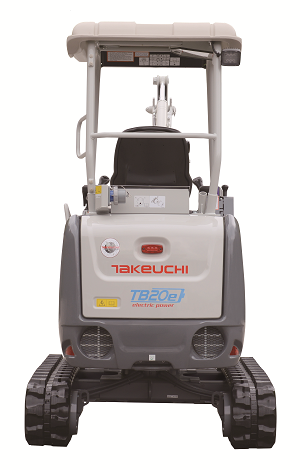

Wrap Around Counterweight
Protects key electrical, battery and hydraulic components from damage while delivering excellent stability.
Undercarriage Protection
Added spiral wrapped pipework provides ground level protection for blade cylinder hydraulic lines.
Built to Last
The lithium-ion battery is a maintenance-free proven component.

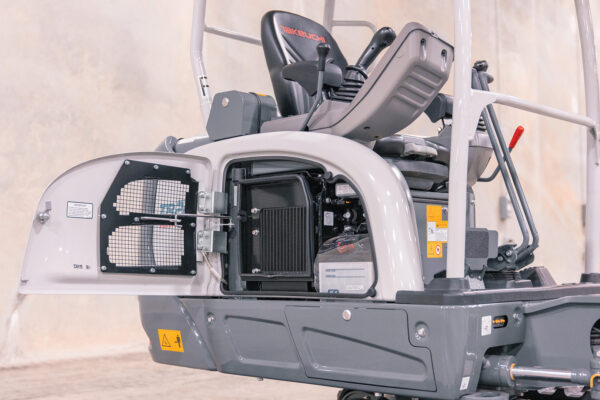

Maximum Service Access
The TB20e is easy to service for daily regular maintenance.
All Steel Construction
Protects components and ensures long term durability

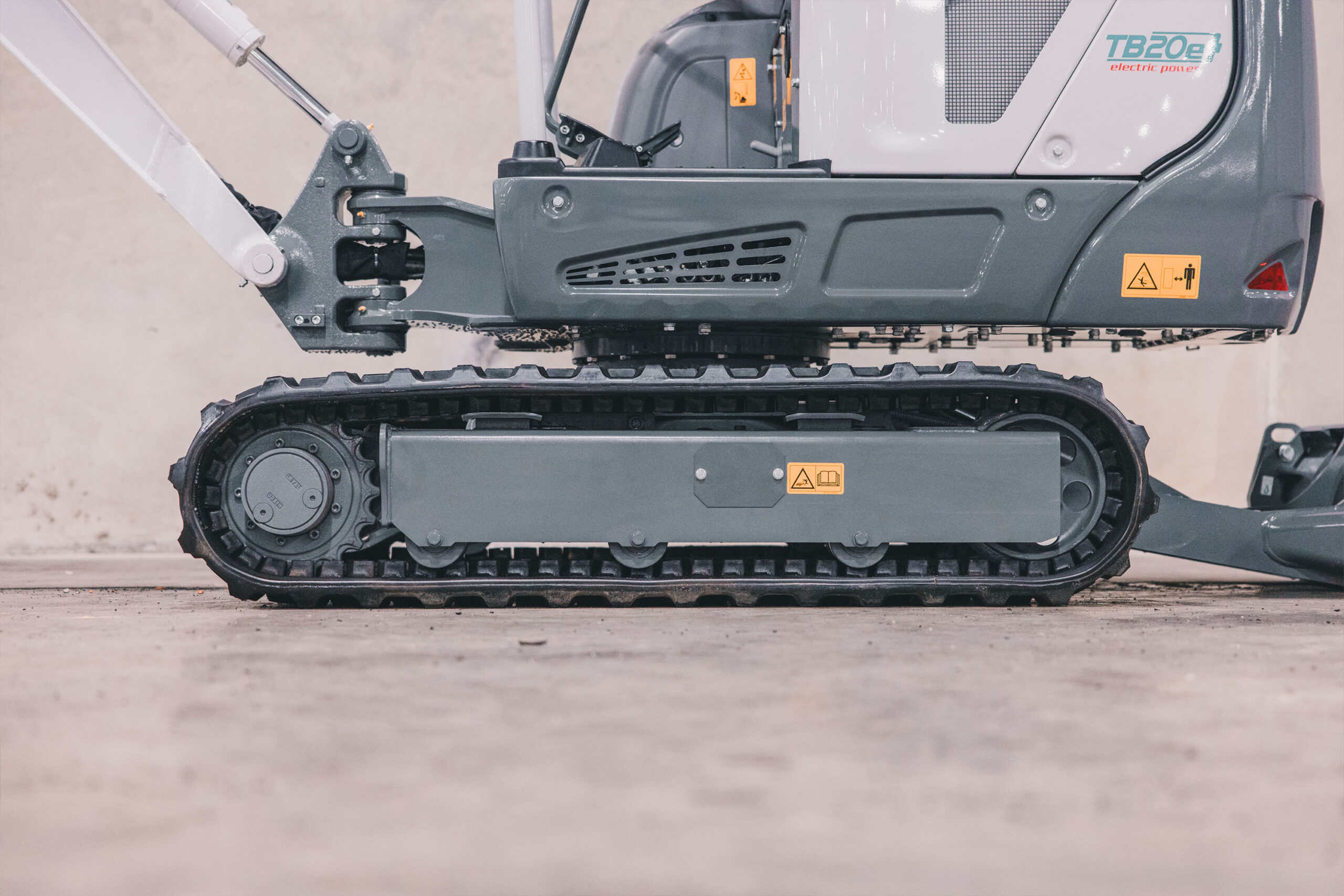

Ground Clearance
Excellent ground clearance with well protected hydraulic components, sealed bearing track rollers.
Roomy Operator Station
A roomy cab provides the operator comfort for long operating hours. Well positioned controls along with heater, MP3 socket and radio.
Multifunction display
The TB20e offers a 4.3″ high definition multi-function colour display. The weather proof rocker switches are also conveniently located.
Comfortable Operator Station
Large seat and supporting wrist rests provide a comfortable operating position for the precision pilot controls. Foldable travel pedals and foot rest add to operator comfort.
Versatile Canopy Option
The weather protected canopy provides a spacious roomy option, built with ROPS/TOPS/OPG.
Excellent Footwell Visibility
Excellent footwell visibility provides operators with maximum safety when working in utilities sectors.
Easy Adjust Dozer
A simple pin device, to match the TB20e’s extendable track width.

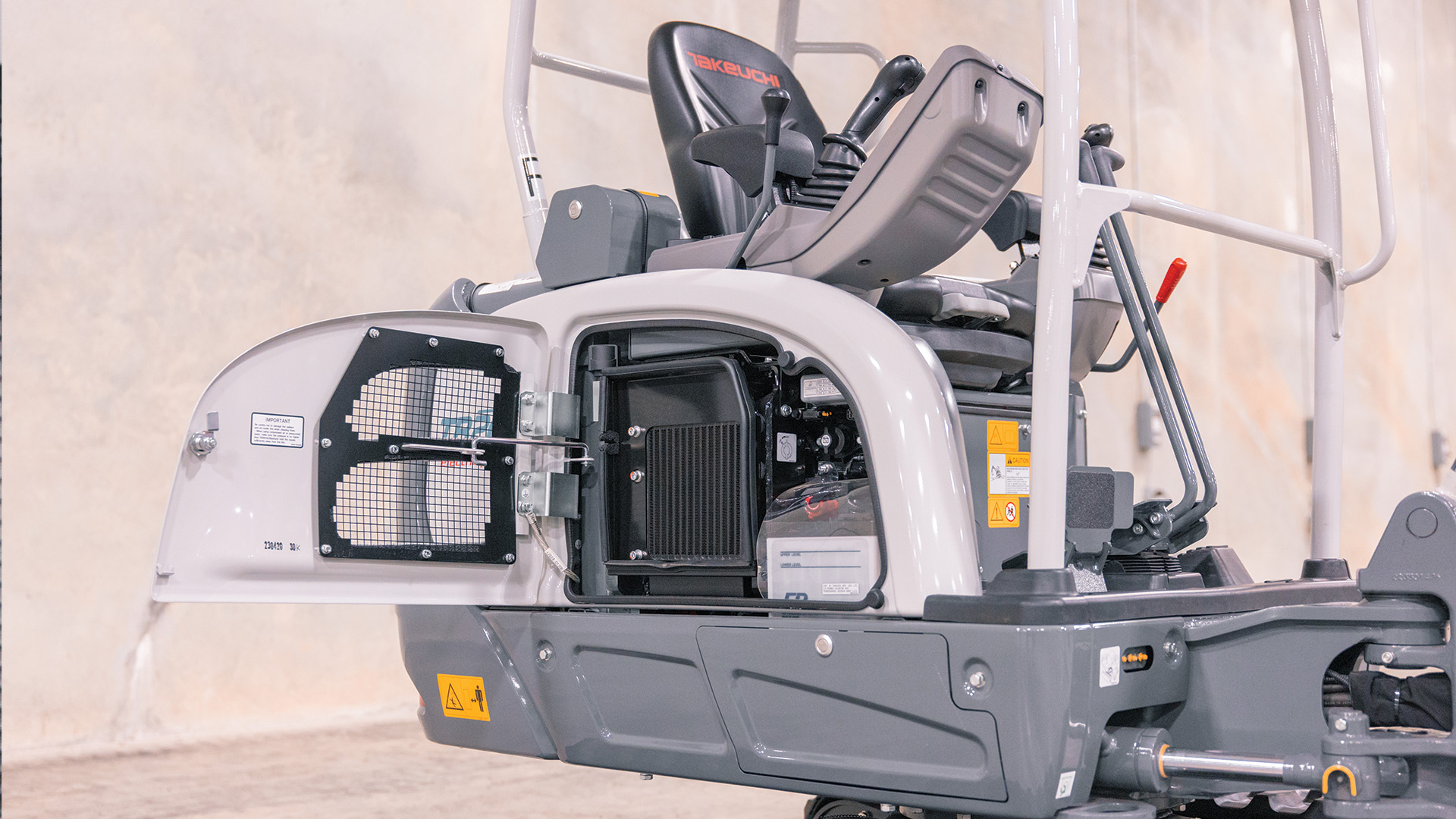

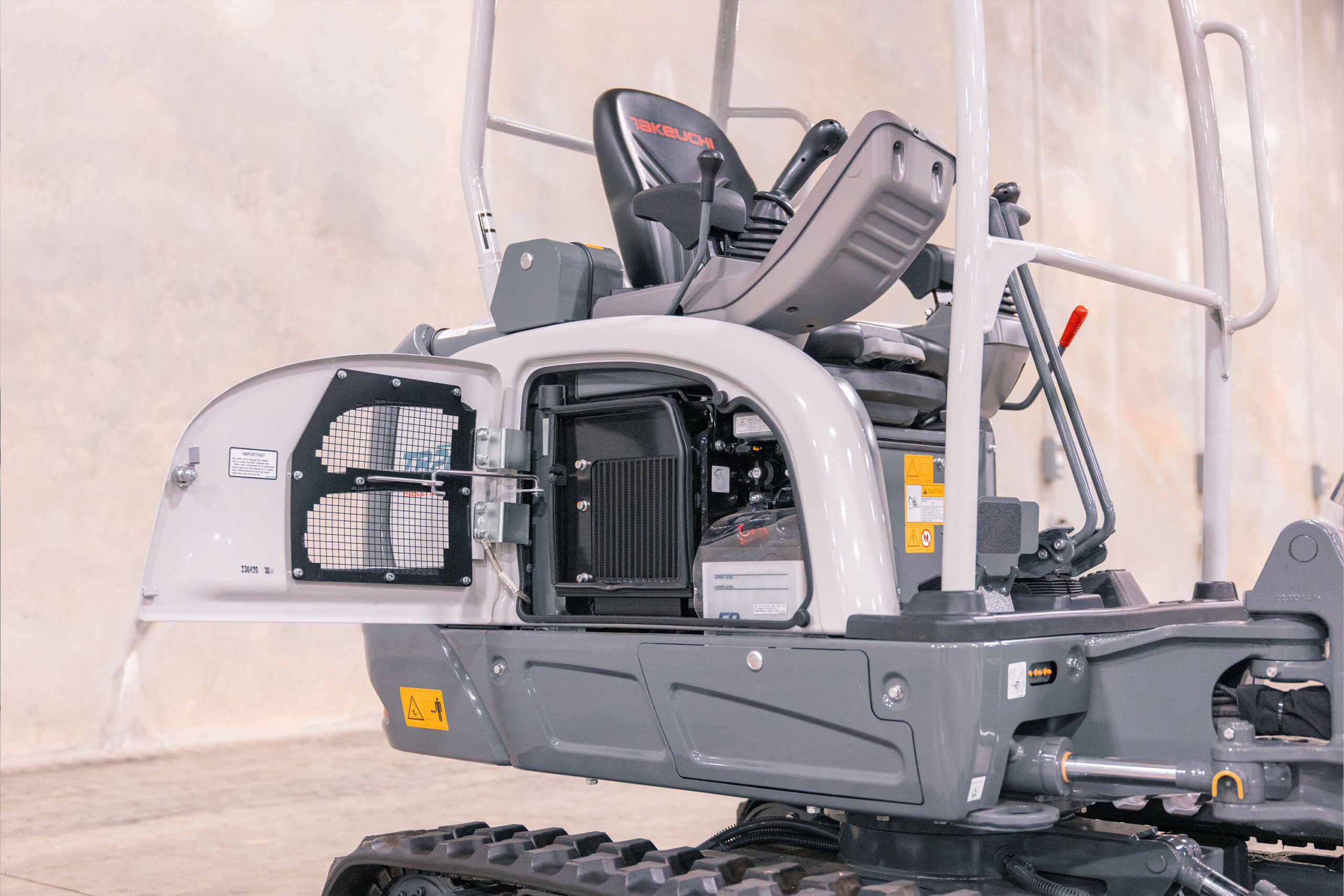

Maximum Service Access
Convenient access to daily checks and routine maintenance points. Centralised inspection points for quicker operator checks.
LED lighting
LED lighting adds to visibility and safety on site. With a travel alarm as standard and 12V power outlet.
Easy Servicing
Grease filled easy service track adjusters. Lockable grease gun storage.
Proportional Control
Load sensing system for operation with electro-hydraulic joysticks
Onboard Power
External 12 volt power socket and weather resistant rocker switches

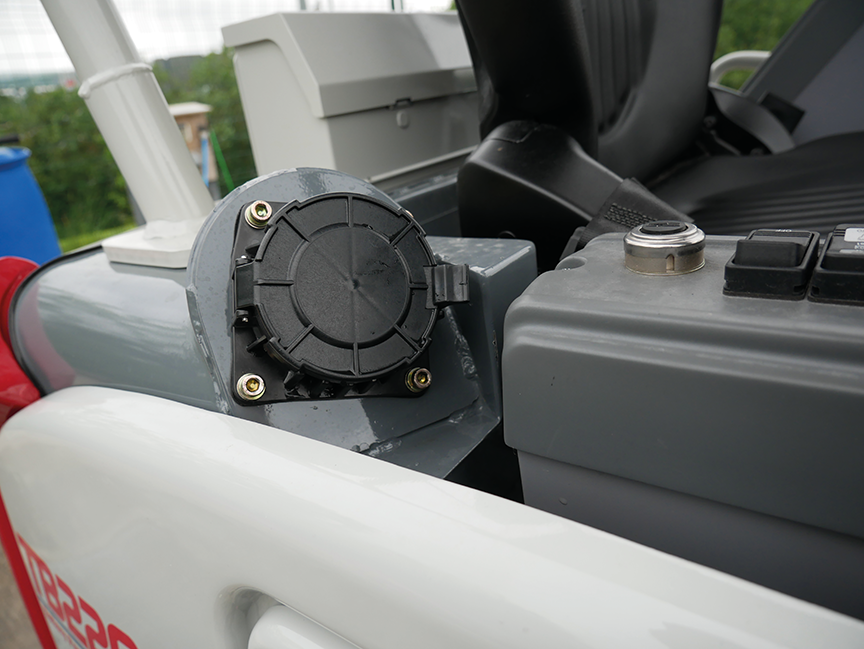

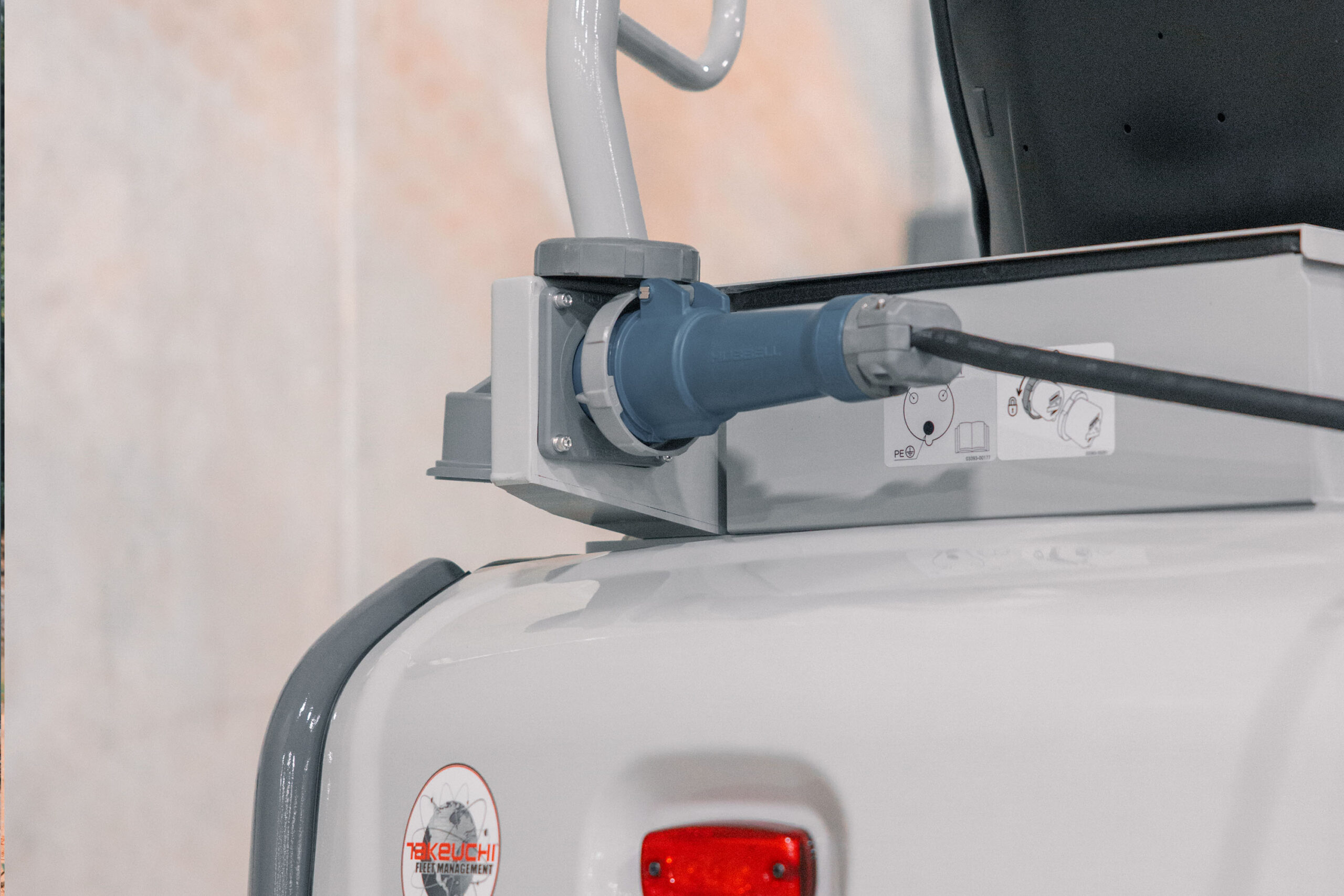

Charging Options
On-Board Charger, 95V to 265V single-phase.
Optional Portable Off-Board Charger, 408V to 552V
3-phase
