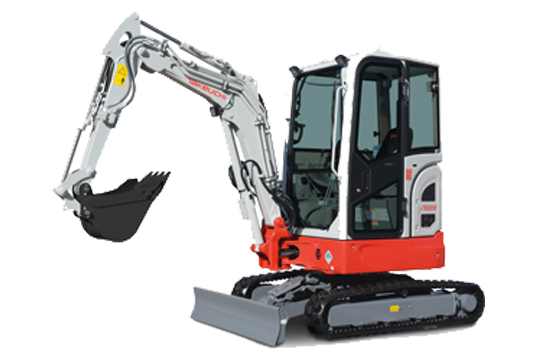

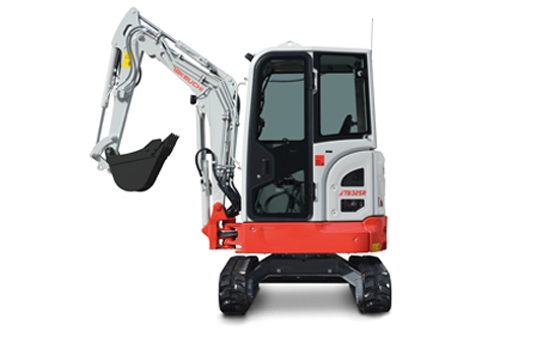

TB325R Compact Excavator | 2.5 Tonne

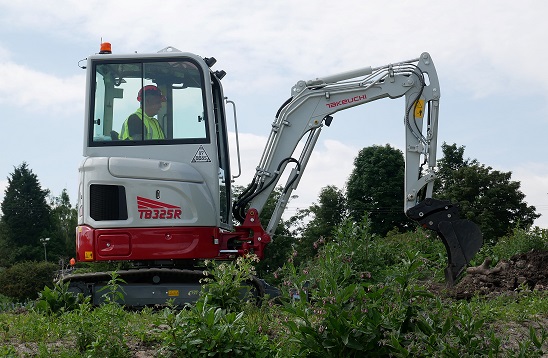

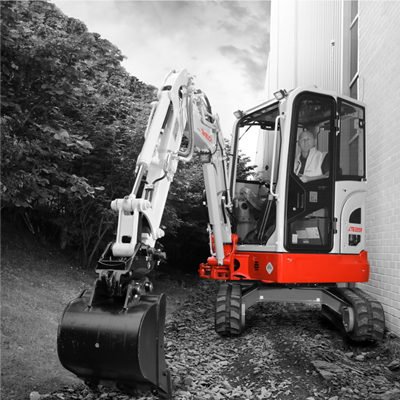

The short tail-swing design of the TB325R Compact Excavator allows it to work next to buildings without the risk of damage to crucial parts at the rear of the machine. Its compact dimensions make the TB325R ideal for urban environments where space can be limited.
Product Details
Features
| Operator Station |
|---|
| Cab or Canopy (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Colour Interactive Multi-Information Display / live engine data, error data fingertip hyd flow adjustment |
| Fully Adjustable Suspension Seat with intergrated retracting seat belt |
| Adjustable Arm Rests & Folding Drinks Holder |
| Cab- Skylight |
| Cab MW-FM/ MP3 Radio/ USB/Bluetooth with Stereo Speakers |
| Cab - Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Blindside Dual Sliding Glass Window 60/40 |
| Cab Multi-Vent Heater / De-Mister |
| Cab Mirror - Internal Rear View |
| Bolt-on Handrails - ( cab x 1, door x 1 ) |
| Lockable Grease Gun and tool storage |
| Lockable document storage ( below seat). |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal / Power Sockets - 12V / USB |
| Cab - Switched Roof Beacon Power Socket - 12V |
| Battery Isolator Switch |
| Hand Dial Electronic Throttle Control |
| Auto Tank Switch |
| Visual Indicator for Engine Preheat, Travel Speed, Water Temp and Fuel Gauge |
| Key functions Transition Between, `Engine data, Aux flow pre-sets and adjustments |
| Travel Alarm / Horn |
| Full LED work zone Lighting (Boom / Roof/ Internal) |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) - Optional |
| ENGINE |
| Stage V Ready < 19kw - Low Emission |
| Full access side opening & lockable engine hood |
| Mechanical Fuel Injection |
| Automatic Fuel Bleed System |
| Automatic Engine Idle Feature |
| Automatic Cold Start Device |
| Dual Fuel Filtration with Water Trap |
| Dual Element Air Filter |
| Engine Safe Start System |
| Large Cooling System Capacity |
| Service Interval - 250 Hours |
| HYDRAULICS |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom and Swing Cylinders |
| Main Boom and Blade Cylinder Guard |
| Automatic Slew Brake |
| Auxiliary Flow Adjustable via VDU |
| Multiple Attachment Presets |
| 3rd Aux Pre-piped with Hitch Pipework, 2nd Aux Optional |
| Proportional Auxiliary Controls with Detent |
| Primary Auxiliary Circuit with switched Auto Tank |
| Switched 1/2-Way Aux Flow |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Clustered Hydraulic Test Points |
| High Capacity Hydraulic Tank With Fill Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND WORKING FRAME |
| Longer than Average Track Frame for Added Stability |
| Load Sensing Two Speed Travel with Automatic Shift |
| Maintenance Free Sealed Bearing Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Ground Level Hose Spiral Protection |
| Dozer Cylinder Protection Guard |
| Secure-Sure Anchor Points |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 3TNV82A |
| Rated Output (kW)/RPM | 16.5/2200 |
| Maximum Torque (Nm) | 85.1 |
| Cylinders | 3 |
| Displacement (cc) | 1330 |
| Electrical System | 12V - 40.0Ah |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket, hitch and fuel: Cab/Canopy (kg) | 2440 / 2310 |
| Overall Length (transport) (mm)/ Dozer at rear | 4020 / 4435 |
| Width (mm) | 1500 |
| Height Cab/Canopy (mm) | 2490 / 2420 |
| Ground Clearance (mm) | 275 |
| Dozer Blade (W x H) (mm) | 1500 x 300 |
| Blade Range Up/Down (mm) | |
| Min Front Swing Radius (mm) | 2005 |
| Slew Radius (mm) | 825 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 210 |
| Pump Type | variable x 2 + gear x 2 |
| 1st Aux Max Flow (l/min) | 40 |
| 1st Aux Max Pressure (bar) | 210 |
| 2nd Aux Max Flow (l/min) | 14 |
| 2nd Aux Flow Pressure (bar) | 196 |
| Standard Aux | 1st & 3rd |
| Optional Aux | 2nd & 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 8.9 |
| Slew Motor | Axial piston |
| Slew Brake | Wet friction plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 250 |
| Ground Contact Length (mm) | 1510 |
| Ground Pressure (kpa) | 29.1 / 27.6 |
| Maximum Gradeability (degrees) | 25 |
| CAPACITIES | |
| Hydraulic System (l) | 48 |
| Fuel Tank (l) | 31.2 |
| Engine Lubrication (l) | 3.6 |
| Cooling System (l) | 4.7 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 93 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB102-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 2540 |
| Max Dump Height (mm) | 2775 |
| Max Reach at Ground Level (mm) | 4350 |
| Max Vertical Digging Depth (mm) | 2045 |
| Max Bucket Digging Force (kN) | 19.3 |
| Max Arm Digging Force (kN) | 11.3 |
| Travel Speed (km/h) | 2.5 / 4.3 |
| DIMENSIONS & WEIGHT | |
| Operating weight inclusive of Bucket & Fuel (kg) | 2440 / 2310 |
| Overall Length (mm)/ Dozer at rear | 4020 / 4435 |
| Width (mm) | 1500 |
| Height Cab/Canopy (mm) | 2490 / 2420 |
| Ground Clearance (mm) | 275 |
| Dozer Blade (W x H) (mm) | 1500 x 300 |
| Min. Front Swing Radius (mm) | 1625 |
| Tail Swing Radius (mm) | 825 |
| Boom Swing Angle (L/R) | 70°/55° |
| Boom Swing Angle ((L/R) | 70°/55° |
| Travel Speed (km/h) | 2.5 / 4.3 |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
Compact and Convenient
The TB325R is from the NEW 3-SERIES of Takeuchi excavators.

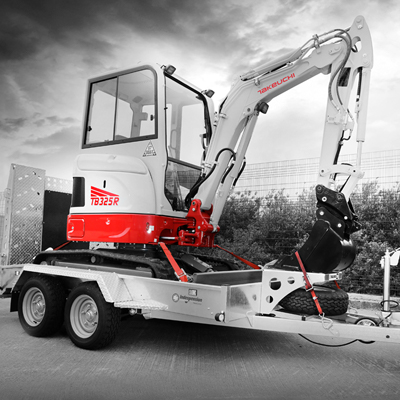

A short tail, trailer towable 2.5 tonne compact excavator and weighs-in under 2.5 tonne for safe legal towing.
Stage V Ready <19kW
For maximum efficiency and power, does not require any exhaust after-treatment systems.
Power Performance
With a powerful 16.5kW engine output and breakout force of 19.3kN this compact short-tail mini excavator provides maximum power performance on site.

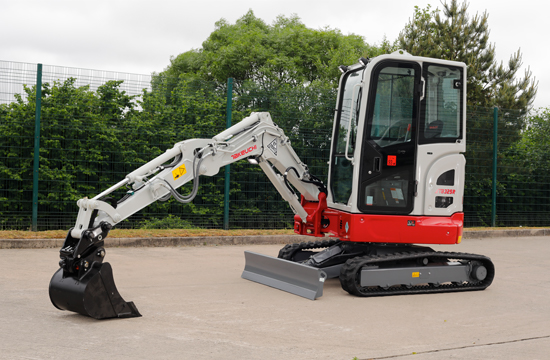

Maximum Operating Parameters
The optimized boom and arm design delivers excellent dig depth to 2540mm and ground reach to 4350mm.

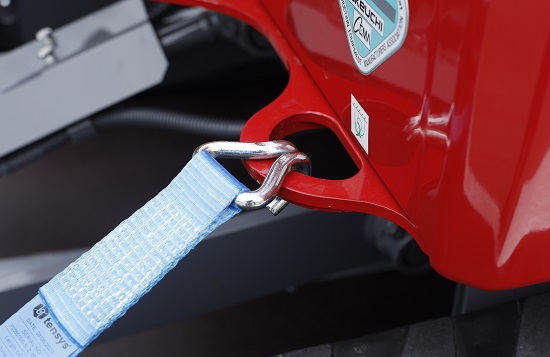

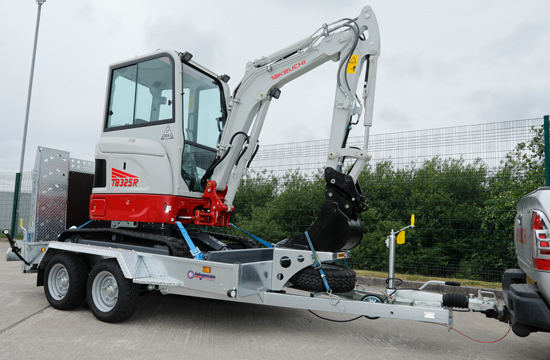

Safe Legal Towing
The TB325R is fitted with secure-sure anchor points for the safest transportation.

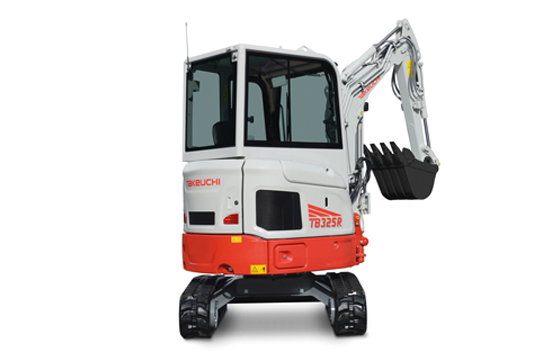

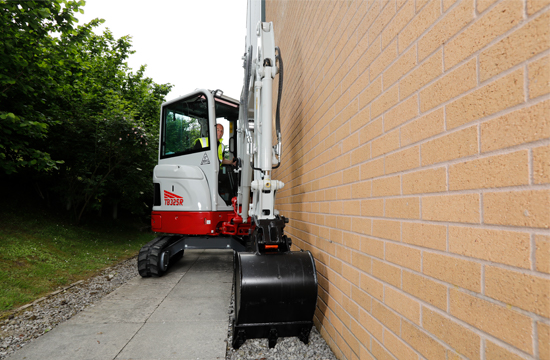

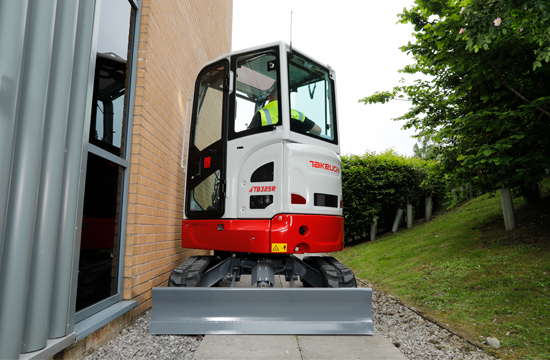

Made For Tight Corners
With just 825mm tail swing radius the TB325R can work close to walls with minimum risk of damage.
Heavy-duty Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.

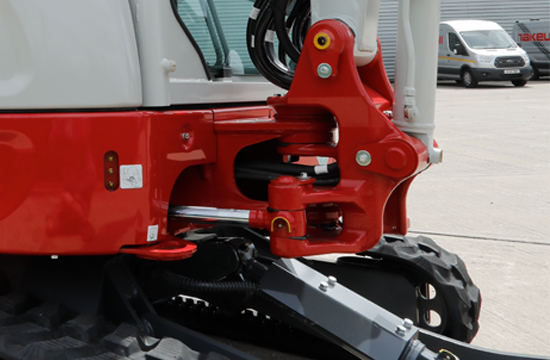

On-site Protection
The dozer and main boom cylinder guards offer maximum all round protection.

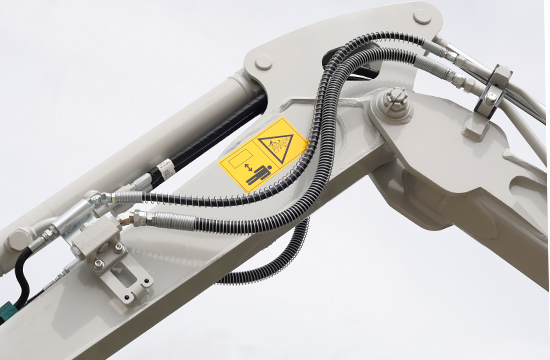

Protected Hydraulic Hoses
Spiral wrapped exposed auxiliary piping offers an extra level of on-site protection.

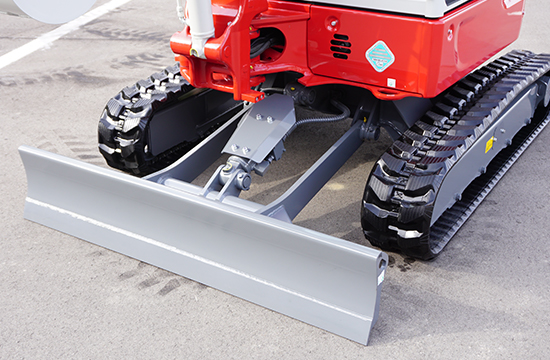

Heavy Duty Dozer
Dozer cylinder protection guard and ground level hydraulic pipework is spiral steel wrapped for maximum on site durability.

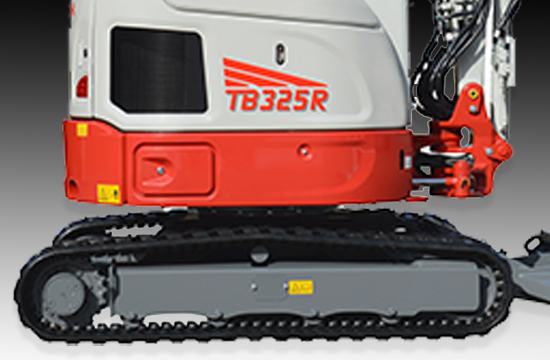

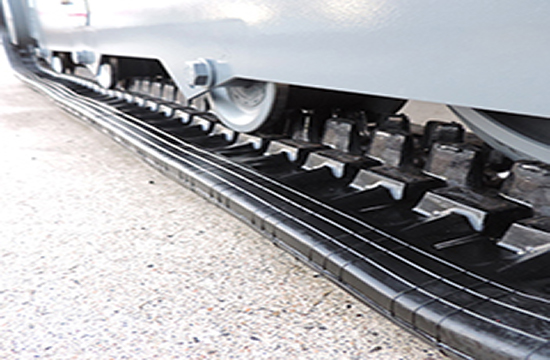

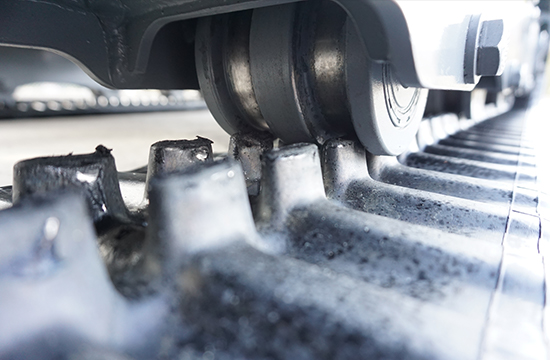

Strong Track Frame
Maintenance free triple flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.
All Steel Construction
All access panels are key locked for added security on site. Lockable fuel tank and engine compartment.

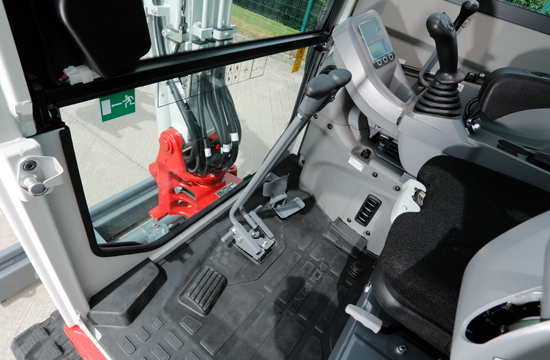

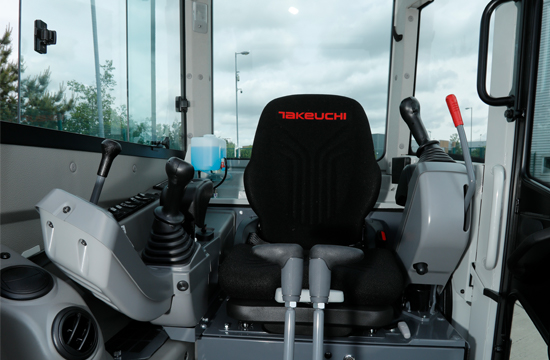

Roomy Operator’s Station
Delivers excellent visibility and operator comfort while providing easy entry and exit. The large and roomy cab and canopy feature ergonomic design with easy-to-use pilot controls and a large colour VDU.

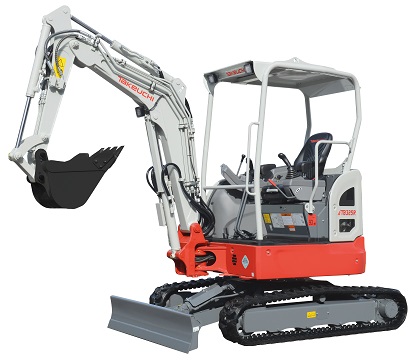

Cab or Canopy
ROPS/FOPS/TOPS cab option or Four Post ROPS Canopy offers operator protection and peace of mind.

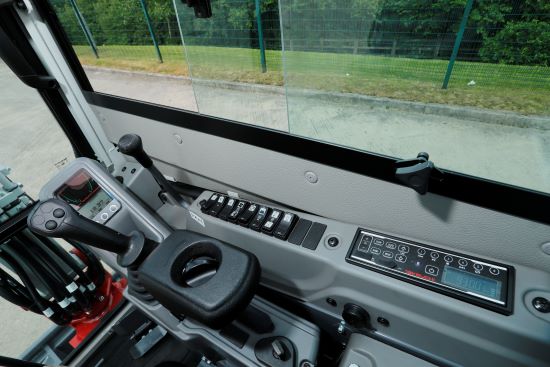

Stylish Cab
Operators get a unique styled cab, large roomy and comfortable cab with folding cup holder. Radio MW-FM/ USB/ Bluetooth with stereo speakers and 12V power outlet.

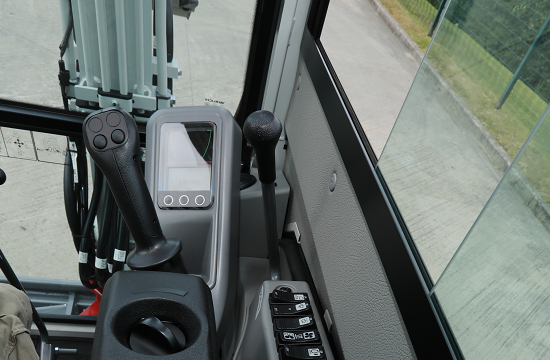

Smooth Operation
Pilot controls combine with cushioned boom and swing cylinders help reduce shock and vibration and add to smoother operation.

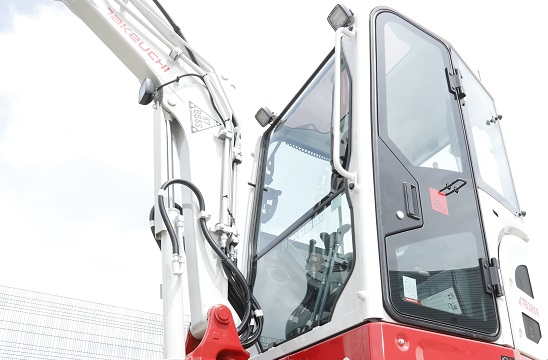

Good Visibility
Excellent visibility with LED working lights and mirrors. Cab with lift assist front window with towable lower glass.

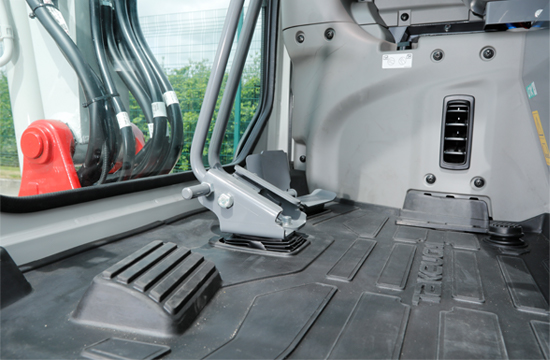

Maximum All Day Comfort
Provides maximum comfort and visibility for all day operating. Good foot room with offset foot pedal and foot rests.
Easy Machine Maintenance
Clustered service points make for quick and easy regular service routines to maintain machine performance.
Hydraulic Access
Right side lockable service panel provides excellent access to the hydraulic tank, hydraulic filter, fuel tank, coolant expansion tank and grease gun storage point.

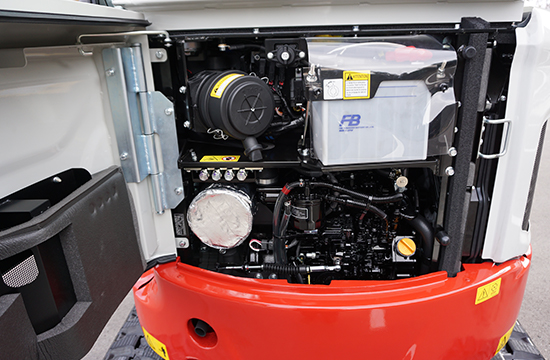

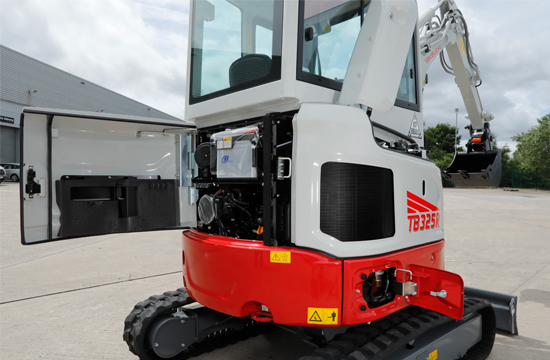

Rear Engine Access
Rear service door – allows access to the dipstick, engine oil fill, engine oil filter, air cleaner, battery, battery isolator switch and hydraulic pump pressure detection points.
Keep It Clean
TB325R compact excavator has a drain on the floor area provides easier clean out.

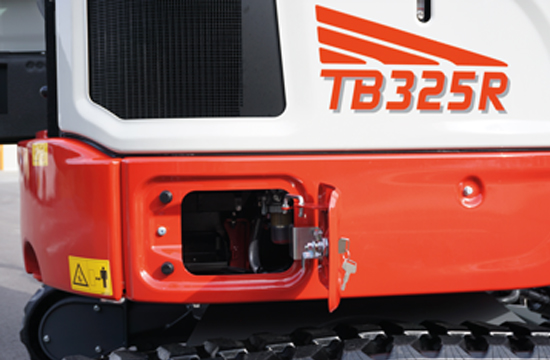

Service Amenities
Lower service panel provides storage for tool bag as well as convenient access to the water separator. A remote gauge is also provided for assistance when refuelling.
Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers.
