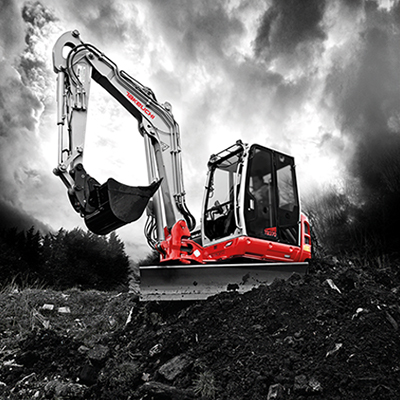

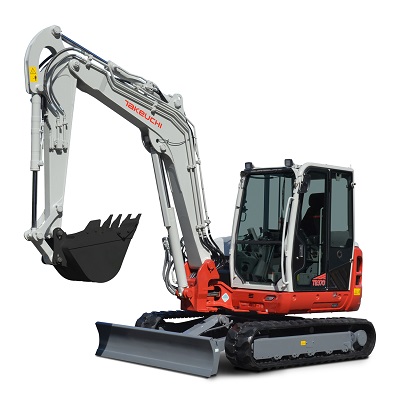

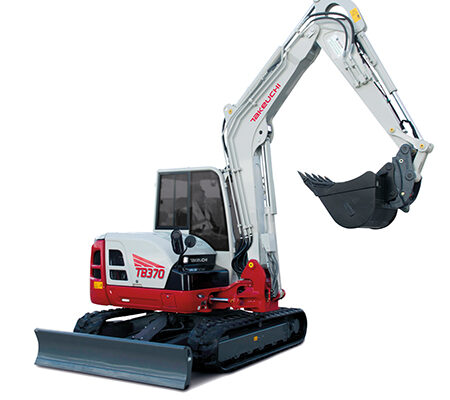

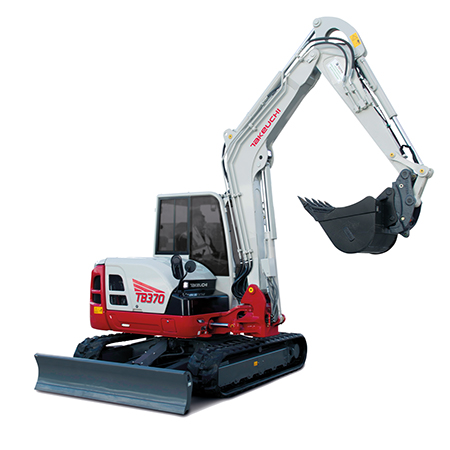

TB370 Compact Excavator | 7 Tonne
From the New 3-Series Takeuchi Excavator Range, the TB370 offers exceptional power and performance. Packed full of impressive features that come as standard with an automotive styled interior for maximum comfortable control.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS /OPG) |
| Large Wrap Around Counterweight |
| Large 8" Touchscreen Interactive Multi-Information Colour Display - Positions Landscape / Portrait |
| Colour Rear-View Camera with Auto-reverse Activation Displays Split Screen |
| Automotive Styled Jog Dial - Variable Function Controls -RPM / Heater / Radio / Aux Settings |
| Fully Adjustable Deluxe Heated HighBack Suspension Seat |
| Tool-free Adjustable Arm Rests and Drinks Holder |
| Air Con with Climate Control System |
| Skylight with Sunshade/ Rain Guard |
| In Cab - DAB / AM / FM / MP3 Radio/ USB / Bluetooth |
| 2x In-Cab Power Sockets 12V/USB |
| Gas Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel. Sliding Blind-Side Window |
| Cab Mirror - 4 Blindspot Mirrors |
| Multi Vent Heater / De-mister |
| Extended Folding Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Multi-Switch Control Panel / Jog Dial Function Control |
| 2x In-Cab Power Sockets 12V/USB |
| Switched Roof Beacon Power Socket - 12V |
| Internal External Safe Step time delayed courtesy lighting |
| Full LED Workzone Lighting and All Round LED Site Visibility Lighting |
| Travel Alarm |
| Emergency Engine Shut-down Switch |
| Electrical Refuelling Pump - Retractable |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) |
| ENGINE |
| Stage V Ready - DPF - Low Emissions |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| High Capacity Radiator |
| Automatic Idle |
| Working Modes: Eco Only |
| Service Interval - 500 hours |
| HYDRAULICS |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom, Arm, and Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| Auxiliary Flows and Pressure Adjustable from Touch Screen |
| Multiple Attachment Presets / Password Protected Aux Settings |
| Proportional Auxiliary Controls with Detent |
| Primary and Secondary Auxiliary Circuit with Auto Tank and Pressure Release |
| Aux Ports: 1st + 2nd Aux, 3rd Hardlock for Hitch, 4th Aux Optional |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Large Hydraulic Reservoir with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Hinged and Tilt-up Cab |
| Heavy Duty Dozer Blade with Float |
| Dozer Cylinder Protection Guard |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Automatic Load Sensing 2 Speed Travel |
| Maintenance-free Sealed Bearing Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Steel Tracks - Optional |
| Secure-sure Anchor Points |
Specifications
| ENGINE | |
|---|---|
| Make | KUBOTA |
| Model | V2607-CR-TE5B |
| Rated Output (kW)/RPM | 42.4/2000 |
| Maximum Torque (Nm) | 213.4 |
| Cylinders | 4 |
| Displacement (cc) | 2615 |
| Electrical System | 12volt / 90amp |
| DIMENSIONS & WEIGHT | |
| Mono Boom Machine Operating weight (kg) inclusive of bucket, hyd hitch , fuel | 7001 |
| 2 Piece Boom Machine weight (kg) | 7065 |
| Mono Length (Transporting) (mm) | 5950 |
| 2-piece Length (Transporting) (mm) | 5900 |
| Width (mm) | 2100 |
| Height (mm) | 2580 |
| Dozer Blade (W x H) (mm) | 2100 x 430 |
| Ground Clearance (mm) | 335 |
| Min Front Offset Swing (mm) | 2585 |
| Tail Swing (mm) | 1480 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 245 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 120 |
| 1st Aux Max Pressure (bar) Variable | 206 |
| 2nd Aux Max Flow (l/min) | 46 |
| 2nd Aux Pressure Flow (bar) Variable | 206 |
| Standard Aux | 1st 2nd & 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hardlock |
| SWING SYSTEM | |
| Slew Speed (rpm) | 8.8 |
| Slew Motor | Constant Volume Piston |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 400 |
| Ground Contact Length (mm) | 2050 |
| Ground Pressure (kpa) | 37 |
| Maximum Gradeability° | 30 |
| CAPACITIES | |
| Hydraulic System (l) | 139 |
| Fuel Tank (l) | 110 |
| Engine Lubrication (l) | 9 |
| Cooling System (l) | 11 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 95 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB302-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Mono (2-Piece ) Boom | |
| Max Digging Depth (mm) | 4085 (4110) |
| Max Dump Height (mm) | 4545 (4955) |
| Max Reach at Ground Level (mm) | 6565 (6765) |
| Max Vertical Digging Depth (mm) | 3815 (3840) |
| Max Bucket Digging Force (kN) | 48.4 |
| Max Arm Digging Force (kN) | 29.4 |
| Travel Speed (km/h) | 2.5-4.7 |
| DIMENSIONS & WEIGHT | |
| Mono Boom Machine weight (kg) | 7042 |
| 2 Piece Boom Machine weight (kg) | 7900 |
| Length (Transporting) (mm) | 5950 |
| Length 2-piece (Transporting) (mm) | 5900 |
| Width (mm) | 2100 |
| Height (mm) | 2580 |
| Ground Clearance (mm) | 335 |
| Dozer Blade (W x H) (mm) | 2300 x 430 |
| Min Front Offset Swing (mm) | 2585 |
| Tail Swing (mm) | 1480 |
| Boom Swing Angle (L/R) | 79°/51° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
New 3-Series
The TB370 is from the new 3-series of Takeuchi excavators, packed full of value-added features offered as standard for maximum safety and productivity.
Low Emission
Meets latest low emission standards with a low noise Stage V compliant engine. Combined with the Kawasaki hydraulic pump gives excellent efficiency and precise feel to the operator.

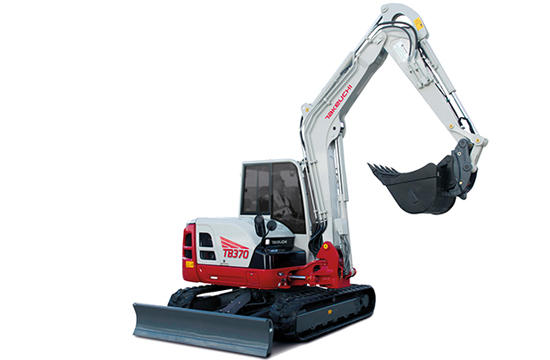

Massive Breakout Force
The new TB370 offers massive breakout force of 48.4kN for a 7-tonne excavator – a perfect combination of power, speed, and versatility at your fingertips.
Automatic Step Down
Travel Motors
Provide torque on demand when pushing, climbing, or turning in high speed mode.

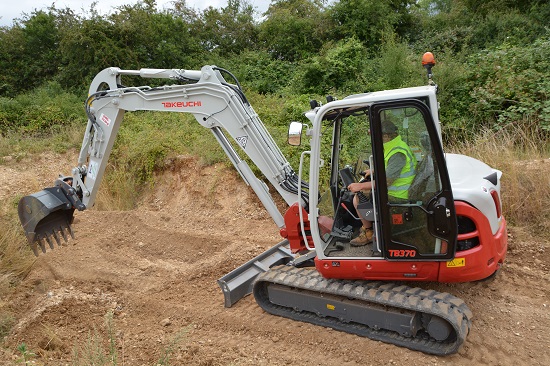

Attachment Ready
The TB370 comes as standard with 1,2,3 Aux, 3rd Aux Pre-piped with Hitch Pipework, 4th Aux Optional, Auto Detent and Auto Tank. Dual flow hydraulic lines operated by variable sliders on both levers.

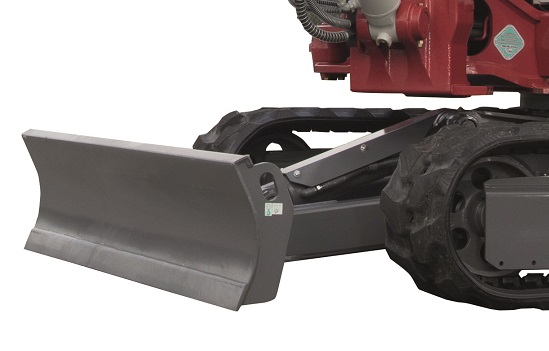

Float Blade as Standard
With switch activated float facility as standard for improved site finishing.

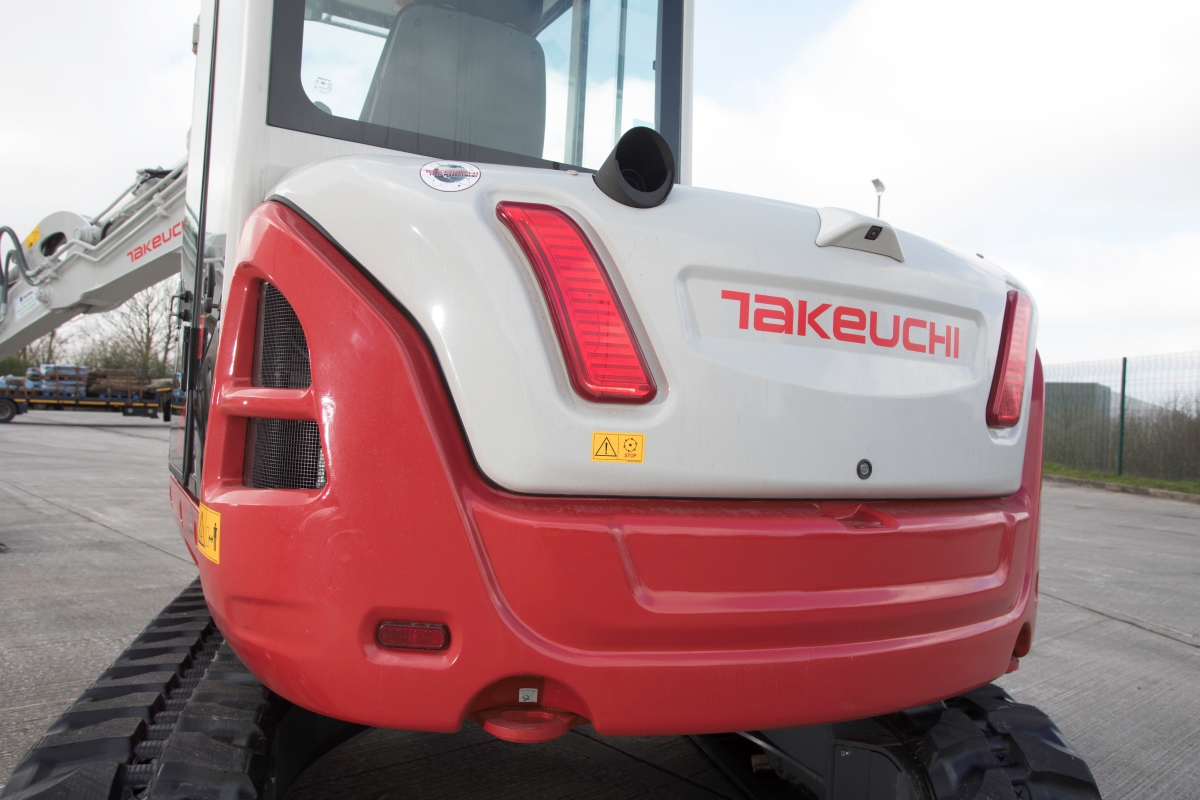

Robust Construction
Wraparound counterweight and 100% all steel panels provides ultimate site protection. Protects key engine and hydraulic components from damage while delivering excellent stability.
On Site Safety
Fitted with hose burst check valves, lift overload alarm, travel alarm and switched beacon socket.
Heavy Duty Blade
A heavy-duty dozer blade with cylinder protection guard provides the strength and durability for tough terrain. Exposed ground level hydraulic hoses are spiral steel wrapped for added protection.
Excellent Visibility
Workzone LED lights and mirrors along with an auto-activation full colour camera enhance on-site visibility.
Reduced Shock

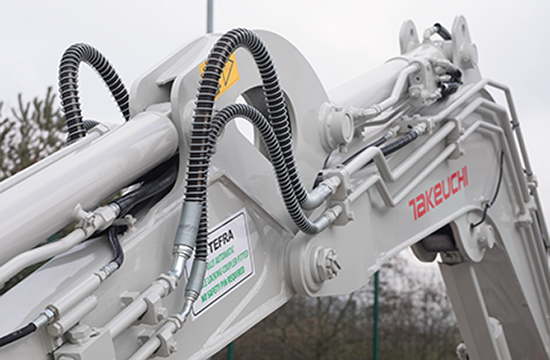

Cushioning on the heavy-duty boom, arm and swing cylinders improves component longevity, dependability and operator comfort.

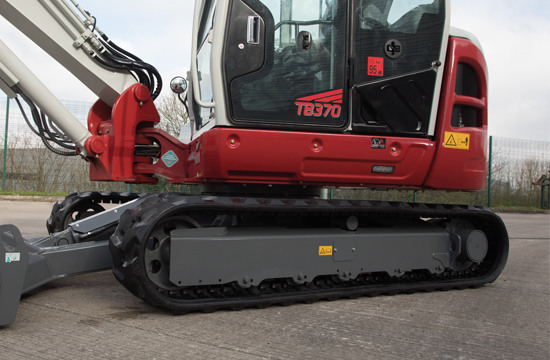

Triple Flange Track Rollers
Maintenance free triple flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.
Automotive Styled Interior
The TB370 features the latest automotive styled Jog-Dial, for easier ergonomic control.
Maximum comfort comes with air-con climate control.

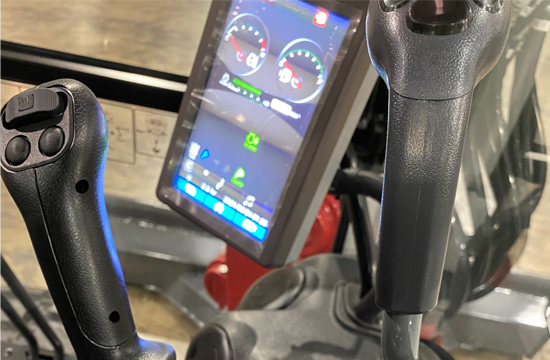

Interactive Colour VDU

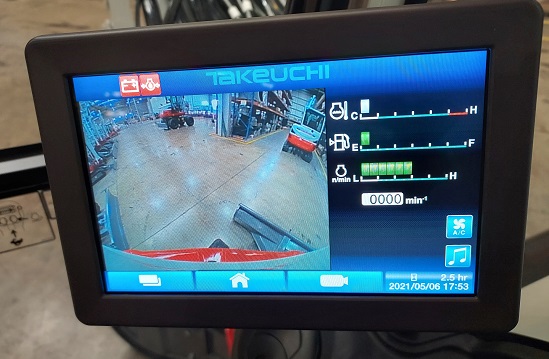

The touch screen 8” VDU rotates for operator preference and displays all active operating functions complete with split screen with auto activated rear-view HD camera.

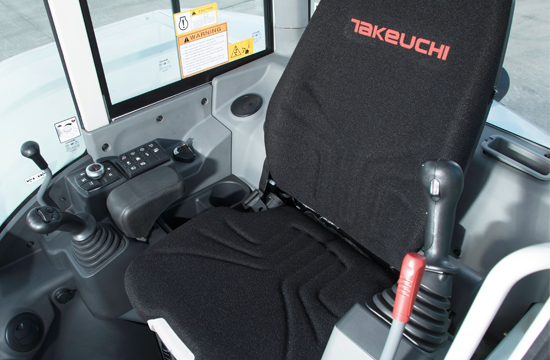

All Day Comfort
The large adjustable heated high back air-suspension seat provides maximum
comfort for a whole day’s shift. The tool-free adjustable arm rests cater for different operating positions.

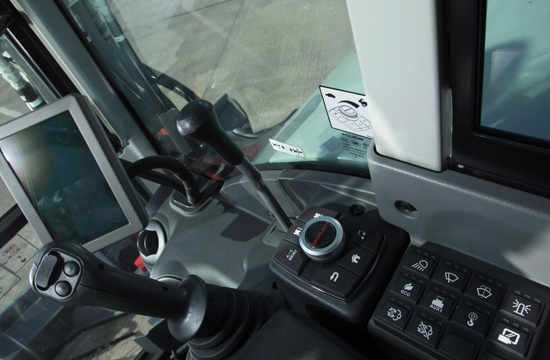

Pilot Operated Joystick Controls
Deliver precise responsive controls. Auxiliary flows and pressures are adjustable from the touchscreen control panel with pre-set modes to match all types of attachment.

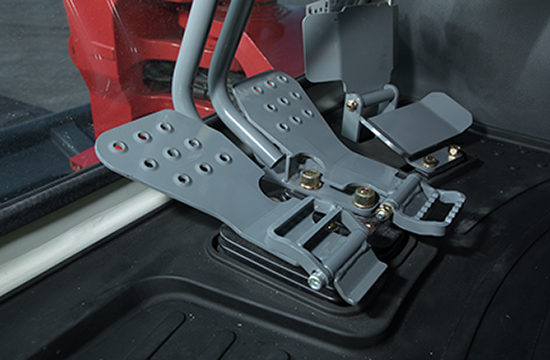

Large Travel Pedals
Fully support the operator’s feet for greater comfort and control while traveling. Additionally, pedals are raised off floor to reduce build-up of dirt and debris that can limit or impede travel functions.

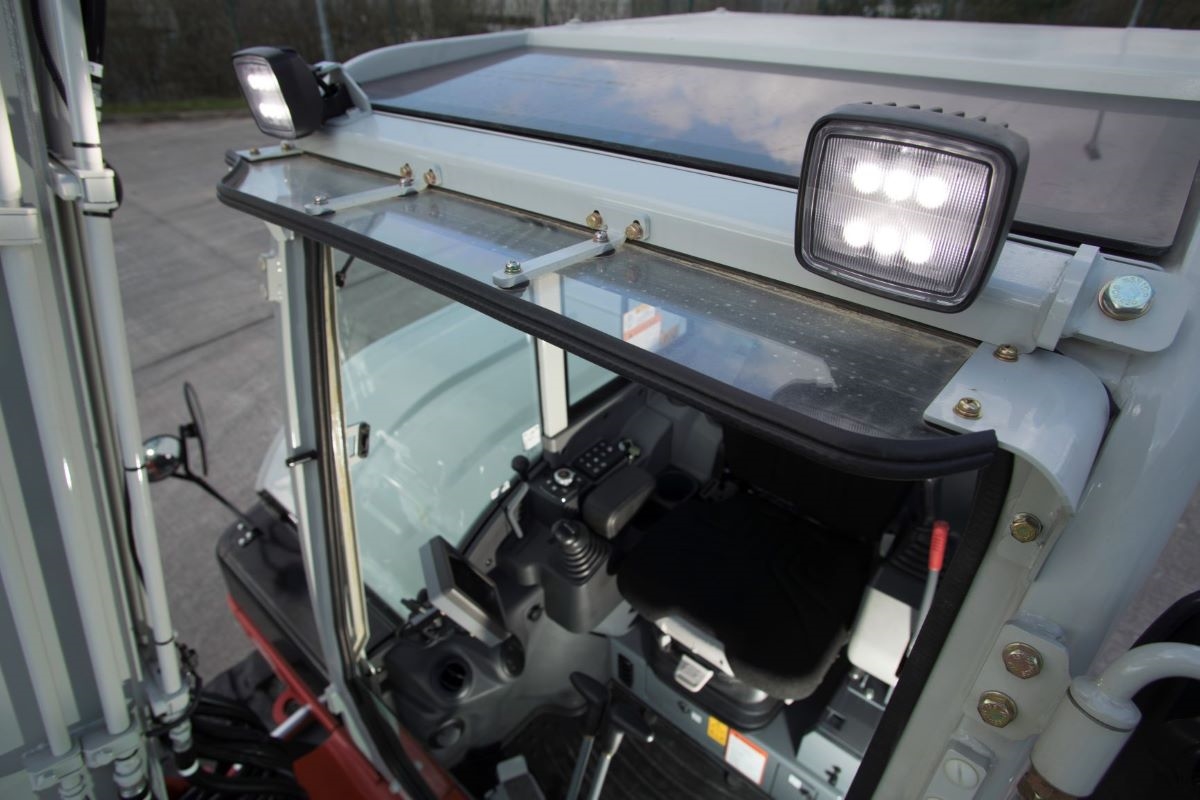

Top Glass with Sun Shade
Lift-assisted retractable front window, removable lower glass (with in-cab stow facility), a large skylight with sunshade and rain-guard complete with sliding blind-side window.

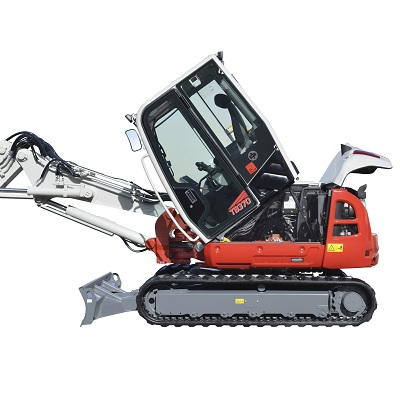

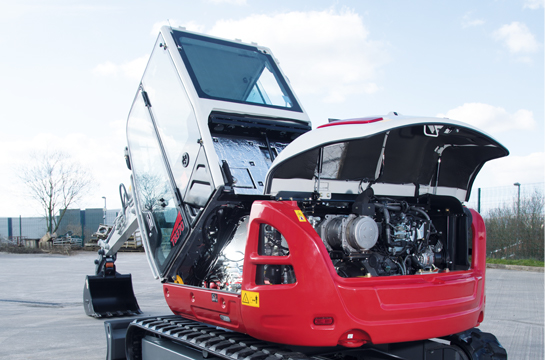

Unique Tilt-up Cab
The new TB370 features a useful tilt-up cab that gives full access to the hydraulic and rear engine components.
Rear Engine Access
The large wide rear engine hood provides convenient easy access to all the critical routine maintenance points for all the daily checks.
Maximum Service Access
With easy access to all service points under the side gull-wing cover, operators get access to fuel and hydraulic tank, battery and electrical components.

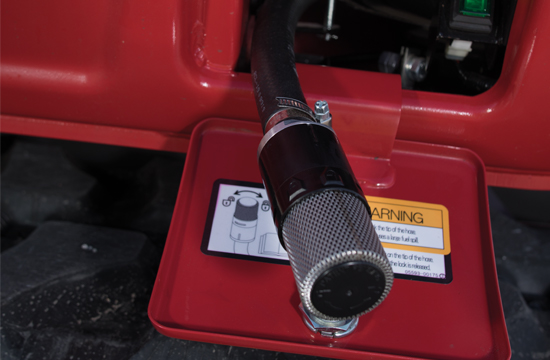

Retractable Auto Fuel Pump
Compactly stored away is the easy retractable electric
refuelling pump, with auto shut off and suction filter for added safety when refuelling.
Attachment Setup
Interactive VDU control screen gives tool free pressure and flow adjustment.
Access to live engine and machine diagnostics.
Unrivalled Serviceability
Superior service access combines with 500-hour service intervals and maintenance-free sealed bearing track rollers, all help to reduce downtime.
