TB280FR Compact Excavator | 8.5 Tonne

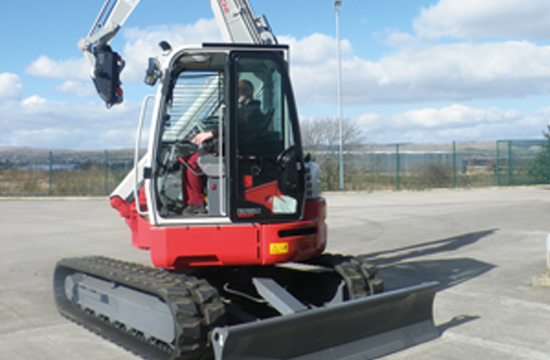

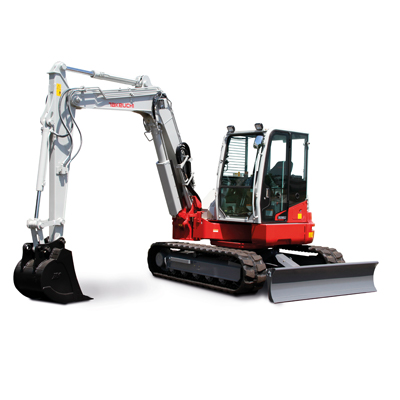

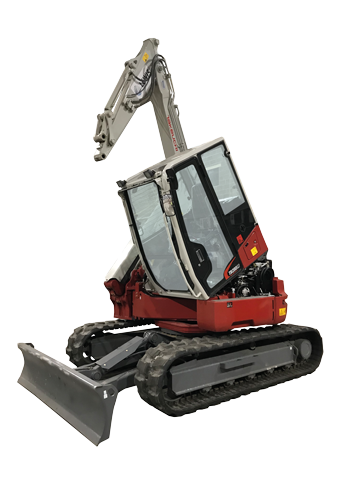

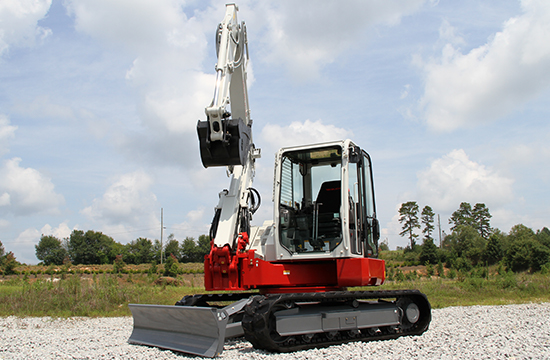

The TB280FR Compact Excavator features a unique patented side-to-side (STS) offset boom combined with near zero tail swing for unmatched versatility and visibility on site. The only excavator with the ability to fully retract the boom and fully loaded digging bucket then fully rotate 360°, while only exceeding the track by 12cm.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Large Interactive Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Adjustable Arm Rests |
| Air Con |
| Skylight with Sunshade |
| In Cab AM / FM / MP3 Radio/ USB / Bluetooth |
| Gas Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Cab Mirror - 4 Blindspot Mirrors |
| Multi Vent Heater / De-mister |
| Large Fully Supporting Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal / External Ancillary Power Sockets - 12V / USB |
| Switched Roof Beacon Power Socket - 12V |
| LED Workzone Lighting x 3 |
| Travel Alarm |
| Emergency Engine Shut-down Switch |
| Electrical Refuelling Pump |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) |
| ENGINE |
| Stage V Ready - DPF - Low Emissions |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| High Capacity Radiator |
| Automatic Idle |
| Working Modes: Standard, ECO and High Altitude |
| Service Interval - 250 hours |
| HYDRAULICS |
| Side-to-Side (STS) Boom |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom, Arm & Swing Cylinders |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves /Lift Overload Alarm |
| Boom Holding Valve with Integrated Lift Overload Alarm |
| Auxiliary Flow Adjustable from In-Cab VDU |
| Multiple Attachment Presets |

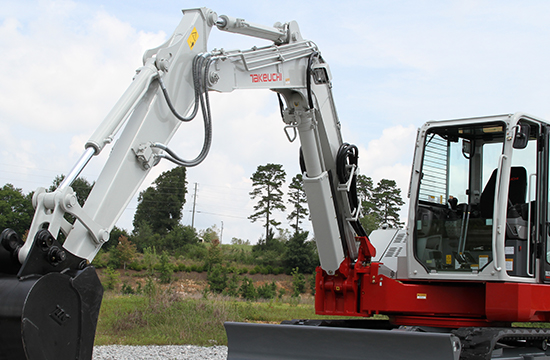

| Auxiliary Hydraulics with Independent Isolation Valves |
| Aux Ports: 1st + 2nd Aux, 3rd Hardlock for Hitch, 4th Aux Optional |
| Proportional Auxiliary Controls with Detent |
| 1/2-Way Flow Selector Valve |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Compact Near Zero Tail - (Exceeds only 12cm beyond track) |
| Hinged and Tilt-up Cab |
| Heavy Duty Dozer Blade with Float |
| Dozer Cylinder Protection Guard |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Automatic Load Sensing 2 Speed Travel |
| Triple Flanged Sealed Bearing Track Rollers |
| Automatic Hydraulic Track Tensioning System |
| Tie Down Anchor Points |
| Steel Tracks - Optional |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 4TNV98-WTBZ |
| Rated Output (kW)/RPM | 51.6/2400 |
| Maximum Torque (Nm) | 308 |
| Cylinders | 4 |
| Displacement (cc) | 3318 |
| Electrical System | 12volt / 90amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight: Cab (kg) | 8530 |
| Width (mm) | 2300 |
| Height (mm) | 2725 |
| Length (Transporting) (mm) | 6285 |
| Ground Clearance (mm) | 315 |
| Dozer Blade (W x H) (mm) | 2300 x 500 |
| Blade Range Up/Down (mm) | 500/715 |
| Front swing Radius (mm) | 1610 |
| Rear Slew Radius (mm) | 1280 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 280 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 148 |
| 1st Aux Max Pressure (bar) | 206 |
| 2nd Aux Max Flow (l/min) | 59 |
| 2nd Aux Flow Pressure (bar) | 206 |
| Standard Aux | 1st 2nd & 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 10 |
| Slew Motor | Axial Piston |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 450 |
| Ground Contact Length (mm) | 2210 |
| Ground Pressure (kpa) | 38.1 |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 147 |
| Fuel Tank (l) | 100 |
| Engine Lubrication (l) | 9.4 |
| Cooling System (l) | 14 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 99 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker *(Suitable for limited usage) | TKB402-S TKB302-S* |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Dig Depth (mm) | 4540 |
| Max Dump Height (mm) | 4480 |
| Max Ground Reach (mm) | 7045 |
| Max Vertical Digging Depth (mm) | 3495 |
| Max Bucket Digging Force (kN) | 46.7 |
| Max Arm Digging Force (kN) | 31.3 |
| Travel Speed (km/h) | 2.7-5.2 |
| DIMENSIONS & WEIGHT | |
| Operating Weight: Cab (kg) | 8530 |
| Length (Transporting) (mm) | 6285 |
| Width (mm) | 2170 |
| Height (mm) | 2725 |
| Ground Clearance (mm) | 315/320 |
| Dozer Blade (W x H) (mm) | 2300 x 500 |
| Blade Range Up/Down (mm) | 525/490 |
| Front swing Radius (mm) | 1610 |
| Rear Slew Radius (mm) | 1280 |
| Bucket Offset RH/LH (mm) | 945/805 |
| Boom Swing Angle (L/R) | 30°/15° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…

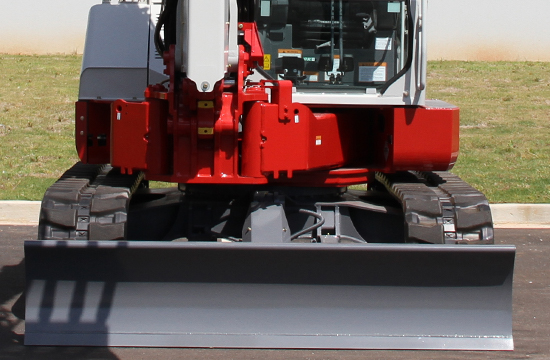

Side-to-Side (STS) Boom

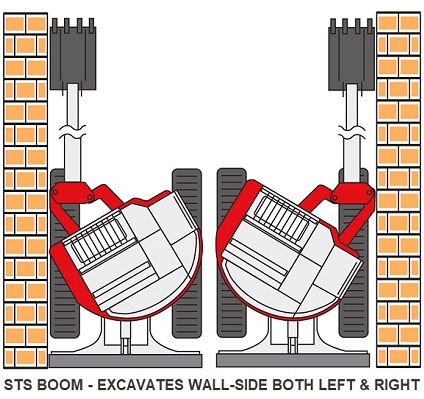

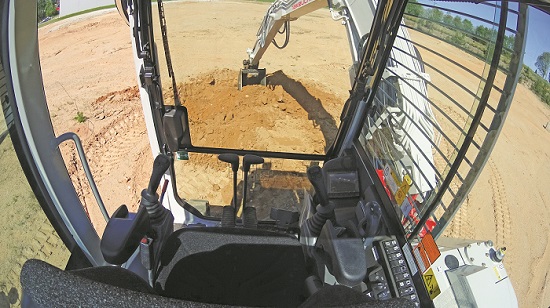

Provides unmatched visibility to the work equipment and it allows the machine to operate in very confined areas. Excavates wall-side both left and right.
360 Degree Rotation

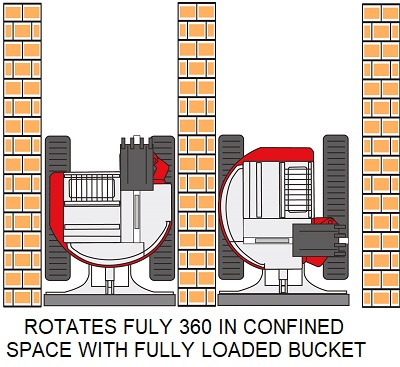

The Full Rotation (FR) design allows the boom to come back over centre enabling the machine to make a full rotation in very tight workspaces.
STS Versatility
The unique STS boom can position anywhere across the front of the machine without any reduction in dig depth or ground reach.
Automatic Step-Down Travel Motors
Provide torque on demand when pushing, climbing, or turning in high speed mode.
Pick Your Mode
Power, and High-Altitude modes allow the operator to choose the operating mode best suited to the application. Electronic throttle control combined with auto deceleration and eco-mode provides maximum fuel efficiency and reduced carbon footprint.
Complete with Float Blade
Fitted as standard to allow the blade to float freely over the contour of the ground to simplify finishing work.
Stage V Ready
Emission Compliant Engines
Provide outstanding power, fuel economy, low noise levels, and 250 hour service intervals

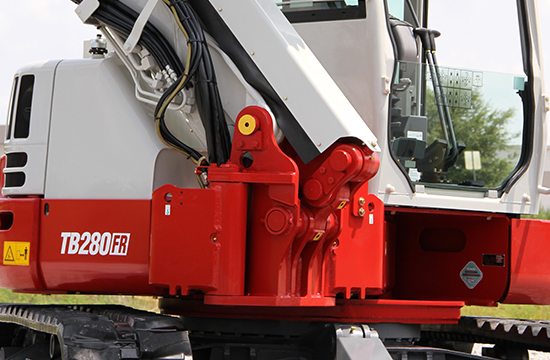

Robust Offset Boom Structure
Heavy-duty kingpost, pins and bushes, boom and blade cylinder guards and all steel construction.

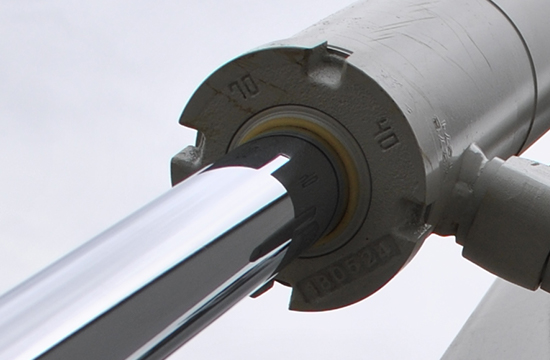

Cushioned Cylinders
Cushioning on the boom and arm cylinders improves component longevity and operator comfort.
All Steel Construction

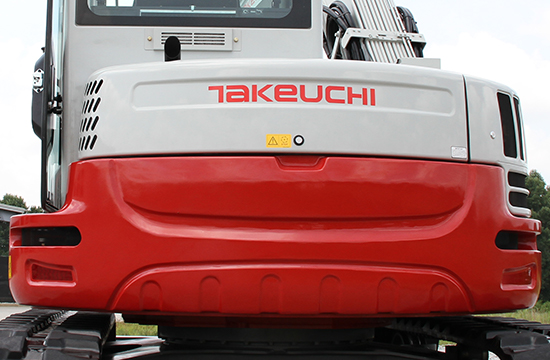

Protects components and ensures long term durability. Rounded counterweight and flush fitting steel panels.

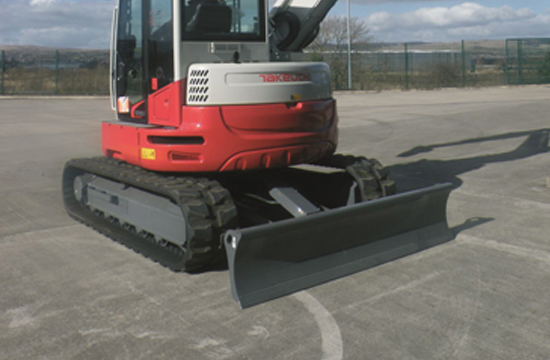

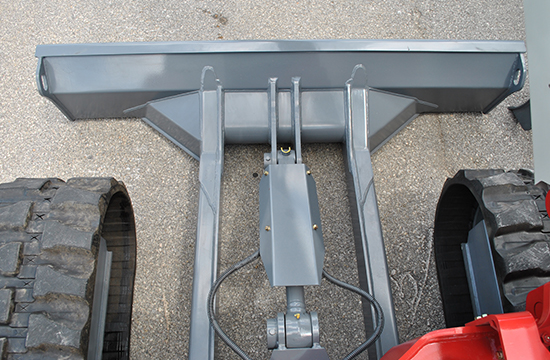

Heavy Duty Blade
Strong, purpose built robust undercarriage and dozing blade, combined with ground level steel braided protected hoses robust for tough terrain.
Triple Flange Track Rollers

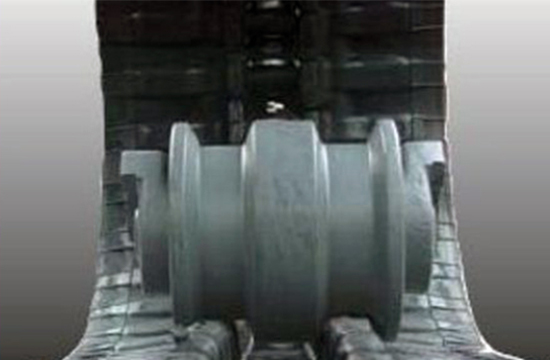

Provide increased roller to rail contact improving track retention for smoother travel. Automatic hydraulic track tensioning expanders improve track retention.
Spacious Styled Interior
Ensures operator comfort and a functional workspace with a large multi-information display and sealed rocker switches.

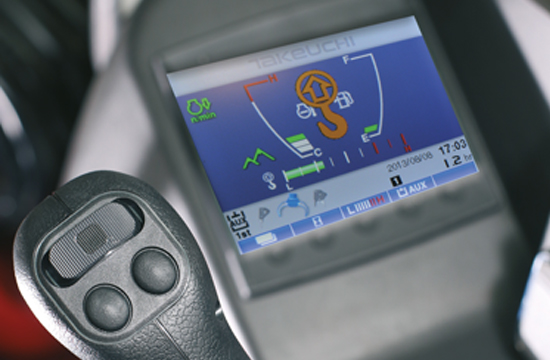

LCD Multi-Informational Display
Easy to read in all light conditions. The large multi-function display highlights real time machine health.
Deluxe High Back Suspension Seat
The stylish cab features include air con as standard, deluxe high back seat and adjustable arm rests.
Smooth Operation
Pilot controls combine with cushioned boom, arm and swing cylinders help reduce shock and vibration and add to smoother operation.

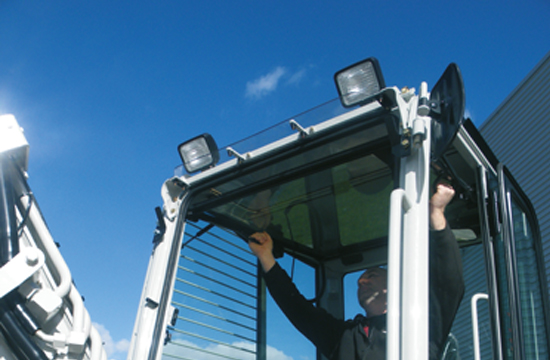

LED Lighting four forward facing wide beam LED working lamps on the roof and boom offer enhanced visibility.
Top Glass with Sunshade reduces glare and improves visibility of any overhead obstacles when truck loading.
Large Travel Pedals

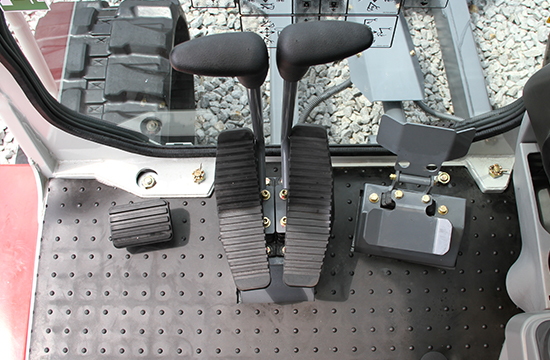

Fully support the operator’s feet for greater comfort and control while traveling. Additionally, pedals are raised off the floor to reduce the build-up of debris.

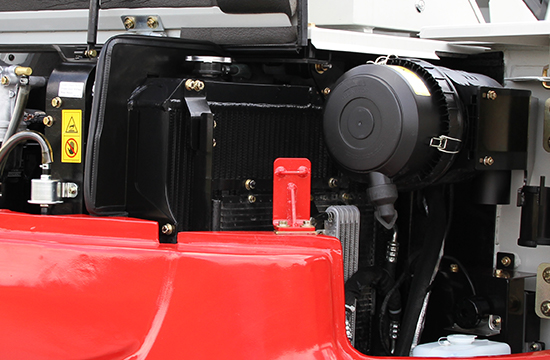

Rear Engine Access

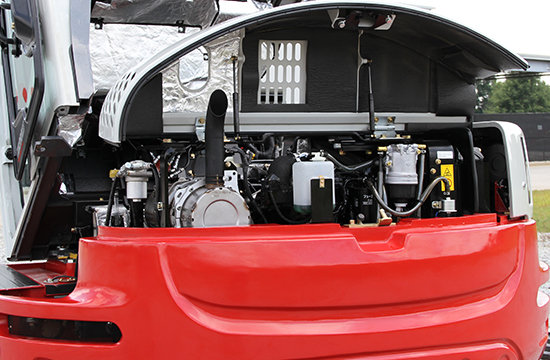

The rear engine hood provides quick and easy ground level access for daily maintenance checks to minimise service downtimes. The central cluster of key service points delivers faster servicing and less downtime.

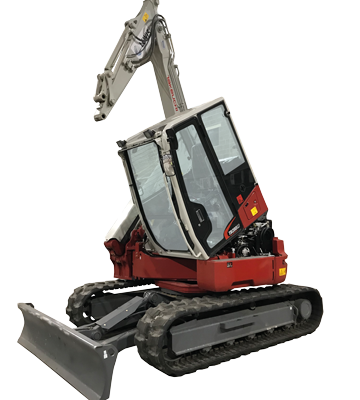

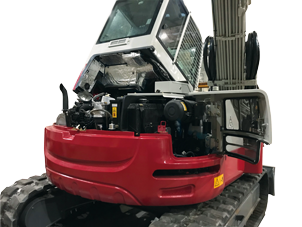

Maximum Access Tilt-up Cab
Serviceability enhanced with forward tilting cab design for unrestricted access to the engine rear and hydraulic components.
Heavy Duty Cooling System
The side by side radiator and hydraulic oil cooler features increased cooling capacity and are easy to inspect, clean and maintain.
Easy Access Hydraulics

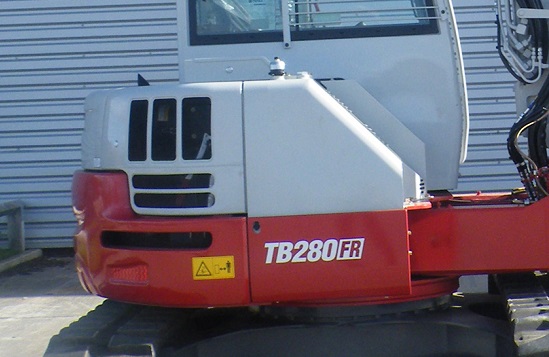

The hydraulic tank is conveniently situated on the cab right hand side with easily accessible sight gauge, fill point and internal filters, with the addition of a lockable maintenance toolbox mounted above complete with tools and tool bag.

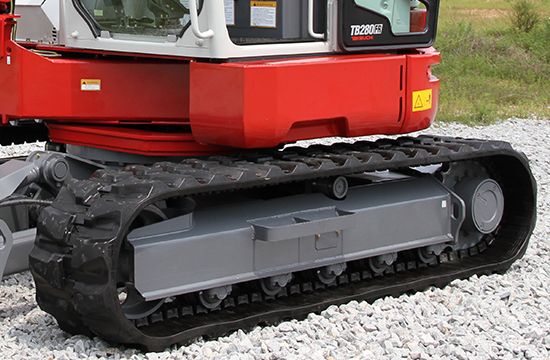

Strong Track Frame
Maintenance free triple flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.
Optional steel tracks available.
Refuelling Pump

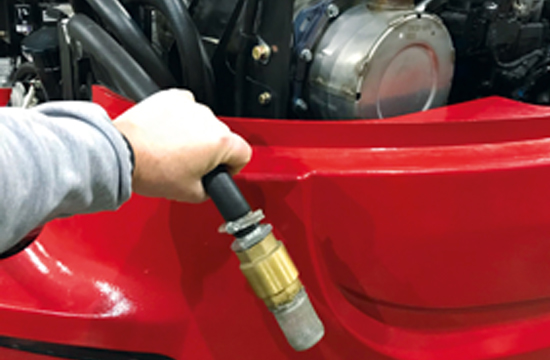

Easy access electric refuelling pump with auto shut-off as standard, a remote gauge assists when refuelling and a self-bleed system for easy restart if out of fuel.
