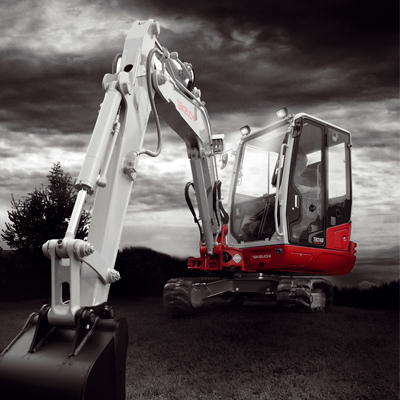

TB240 Compact Excavator | 4 Tonne
The TB240 compact excavator provides exceptional power and performance for a 4-tonne excavator. Complete with a wide working range and an excellent feature set as standard.
The cabin is spacious and well appointed ensuring operator comfort and efficiency. The 4 tonne excavator is popular with housebuilders and landscapers with excellent tool carrier versatility.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Large Interactive Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Adjustable Arm Rests and Drinks Holder |
| Air Con |
| Skylight with Sunshade/ Rain Guard |
| In Cab MW-FM/ MP3 Radio/ USB/Bluetooth |
| Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Cab Mirror - 3 Blindspot Mirrors |
| Multi Vent Heater / De-mister |
| Full Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal / External Ancillary Power Sockets - 12V |
| Switched Roof Beacon Power Socket - 12V |
| LED Workzone Lighting |
| Travel Alarm |
| Emergency Engine Shut-down Switch |
| Electrical Refuelling Pump |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) |
| ENGINE |
| Stage V Ready - DPF - Low Emissions |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| Automatic Idle |
| Working Modes: Standard, ECO and High Altitude |
| Service Interval - 500 hours |
| HYDRAULIC & WORKING EQUIPMENT |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom, Arm, and Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| Multiple Attachment Presets |
| Auxiliary Flow Adjustable via VDU |
| Proportional Auxiliary Controls with Detent |
| Auxiliary Hydraulics with Independent Isolation Valves |
| 1/2-Way Flow Selector Valve |
| 3rd Aux Pre-piped with Hitch Pipework, 2nd and 4th Aux Optional |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Heavy Duty Dozer Blade with Float |
| Automatic Load Sensing 2 Speed Travel |
| Maintenance-free Sealed Bearing Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Ground Level Hose Spiral Protection |
| Dozer Cylinder Protection Guard |
| Tie Down Anchor Points |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 4TNV88c CSTB DPF |
| Rated Output (kW)/RPM | 26.7/2200 |
| Maximum Torque (Nm) | 144.9 |
| Cylinders | 4 |
| Displacement (cc) | 2189 |
| Electrical System | 12volts 90 amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket, hitch and fuel (kg) | 4037 |
| Overall Length for transport (mm) | 5085 |
| Width (mm) | 1740 |
| Height (mm) | 2490 |
| Dozer Blade (W x H) (mm) | 1740 x 395 |
| Ground Clearance (mm) | 295 |
| Min Front Swing Radius (mm) | 1620 |
| Slew Radius (mm) | 1365 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 240 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 65 |
| 1st Aux Max Pressure (bar) | 206 |
| 2nd Aux Max Flow (l/min) | 23 |
| 2nd Aux Flow Pressure (bar) | 206 |
| Standard Aux | 1st & 3rd |
| Optional Aux | 2nd & 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 9.6 |
| Slew Motor | Constant Volume Piston Motor |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 350 |
| Ground Contact Length (mm) | 1645 |
| Ground Pressure (kpa) | 31.6 |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 74 |
| Fuel Tank (l) | 70 |
| Engine Lubrication (l) | 7.4 |
| Cooling System (l) | 9 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 96 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB302-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 3465 |
| Max Dump Height (mm) | 3825 |
| Max Reach at Ground Level (mm) | 5425 |
| Max Vertical Digging Depth (mm) | 3725 |
| Max Bucket Digging Force (kN) | 30.8 |
| Max Arm Digging Force (kN) | 18.3 |
| Travel Speed (km/h) | 2.9/5.3 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 4037 |
| Overall Length for transport (mm) | 5085 |
| Width (mm) | 1740 |
| Height (mm) | 2490 |
| Ground Clearance (mm) | 295 |
| Dozer Blade (W x H) (mm) | 1740 x 395 |
| Min Front Swing Radius (mm) | 1620 |
| Slew Radius (mm) | 1365 |
| Boom Swing Angle (L/R) | 57°/77° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
Designed for Success
The TB240 design features a rounded body for improved visibility and functionality, and the conventional tail swing with reduced overhang provides outstanding stability.
Stage V Ready – Low Emission
Powered by a 27.2kW Yanmar 4 cylinder engine with DPF, to meet Stage V emission regulations.
Hi-Spec Auto Functions
The TB240 offers auto idle, auto detent and jog-dial throttle – all key features for maximum operating performance.

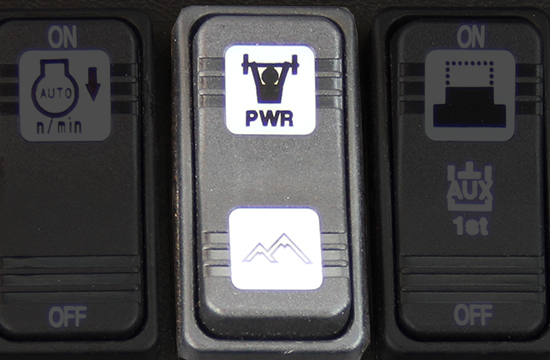

Pick Your Mode
Eco and High-Altitude modes allow the operator to choose the operating mode best suited to the application.
Stay in Your Seat
Hydraulic flow can now be adjusted from the comfort of the operator’s seat with two-way auxiliary hydraulics plumbed to the arm for greater attachment versatility.
Safety as Standard
Standard features include boom and arm holding check valves to maintain load control if hoses fail, complemented by a crane switch and audible lift overload alarm.

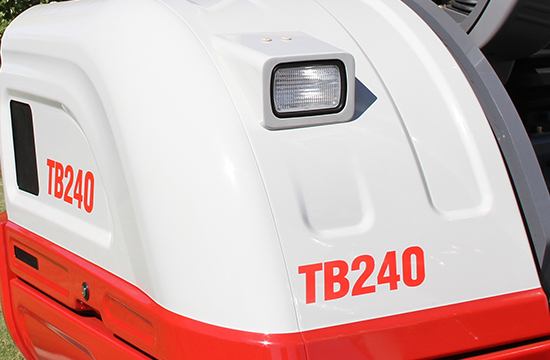

All Steel Construction
100% steel helps protect components and ensures long term durability.
Triple Flange Track Rollers
Provide increased roller to rail contact improving track retention for smother travel.

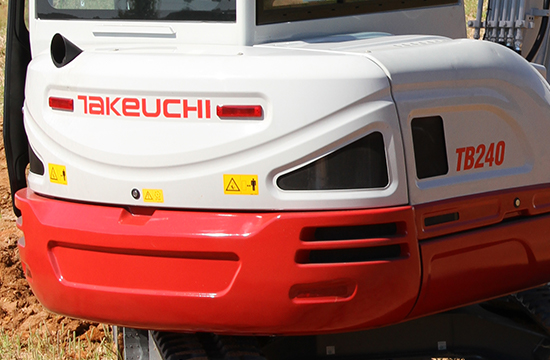

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.

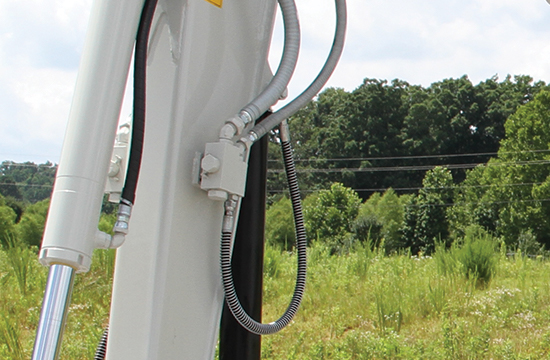

Shut-off Valve
Isolation valves simplify attachment installation and limit the release of hydraulic oil. Auxiliary attachments adjustable from your seat.
Added Protection
Boom and blade cylinder protection guard. Exposed ground level hydraulic hoses are spiral steel wrapped for added protection.

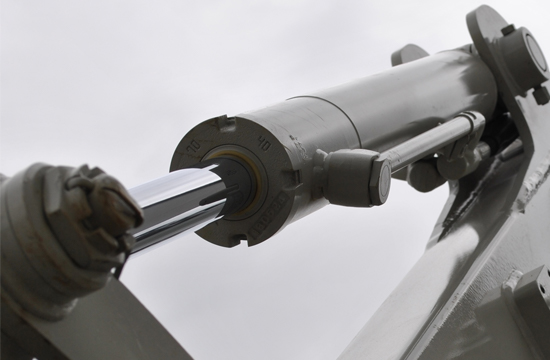

Reduced Shock
Cushioning on the heavy-duty boom, arm and swing cylinders improves component longevity, dependability and operator comfort.

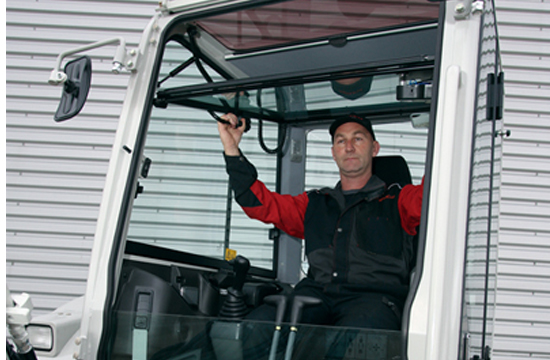

Comfort and Convenience
The operator’s cabin on the TB240 is well appointed and spacious for outstanding comfort. Sky view top window and sunshade along with MP3 Bluetooth and USB socket.
Interactive Multi-Informational Display
Easy to read in all lighting conditions. Large visual display keeps the operator informed on the status of the machine including control of auxiliary flow settings.
All Day Comfort

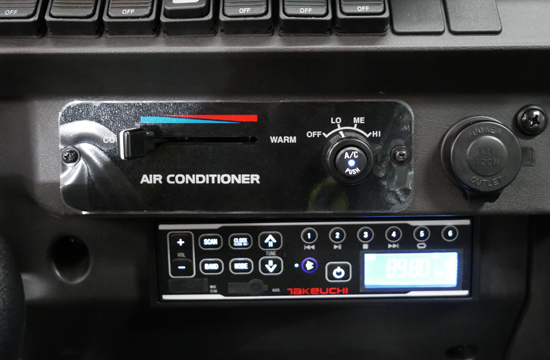

All-round adjustable deluxe high back suspension seat. Radio and stereo speakers along with Air-con fitted as standard.
Pilot Operated Joysticks
Deliver smooth precise responsive control. Combined with an adjustable arm rest to help provide a comfortable operating position for the precision pilot controls.
LED Lighting
New style wider beam LED workzone lighting offers enhanced on-site visibility in low light conditions.

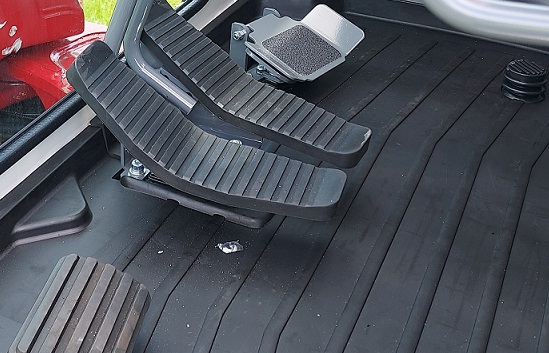

Large Foot Pedals
The cab is well appointed for outstanding comfort. Excellent in-cab foot and leg room, fully supported foot travel controls alongside foot rests and offset function pedal.

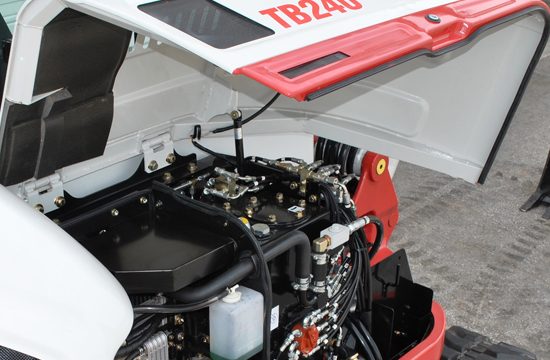

Maximum Access
Maximum accessibility for daily routine service. The large hinged and key lockable covers are accessed without any tools required – full 270° of service access.

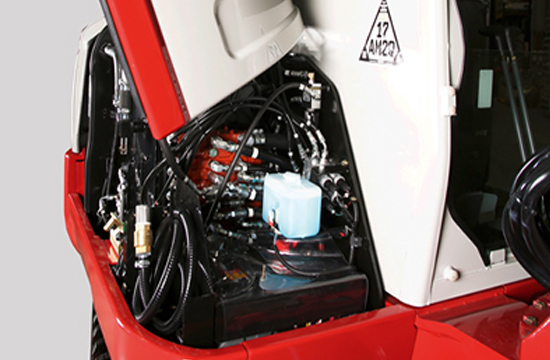

Easy to Service
Reliable and service friendly, exceptional service access provides outstanding access to the control valve, hydraulic lines and hydraulic tank.

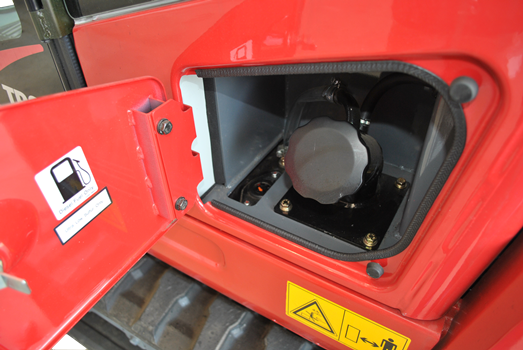

Lockable Fuel Fill
Electric refuelling pump . A remote gauge assists when refuelling and a self-bleed system for easy restarts if the machine runs out of fuel.

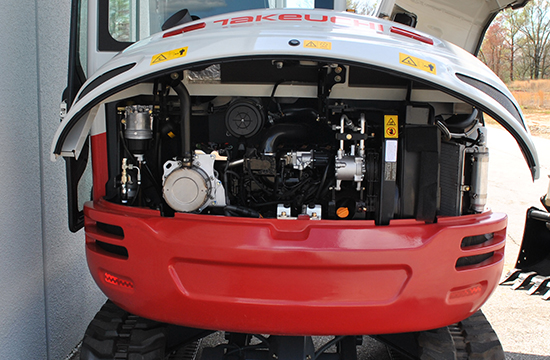

Rear Engine Access
Provides convenient access to daily checks and routine maintenance points.
On-board Power
Internal 12v and USB power sockets and switch activated external roof mounted beacon socket for site ready compliance.

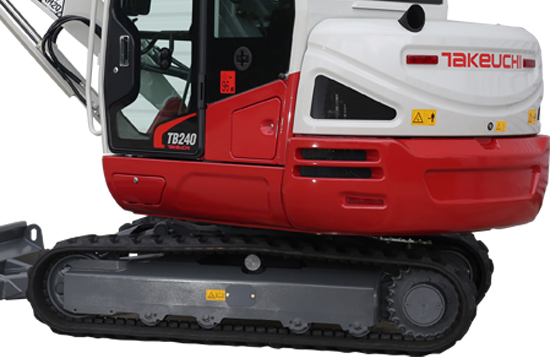

Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers.
