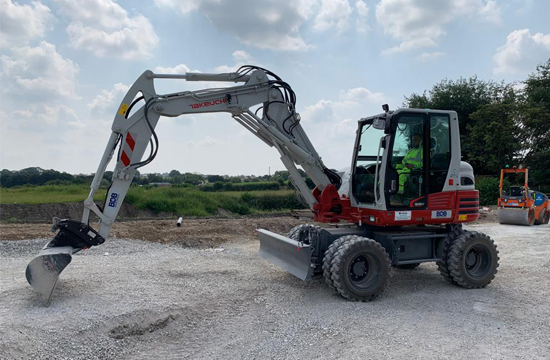

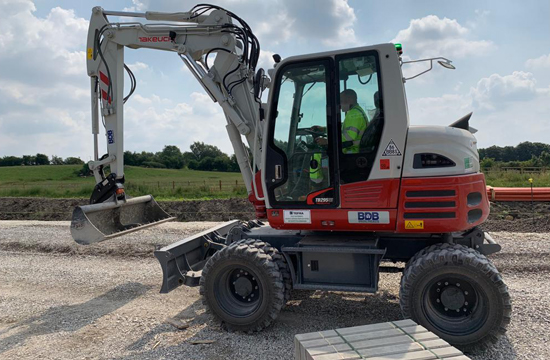

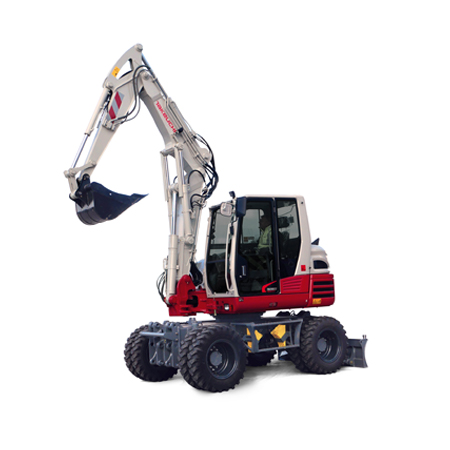

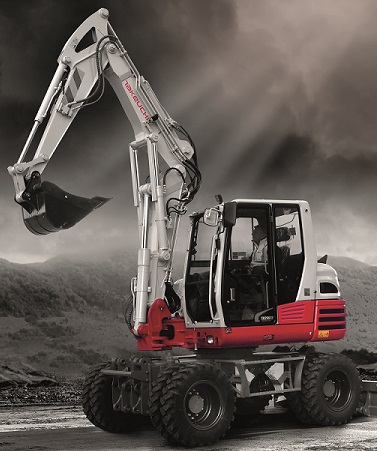

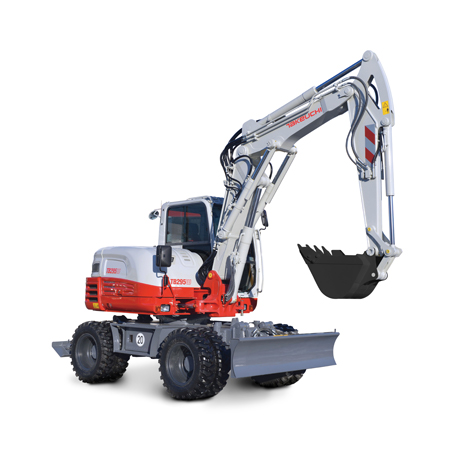

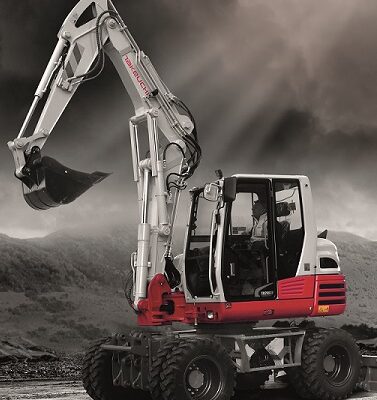

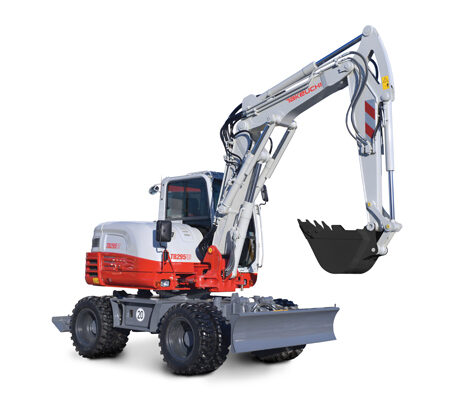

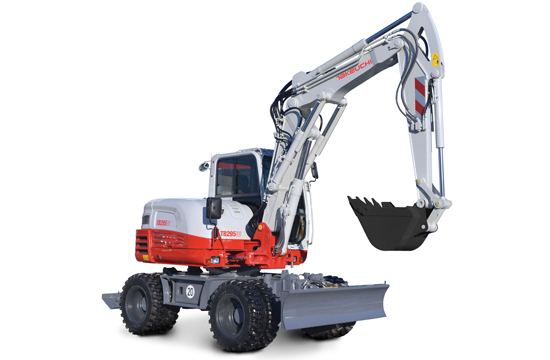

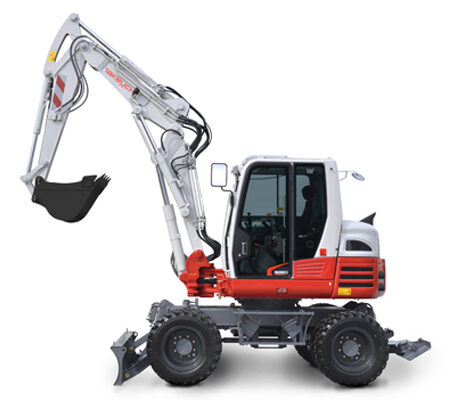

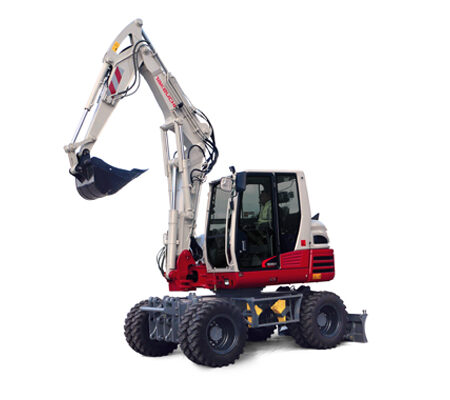

TB295W Wheeled Excavator | 9.5 Tonne

TB295W is a highly versatile wheeled excavator that has on-road capabilities coupled with powerful excavating performance. Multiple hydraulic circuits and attachment presets enhance versatility, and the locking differentials allow the machine to perform in demanding applications. Offering excellent arm and bucket breakout power and travel speed up to 30kph. TB295W is a road legal vehicle when registered and taxed.
Available as standard 2-piece boom and optional mono boom.

Product Details


Large Wraparound Counterweight
Large Interactive Multi-Information Colour Display
Wide-Angle Colour Rear-View Camera with Auto-reverse Activation Displays Split Screen
Fully Adjustable Deluxe Heated HighBack Air Suspension Seat
Adjustable Arm Rests and Drinks Holder - Heated
Digital Air Con with Climate Control System
Radio - AM/FM/MP3 Radio/Aux-in/USB/Bluetooth
3x In-Cab Power Sockets 12V/24V/USB
Rain Guard / Sky Light with Retractable Sun Blind
Gas Lift-Assist Retractable Front Window, Removable Lower Front Window In-Cab Storage, Twin Sliding (60-40) Blind-Side Window
Cab Mirror - 6 Blindspot Mirrors
Roof Guard - Optional
Sealed Rocker Switches
Emergency Engine Shut-down Switch
24 Volt System / Twin Batteries
Switched Roof Beacon Power Socket - 24V
Front of Cab External Power Socket - 24V
3 x hi-visablility LED workzone lighting - Cab, Boom and Side Cover
All-Round Road Ready Driving Lights
Travel Alarm - Optional
TFM (Takeuchi Fleet Management)
TSS (Takeuchi Security System Immobilizer)
Stage V Ready - DPF - Low Emissions - SCR - DPF - AdBlue
High Pressure Common Rail Fuel Injection
Automatic Fuel Bleed System
Dual Fuel Filtration with Water Trap Sensor
Dual Element Air Filter
High Capacity Radiator
Automatic Idle and Eco Work Mode
Hand & Foot Control for Throttle
AdBlue Tank with Audible Refill Level Alarm
Electric Refuelling Pump with Extended Length
Service Interval - 500 hours
Hydraulic Pilot Controls with Dual Pilot Accumulators
Cushioned Boom, Arm, and Swing Cylinders
Boom Arm and Blade Holding Valves
Multiple Attachment Presets / Password Protected Aux Settings
Switched 1/2-Way Aux Flow
Proportional Auxiliary Controls with Detent
Primary Auxiliary Circuit with Auto Tank
Aux Ports: 1st + 2nd Aux, 3rd Hardlock for Hitch, 4th Aux Optional
Large Hydraulic Reservoir with Fluid Level Sight Gauge
Robust Undercarriage with intergrated Outrigger Mounts
Axel Lock / Diff Lock / Boom Swing Lock
Tilt and Rake Steering Wheel position
4-Speed Travel, Travel Speed of 30kph with Auto-Cruise
Twin Wheels with Heavy Duty Industrial Tyres - 14 ply
OnBoard Anti-Roll Brake Chocs x 2
OnBoard Lockable Heavy Duty Tool Store for Chains, Shackles and Straps
Heavy Duty Dozer Blade - Twin Cylinder with Dual Burst Protection Valves
Heavy Duty Prop-Shaft Guard
Heavy Duty Anti-Slip Steps
Heavy Duty In-line Outriggers - Optional
Large Fully Supporting Foot Travel Pedals
Foot Rests & Foot Controlled Offset


Rated Output (kW) /RPM/HP85/2200/113.9
Displacement (cc)3621
Electrical System24v 90a
Weight 2 piece with blade Incl Fuel, Hitch, Bucket (kg)10377
Operating Weight 2 Piece & Outriggers Incl Fuel, Hitch, Bucket (kg)10667
Overall Length 2 piece with blade / with outriggers6565 / 6815
On Road Length travel posture 2-piece with blade / with outrigger (mm)5020 / 4880
Overall Length Mono (mm)6435
Width (mm)2335
Height (mm)3010
Ground Clearance (mm)320
Dozer Blade (W x H) (mm)2300 x 500
Front swing Radius (mm) 2705
Rear Slew Radius (mm)1690
Main System Pressure (bar)275
Pump TypeVariable piston x 2 + gear pump X 3
1st Aux Max Flow (l/min)120
1st Aux Max Pressure (bar)200
2nd Aux Max Flow (l/min)55
2nd Aux Flow Pressure (bar)200
Standard Aux1st 2nd & 3rd
Optional Aux 4th
3rd Aux Used for Hitch
Slew Speed (rpm)10.1
Slew MotorConstant Volume Piston
Slew BrakeWet Friction Plate
Tyre Size (PR)8.25 -20 14
Drive LineAll Wheel Drive
Travel  BrakeDisc & Brake Lock
SteeringFront Setting System
Tyre Pressure (psi)95
Maximum Gradeability35°
Hydraulic System (l)200
Fuel Tank (l)162
Engine Lubrication (l)10
Cooling System (l)27
AdBlue Tank (l)10
Noise Level Sound Power Level (LwA) 99 dB
Vibration Hand Arm / Body  m/sec²≤2.5 / ≤0.5
Hydraulic Breaker TKB402-S, TKB802-S,
HitchHydraulic Quick Hitch.

Operating Dimensions

Max Digging Depth 2-piece (mm)4095
Max Dump Height 2-piece (mm)6240
Max Reach at Ground Level 2-piece (mm)7450
Max Vertical Digging Depth 2-piece (mm)3525
Max Bucket Digging Force (kN)58.9
Max Arm Digging Force (kN)39.7
Max Travel Speed (km/h)29.1
Weight 2 piece with blade Incl Fuel, Hitch, Bucket (kg)10225
Operating Weight 2 Piece & Outriggers Incl Fuel, Hitch, Bucket (kg)10625
Overall Length 2 piece with blade / with outriggers 6555
On Road Length travel posture 2-piece with blade / with outrigger (mm)5580
Width (mm)2380
Height (mm)3055
Ground Clearance (mm)320
Dozer Blade (W x H) (mm)2300 x 500
Boom Swing Angle (L/R)68° / 59°

Takeuchi Fleet Management (TFM)

TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.

TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.

TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.

Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.

Download TFM UK Brochure (PDF)

TSS - Takeuchi Security System

Takeuchi security system as standard.

  • Only programmed keys for start-up
  • Un-programmed keys alert operator via VDU and alarm
  • Includes 1 red master and 3 black user keys (programme up to 13 user keys)

Trust in Takeuchi for…

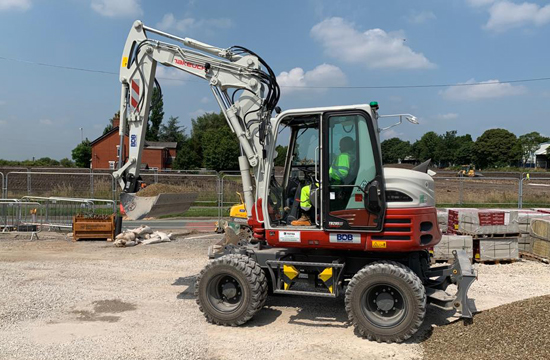

Road Ready Takeuchi
30km/hr travel speed and auto cruise facility, the TB295W is ideal for on-road highways and street works applications. The added height of TB295W gives excellent all-round operator visibility on-road and on-site with in-built reversing camera as standard.

Turbo Power Performance
85kW Deutz, Stage V turbo engine with AdBlue for low emission zones, with increased horsepower and greater torque for improved performance. Easy switch to Eco-mode combined with auto-idle and dial throttle control for reduced emissions and fuel saving economy.

Safety On-Site and On-Road
Highly efficient oil immersed hydraulic brakes. Selectable switch from manual to auto axle lock when excavating.
A strong and proven drivetrain incorporating switchable diff-lock to deal with rough terrain.

Maximum Working Ranges
With an advanced two-piece boom the operator can navigate around site utilities far easier.
Operators get greater versatility when operating attachments.
The 2-piece can retract the boom, to move closer to machine centre – enhancing lift performance and outlifting a mono boom.

Heavy Duty Dozer
A larger than average parallel lift dozer blade as standard provides added excavating stability.

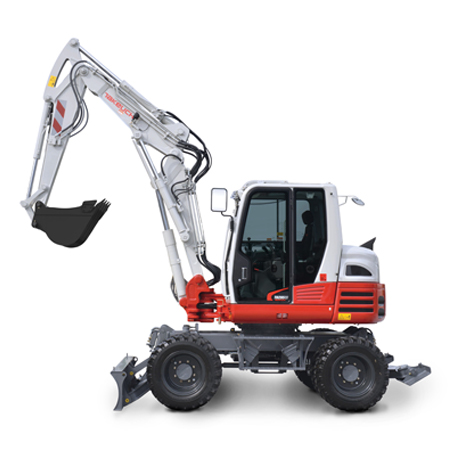

Independent Out-Riggers
Factory fitted option.
Easy to position to provides additional stability that might be required on gradients and un-even terrain.

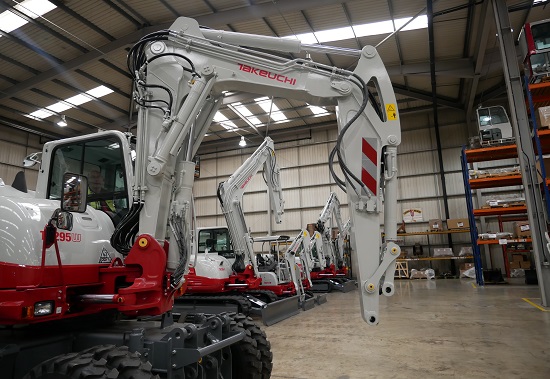

Attachment Ready
1,2,3 auxiliary standard, 3rd Aux pre-piped with hitch pipework, 4th Aux optional.
Standard 1st and 2nd Aux come with proportional control, isolation valves and operator adjustable flows with switch activated auto detent and auto tank on the 1st auxiliary.

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.

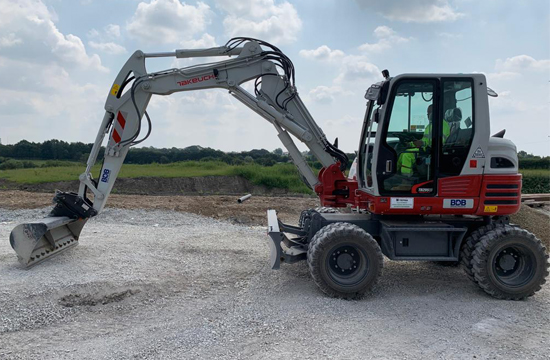

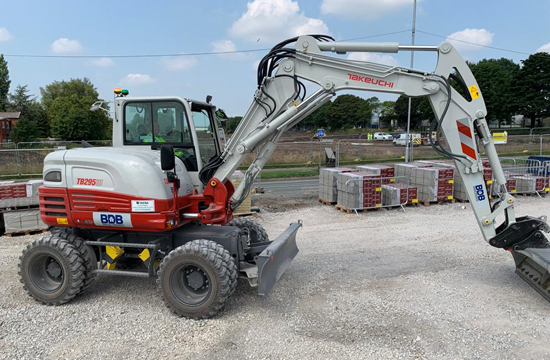

2-piece boom
With twin boom rams well positioned to reduce the risk of damage when loading trucks helps deliver smoother more responsive arm control.

On Site Safety
Fitted with hose burst check valves, lift overload alarm and switched beacon socket, along with auto reverse camera and LED workzone lighting.

Robust for Site
The heavy-duty king post, pins and bushes are built robust for the most demanding working environments.

Robust Axle Undercarriage
Highly efficient oil immersed hydraulic brakes with locking foot brake pedal, switch activated parking brake and selectable switch from manual to auto axle lock when digging. Onboard wheel chocs and lockable steel tool box.

LED Workzone Lighting
High powered LED workzone lighting fitted as standard.
Optional Roof Guard
Provides an added level of protection, OPG Level II.

LCD Multi Information Display
Full colour easy to read in all light conditions. Combines split screen for both operating functions and auto activating reversing camera.

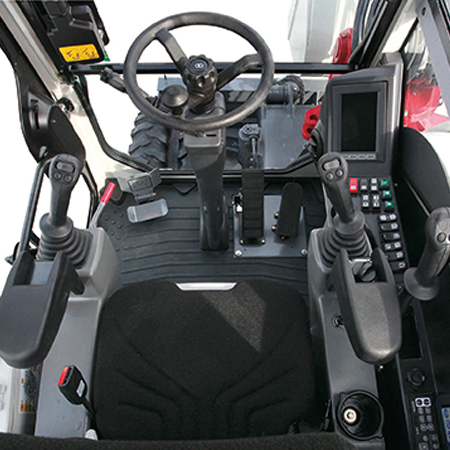

Comfortable Drive
An easy to drive wheeled option packed with on-road features and a strong focus on operator comfort for all sizes of operator; both height and rake adjustable steering, height adjustable arm rests,

Maximum All-Day Comfort
Superior cab access and cushioned isolated cab with 10-way adjustable high back heated air suspension seat provides for the operator’s optimal position for all day driving and excavating.

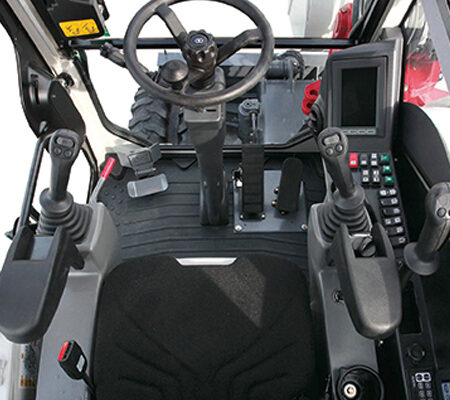

 Styled Interior
Features intuitive controls, digital air-con climate control as standard along with retractable front window, wiper, rain-guard and sunshade 12V, 24V and USB power sockets,  Along with stereo radio with Bluetooth  and a heated cup holder.

Optimal Operation
Foot throttle and brake are positioned to optimize ease of use and operator comfort. Selectable hand or foot engine speed control to suit operator preference.

Maximum On-site Visibility
Rear fisheye mirror, blind-side mirrors, auto rear view colour camera, roof window with retractable blind  provide all round visibility. Three forward facing powerful LED work lamps deliver outstanding onsite visibility

Rear Engine Access
The new Stage V engine with DPF, SCR and AdBlue emission after-treatment.
500 hour service intervals.

Ground level easy access
Access points for the battery and regular service points, side cover allows easy access to the control valve, fuel tank, DEF tank, and battery.

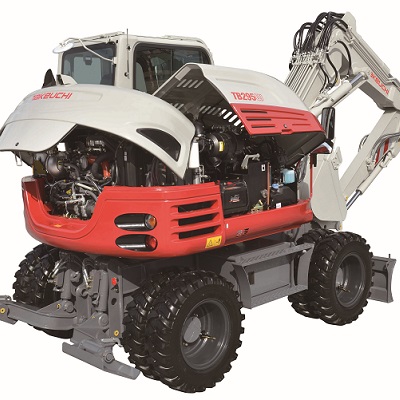

Maximum Access
Maximum 270° serviceability: with hinged service access panels, key-locked for added on-site security. The quick drain oil and fuel reservoirs help reduce machine downtime.

Lockable Fuel Fill
Electric refuelling pump with automatic shut-off and extended hose. AdBlue tank with audible filling alarm.
The fuel self-bleed system with high capacity fuel filters provides for easy restarts if the machine runs out of fuel.

Undercarriage Versatility
The undercarriage has universal outrigger and blade mounting points at both ends of a TB295W, provides for a bespoke undercarriage setup.

Service Features
Easy access cooling system with new radiator coolant sight gauge.
Large toolbox under the cab supplied with grease gun and operator tool bag.
