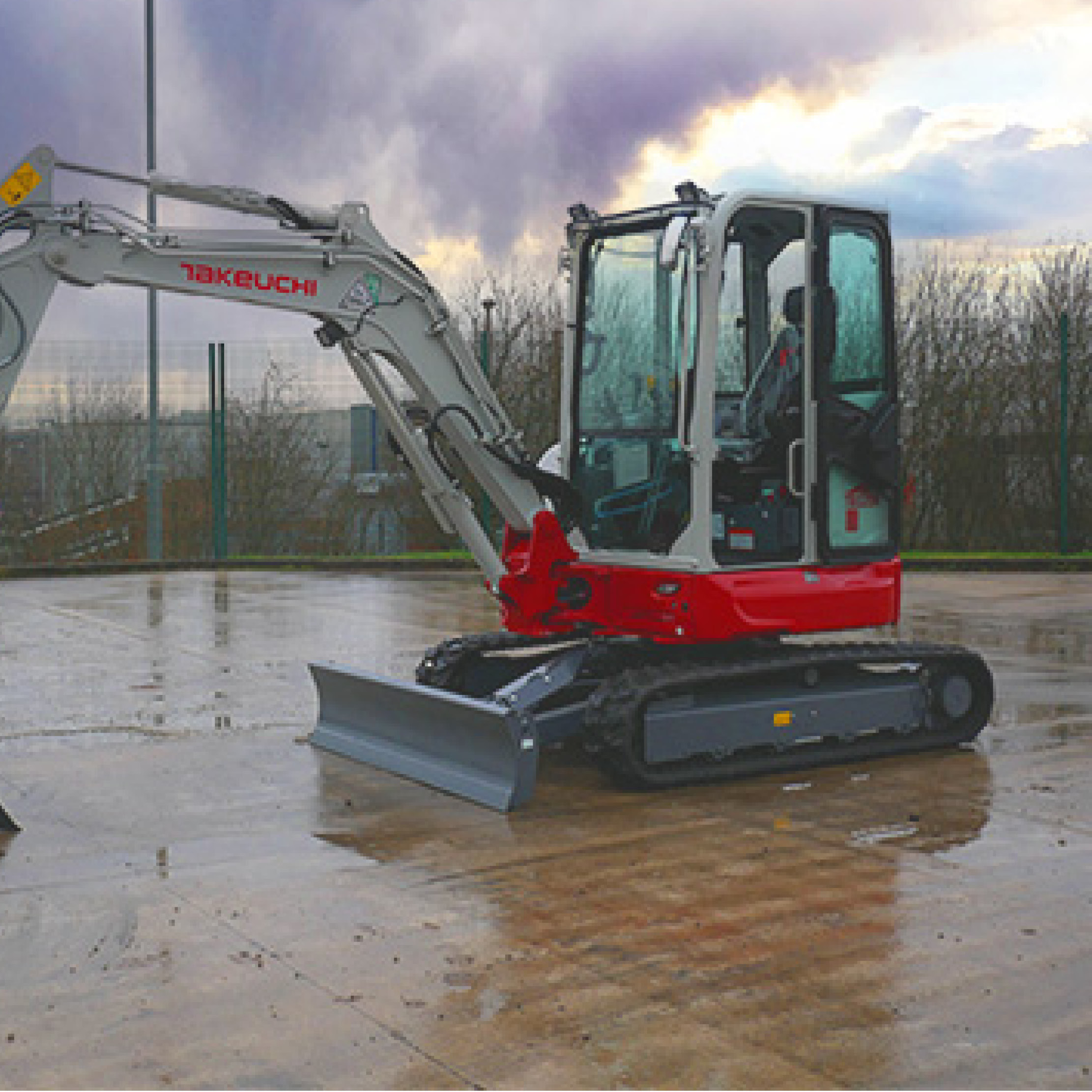

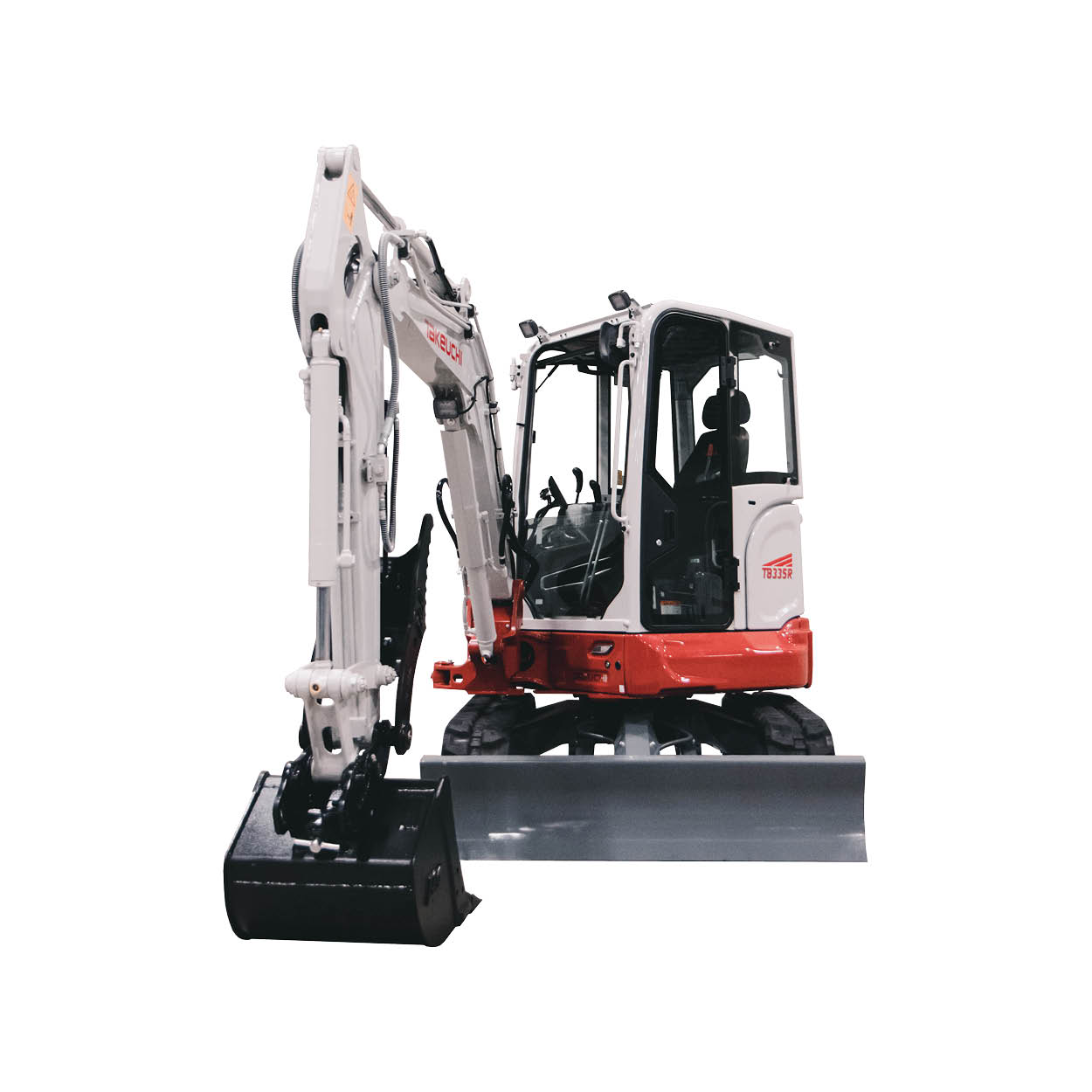

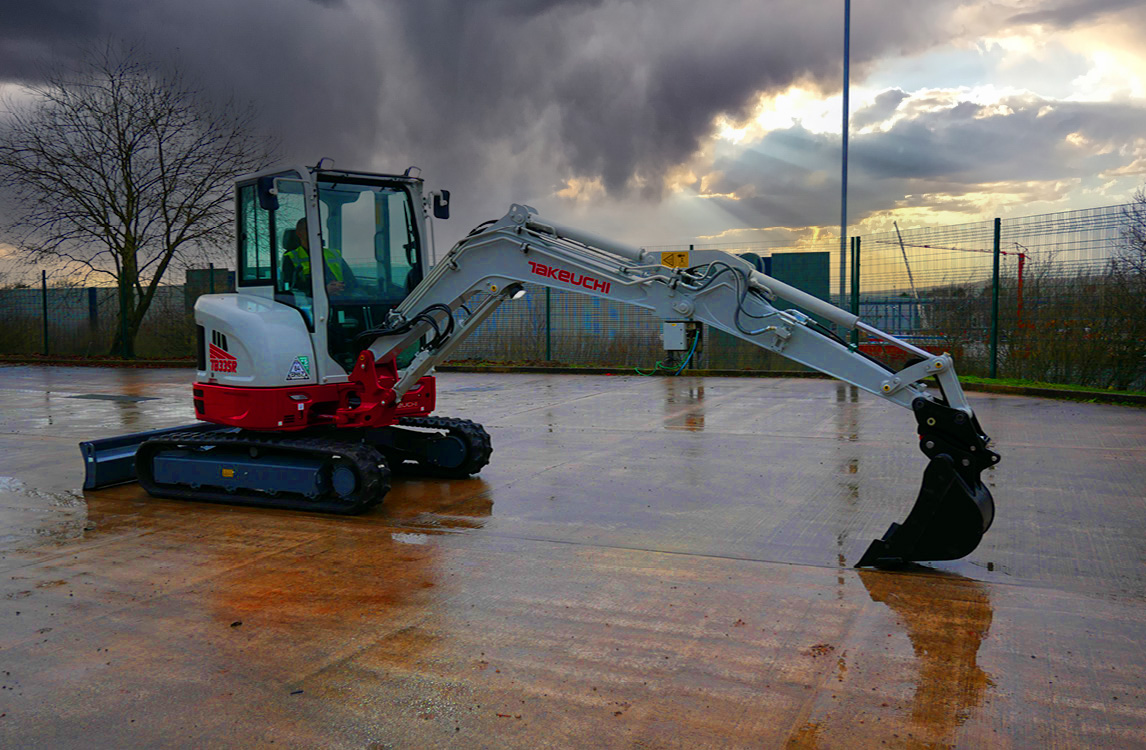

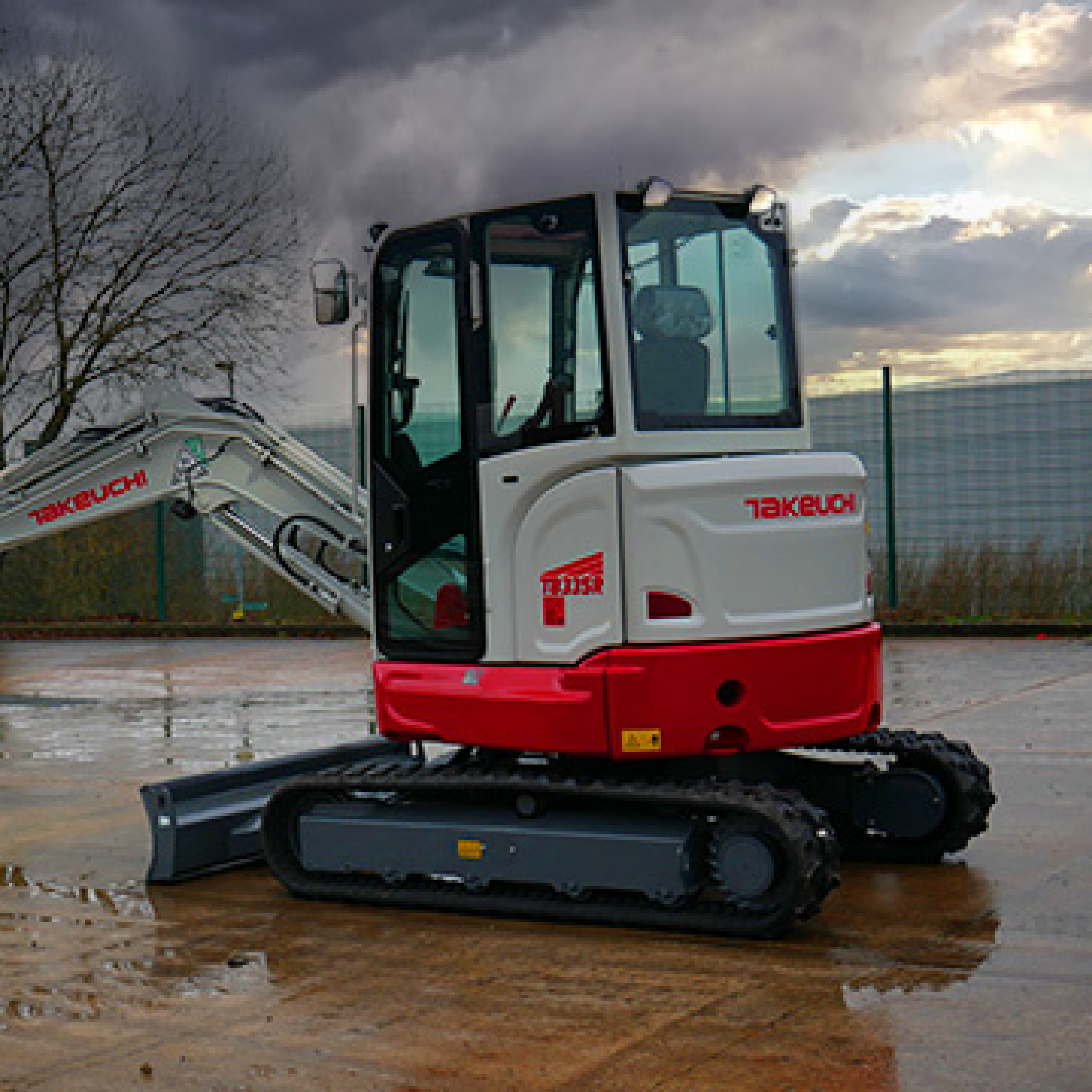

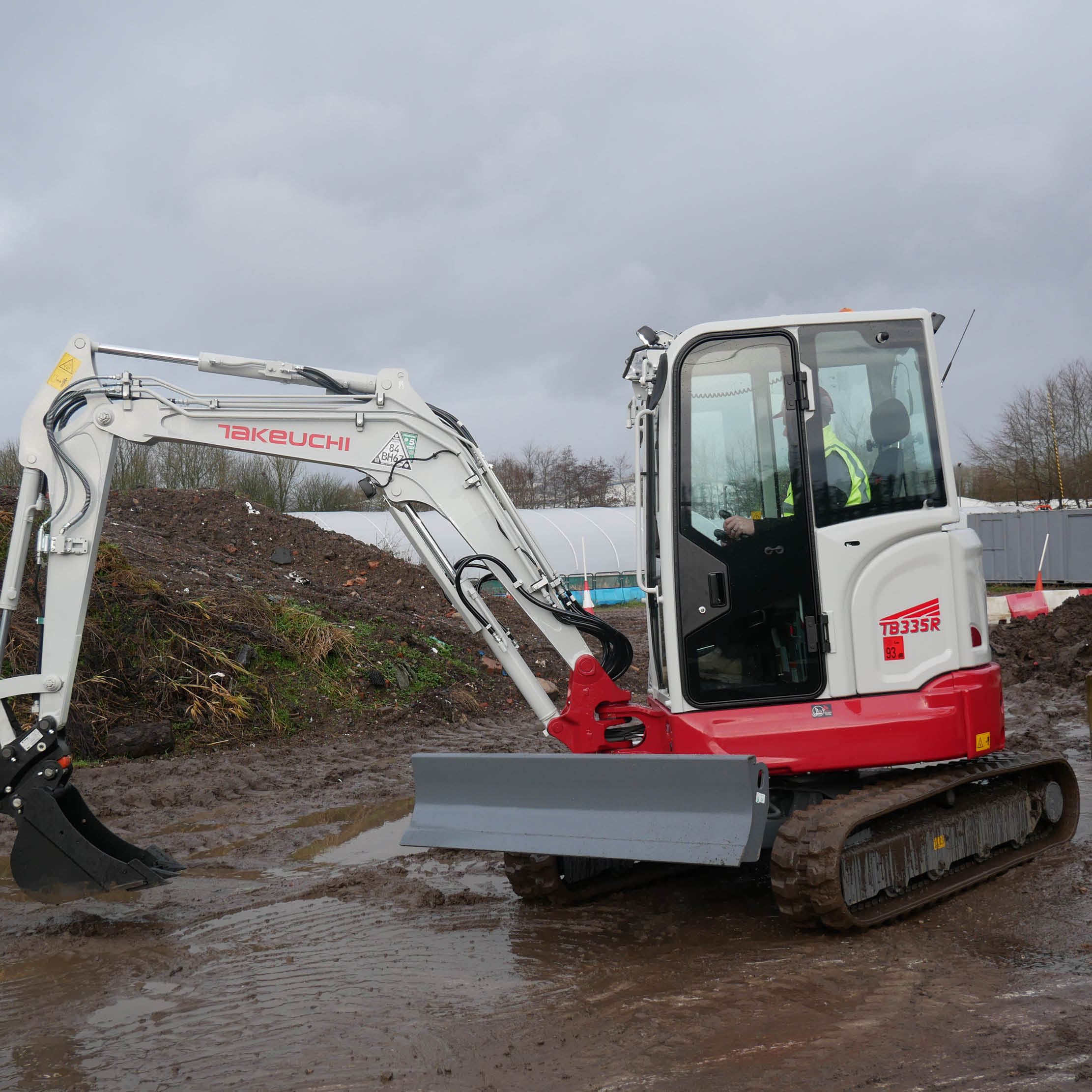

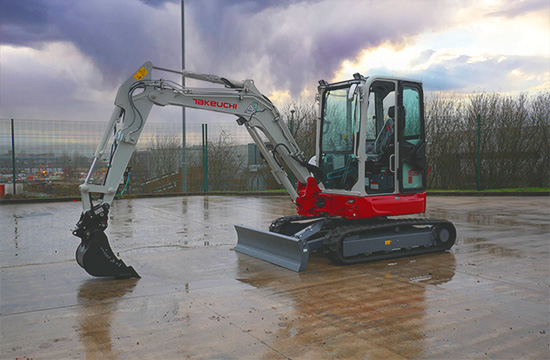

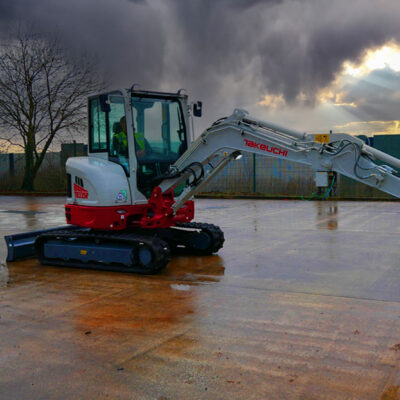

TB335R Compact Excavator | 3.5 Tonne
From the New 3-Series Takeuchi Excavator Range, the TB335R Compact Excavator offers exceptional power and performance. Packed full of impressive features that come as standard with the latest Takeuchi automotive styled interior for maximum comfortable control.
Product Details
Features
| TB335R Features |
|---|
| Cab (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Large 7" Touchscreen Interactive Multi-Information Colour Display |
| Automotive Styled Jog Dial - Variable Function Controls -RPM / AC / Heater / Radio / Aux Settings |
| Fully Adjustable Deluxe HighBack Suspension Seat and Headrest with Integrated Retracting Seat Belt |
| Tool-free Adjustable Arm and Elbow Rests. |
| Convenient Storage Console with Drinks Holder |
| Air Con with Climate Control System and Easy Access in-cab Ventilation / Pollen Filters |
| Skylight with Sunshade/ Rain Guard |
| In Cab - DAB / AM / FM / USB / Bluetooth & Microphone socket |
| 2x In-Cab Power Sockets 12V/USB |
| Gas Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel. Sliding Blind-Side Window |
| Enhanced Blind-side Visibility with a Lower and Larger Offside Window and a Sliding Rear-side Window |
| Bolt-on Handrails - ( cab x 1, door x 1 ) |
| Cab Mirror - 3 Blindspot Mirrors |
| Multi Vent Heaters x 6 / De-mister |
| Extended Folding Foot Travel Pedals - Fully Supported and Adjustable |
| Foot Rests & Foot Controlled Offset |
| Document Storage Compartment |
| ELECTRICAL |
| Multi-Switch Control Panel / Jog Dial Function Control |
| Roof Beacon Power Socket - 12V - Switched |
| Full LED Workzone Lighting Front / Rear and Internal Courtesy LED Lighting |
| Lift Overload Alarm |
| Travel Alarm/ Horn |
| Emergency Engine Shut-down Switch |
| Electrical Refuelling Pump with hose cradle and shut-off suction valve |
| TSS (Takeuchi Security System Immobilizer) |
| Easy Access Fuse Box |
| ENGINE |
| Stage V Ready (<19kW) - Low Emissions |
| Auto Decel |
| Automatic Idle |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| High Capacity Radiator with Foldout Condenser Access.. |
| Engine Safe Start System |
| Large Cooling System Capacity |
| Working Modes: Standard & Eco |
| Service Interval - 250 hours |
| HYDRAULICS |
| In cab Easy Access Floor Panels to Hydraulic Valves and Components |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom, Arm, and Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| Auxiliary Flows Adjustable from Touch Screen |
| Multiple Attachment Presets / Password Protected Aux Settings |
| Proportional Auxiliary Controls with Detent |
| Primary Auxiliary Circuit with Auto Tank |
| Aux Ports: 1st + 3rd (pre-piped for Hitch), 2nd and 4th Aux Optional |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Large Hydraulic Reservoir with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Heavy Duty Dozer Blade with Switch Activated Blade Float |
| Dozer Cylinder Protection Guard |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Automatic Load Sensing 2 Speed Travel |
| Maintenance-free Sealed Bearing Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Secure-sure Tie-down Anchor Points |
Specifications
| ENGINE | |
|---|---|
| Make | KUBOTA |
| Model | V1505- E4B |
| Rated Output (kW)/RPM | 18.2/2300 |
| Maximum Torque (Nm) | 95.8 |
| Cylinders | 4 |
| Displacement (cc) | 1498 |
| Electrical System | 12volt / 64amp |
| DIMENSIONS & WEIGHT |
|
| Machine Operating weight (kg) inclusive of bucket, hyd hitch , fuel | 3818 |
| Overall Length for transport (mm) | 4890 |
| Overall Length Dozer at rear (mm) | 5440 |
| Width (mm) | 1740 |
| Height (mm) | 2520 |
| Dozer Blade (W x H) (mm) | 1740x395 |
| Ground Clearance (mm) | 295 |
| Min Front Offset Swing (mm) | 1860 |
| Tail Swing (mm) | 950 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 245 |
| Pump Type | Variable Displacement and double gear |
| 1st Aux Max Flow (l/min) | 64 |
| 1st Aux Max Pressure (bar) Variable | 210 |
| 2nd Aux Max Flow (l/min) | 21 |
| 2nd Aux Pressure Flow (bar) Variable | 206 |
| Standard Aux | 1st + 3rd Pre-Piped for Hydraulic Hitch |
| Optional Aux | 2nd Optional |
| SWING SYSTEM | |
| Slew Speed (rpm) | 9 |
| Slew Motor | Axial Piston |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 400 |
| Ground Contact Length (mm) | 1750 |
| Travel Speed (kph) | 3.0-4.1 |
| Ground Pressure (kpa) | 32.2 |
| Maximum Gradeability° | 25 |
| CAPACITIES | |
| Hydraulic System (l) | 59 |
| Fuel Tank (l) | 43.5 |
| Engine Lubrication (l) | 6.7 |
| Cooling System (l) | 12.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB102-S |
| Hitch | |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Operating Weight inclusive of bucket, hitch and fuel (kg) | 3818 |
| Max Digging Depth (mm) | 3205 |
| Max Dump Height (mm) | 3530 |
| Max Reach at Ground Level (mm) | 5305 |
| Max Vertical Digging Depth (mm) | 2505 |
| Max Bucket Digging Force (kN) | 27.1 |
| Max Arm Digging Force (kN) | 19.1 |
| Travel Speed (km/h) | 3.0 - 4.1 |
| DIMENSIONS & WEIGHT | |
| Length (Transporting) (mm) | 4890 |
| Width (mm) | 1740 |
| Height (mm) | 2520 |
| Ground Clearance (mm) | 295 |
| Dozer Blade (W x H) (mm) | 1740 x 300 |
| Min Front Offset Swing (mm) | 1860 |
| Tail Swing (mm) | 950 |
| Boom Swing Angle (L/R) | 70°/55° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
Power Performance
The TB335R offers a powerful short tail alternative in the 3.5 to 4-tonne weight class

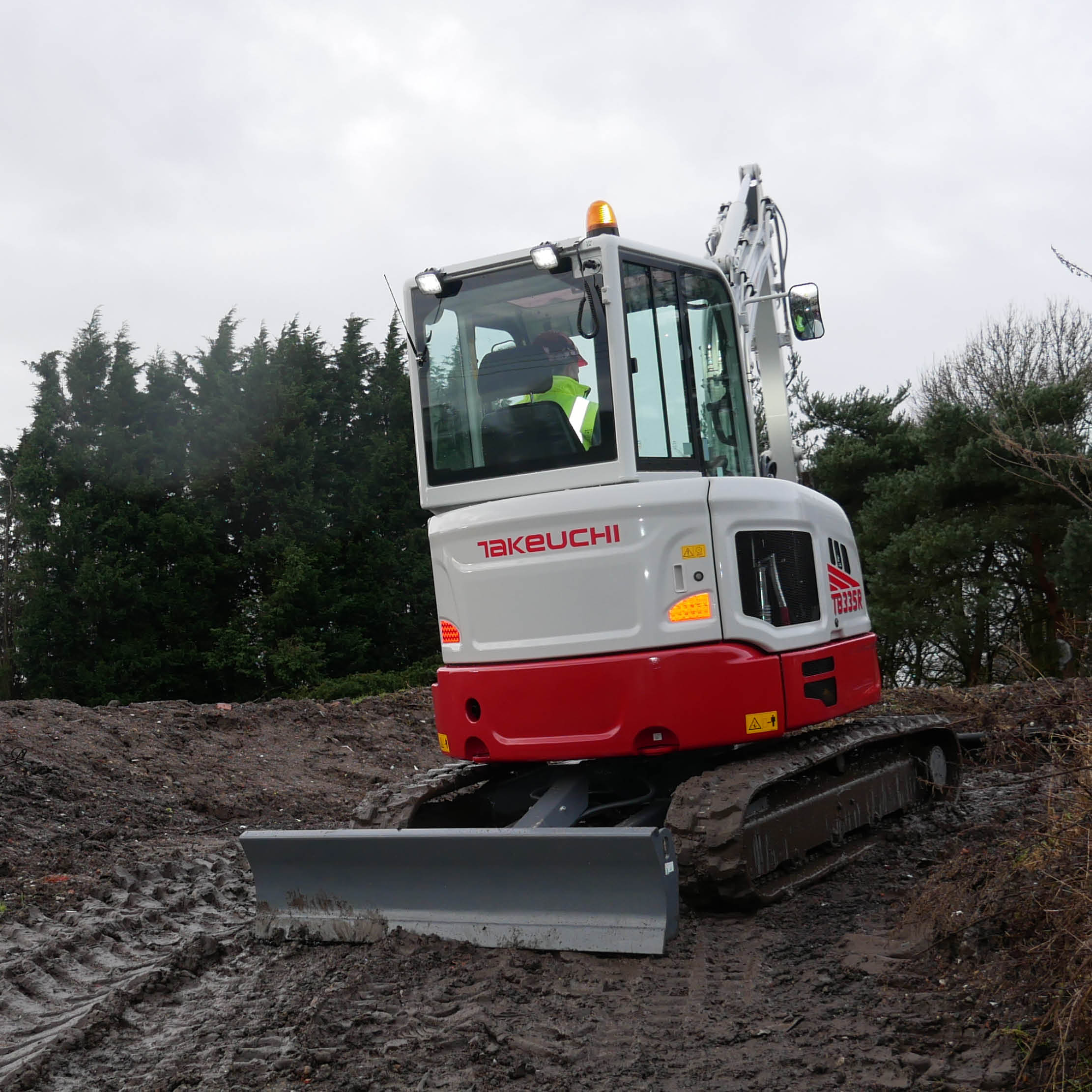

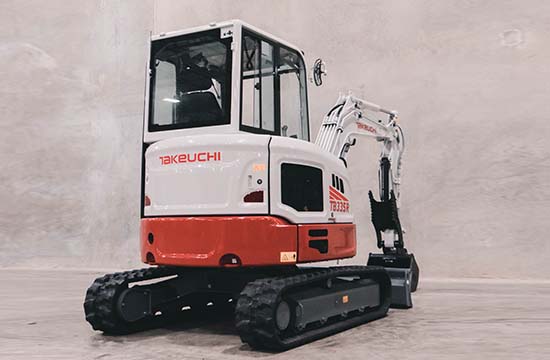

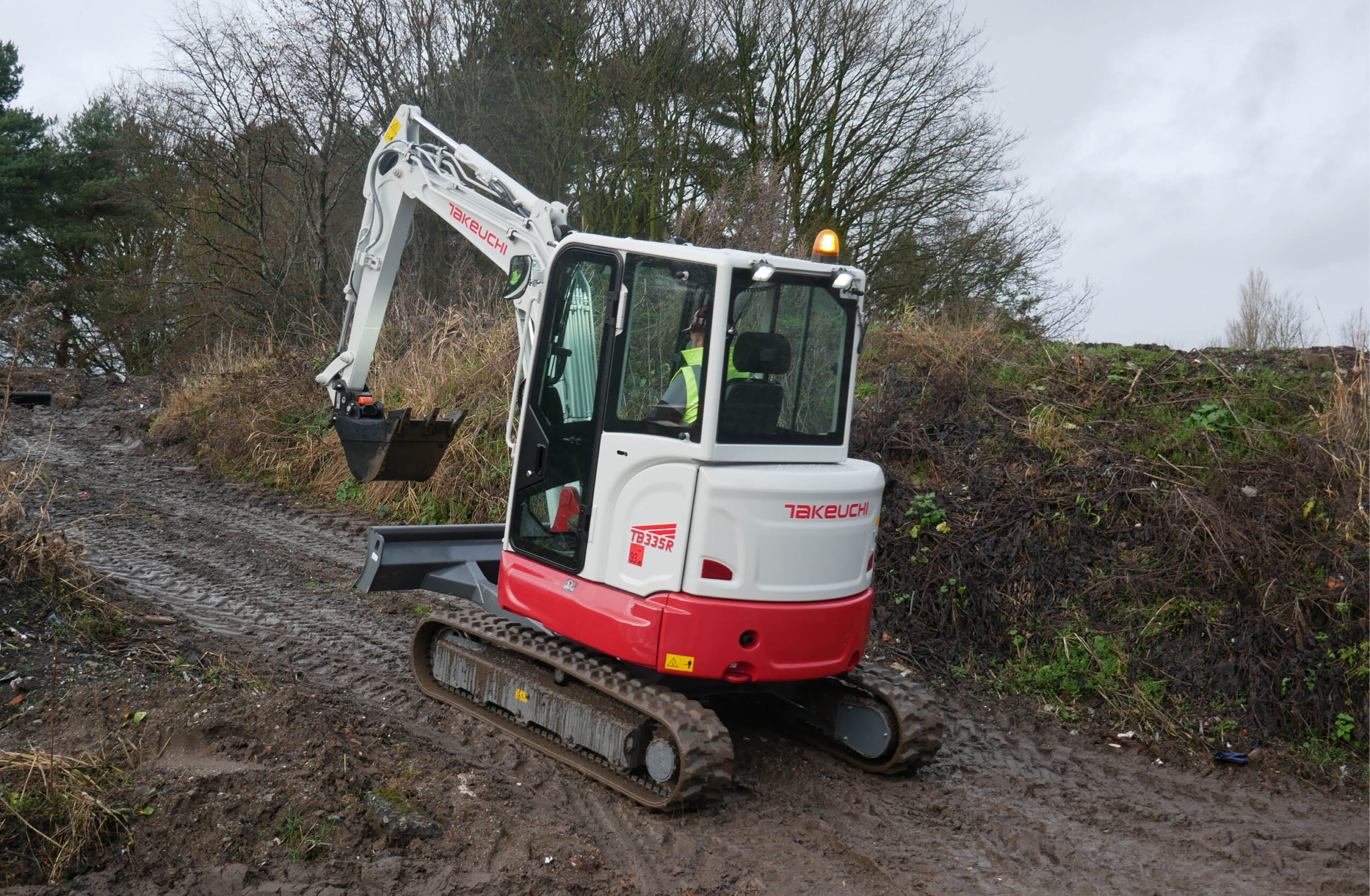

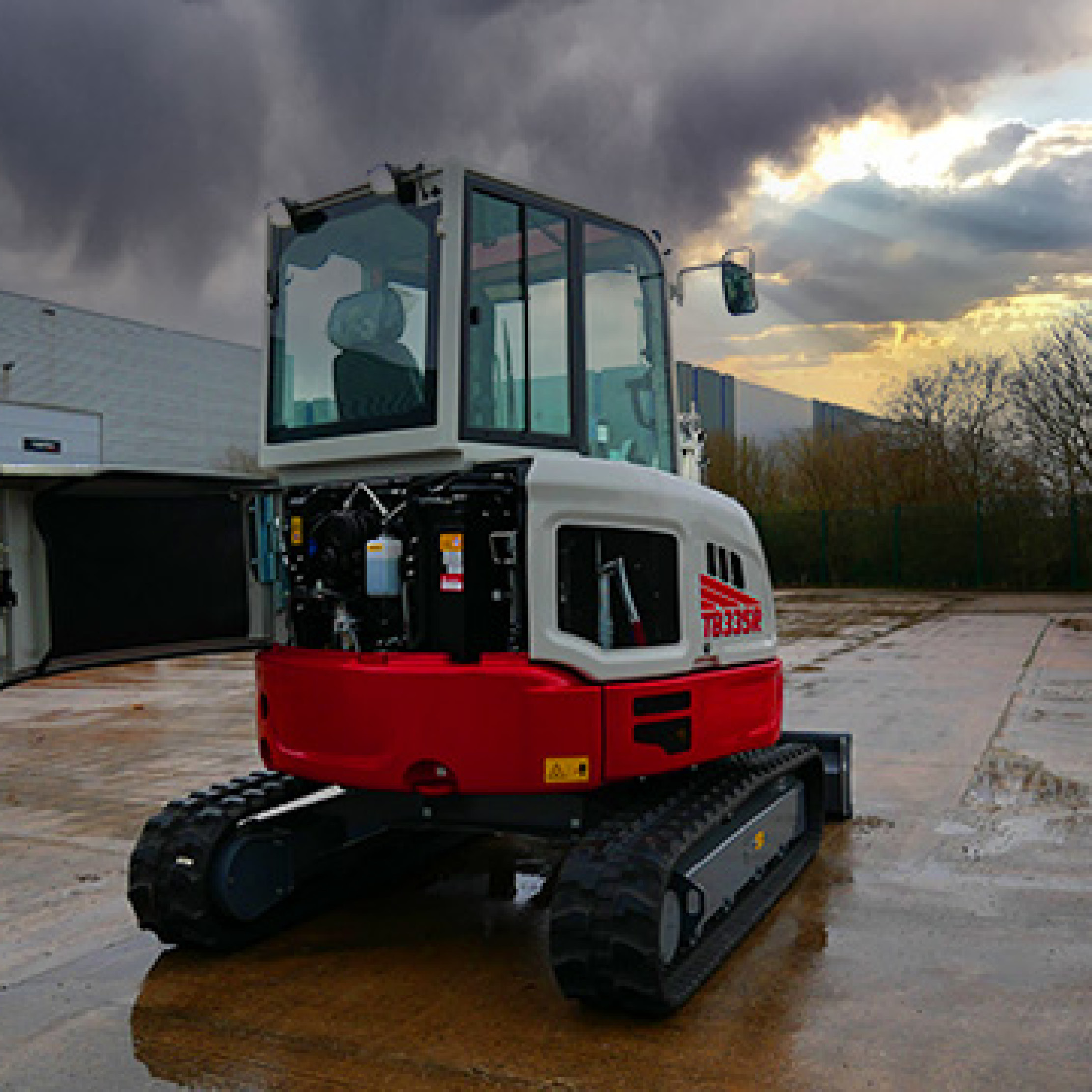

Short tail swing design
Allows the TB335R to get to work in confined job sites with little concern for rear swing impact.
Automatic Step Down Travel Motors Provide torque on demand when pushing, climbing, or turning in high speed mode.
Multiple Auxiliary Hydraulics
Simplify installation of hydraulic attachments improving productivity and limiting downtime
Stay in Your Seat
Hydraulic flow can now be adjusted from the comfort of the operator’s seat with two-way auxiliary hydraulics plumbed to the arm for greater attachment versatility.

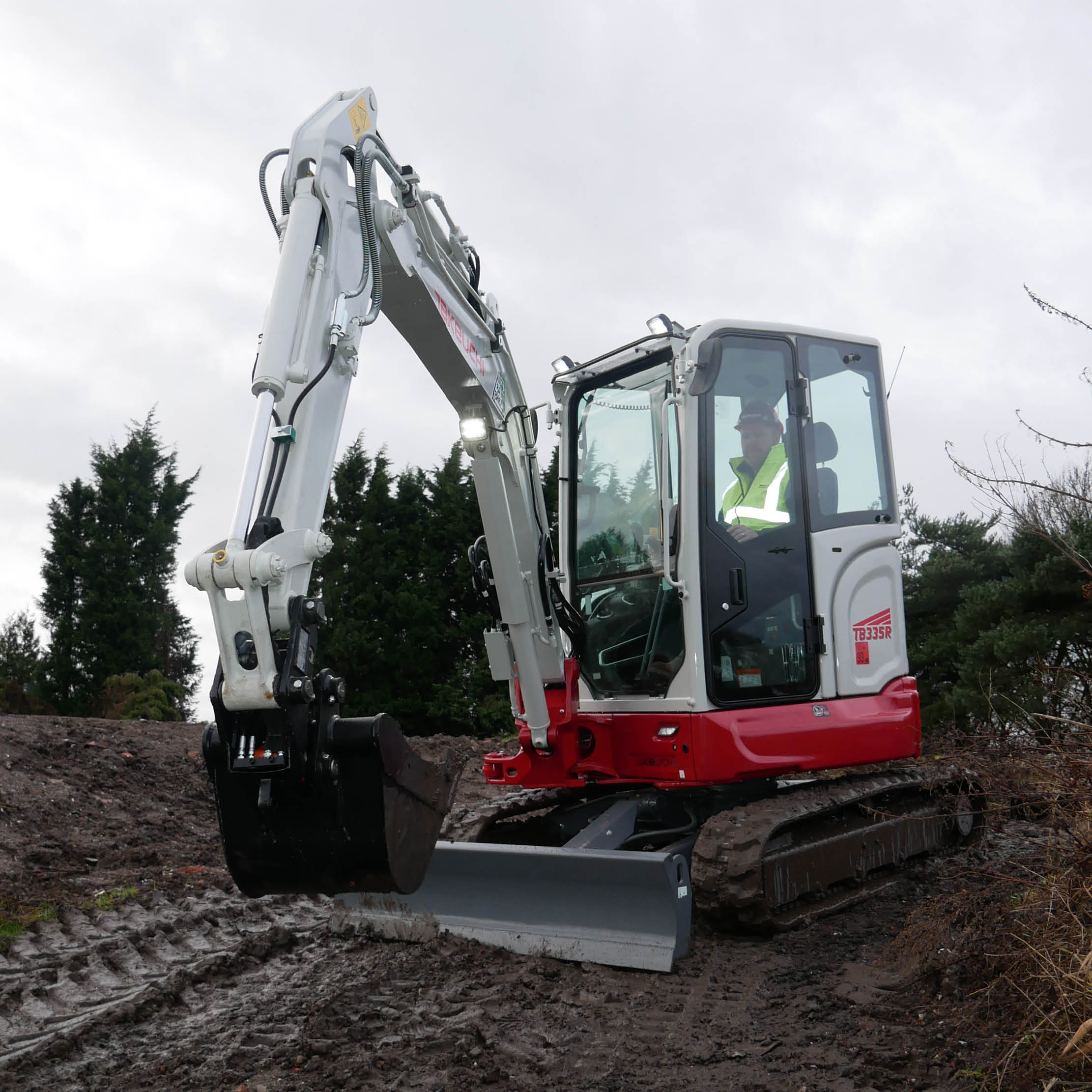

Operating Parameters
The TB335R offers excellent operating parameters for digging depth and dump height on a stable platform with the longer than average track frame.
All Steel Construction
The engine hood and right side cover are all steel for increased durability. The large entry door-way has bolt-on handles on cab and door.

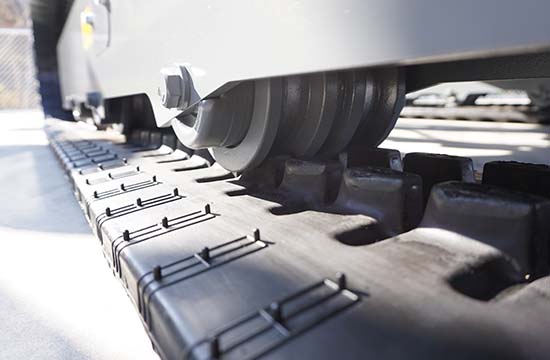

Triple Flange Track Rollers
Provide increased roller to rail contact improving track retention for smother travel.
Heavy Duty Counterweight Offers wrap around protection and contributes to the excellent stability
TOPS / ROPS / OPG Cab
Provides maximum all round safety providing the operator with greater peace of mind. With lift alarm and travel alarms and added LED for added safety on-site.

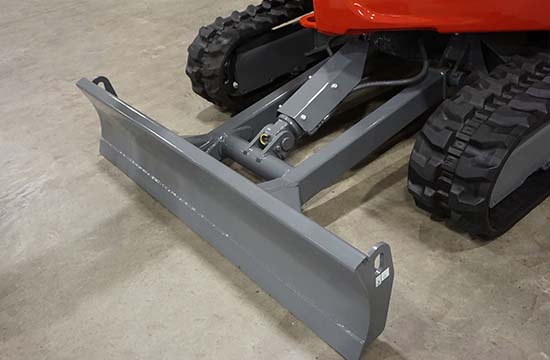

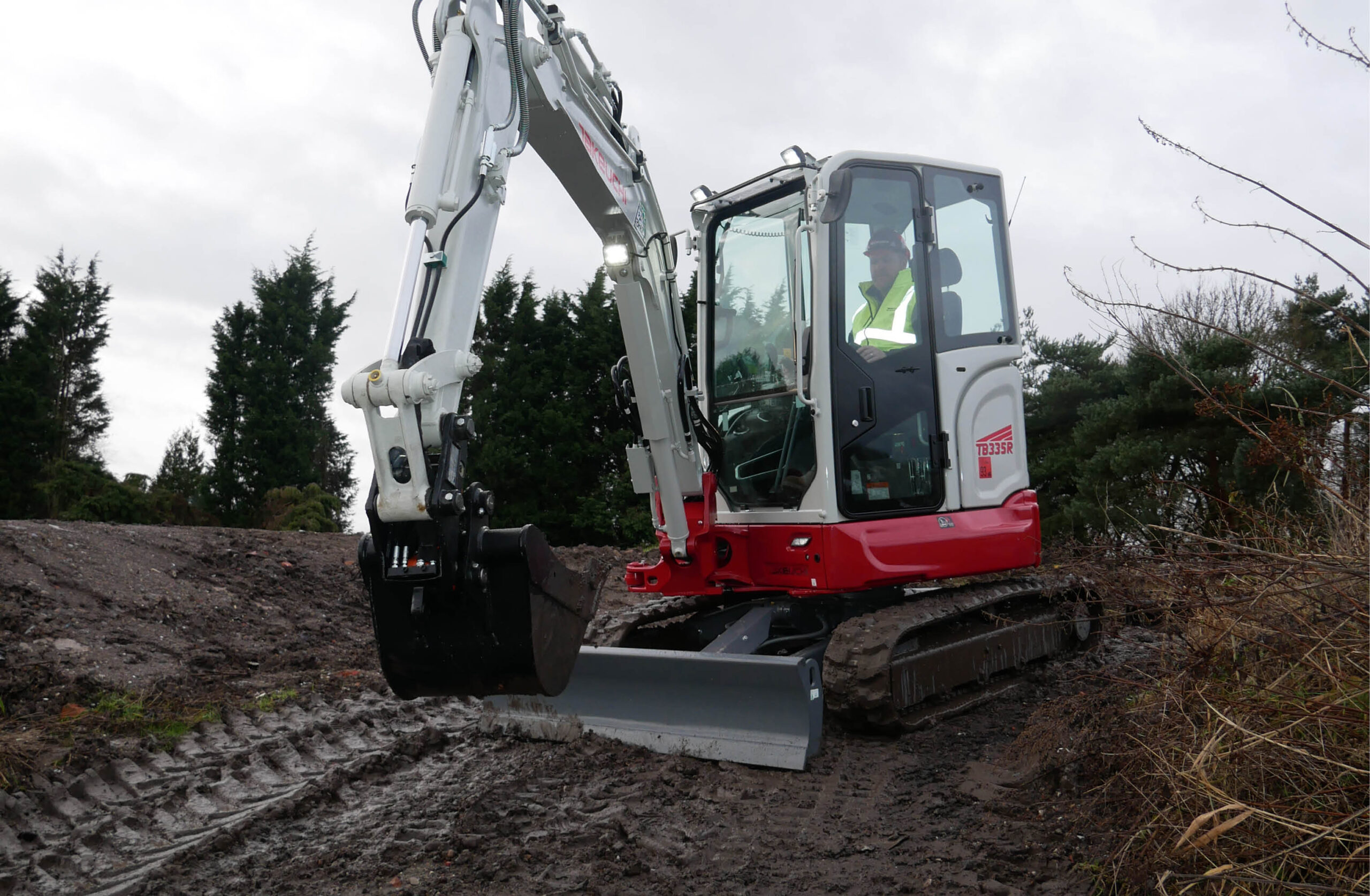

Heavy Duty Blade
Integrated gusset reinforcements and large blade cylinder give you the strength and durability. The float blade is switch activated for added functionality when finishing.
Reduced Shock

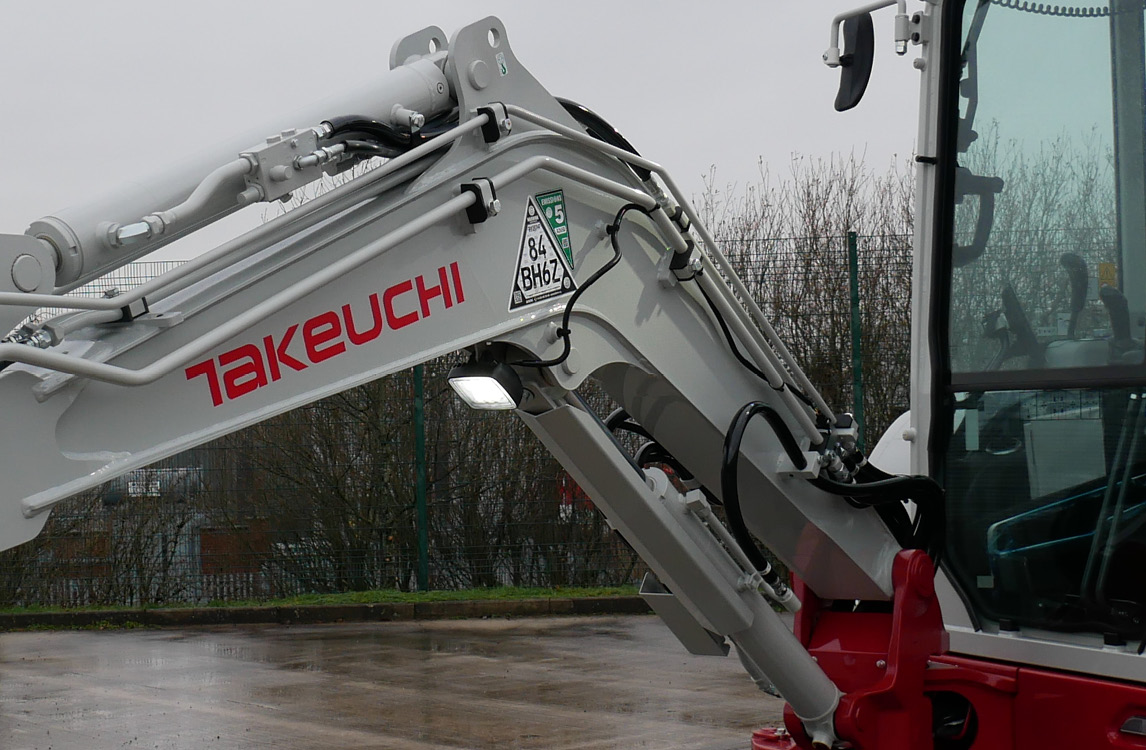

Cushioning on the heavy-duty boom, arm and swing cylinders improves component longevity, dependability and operator comfort.
Comfort and Convenience

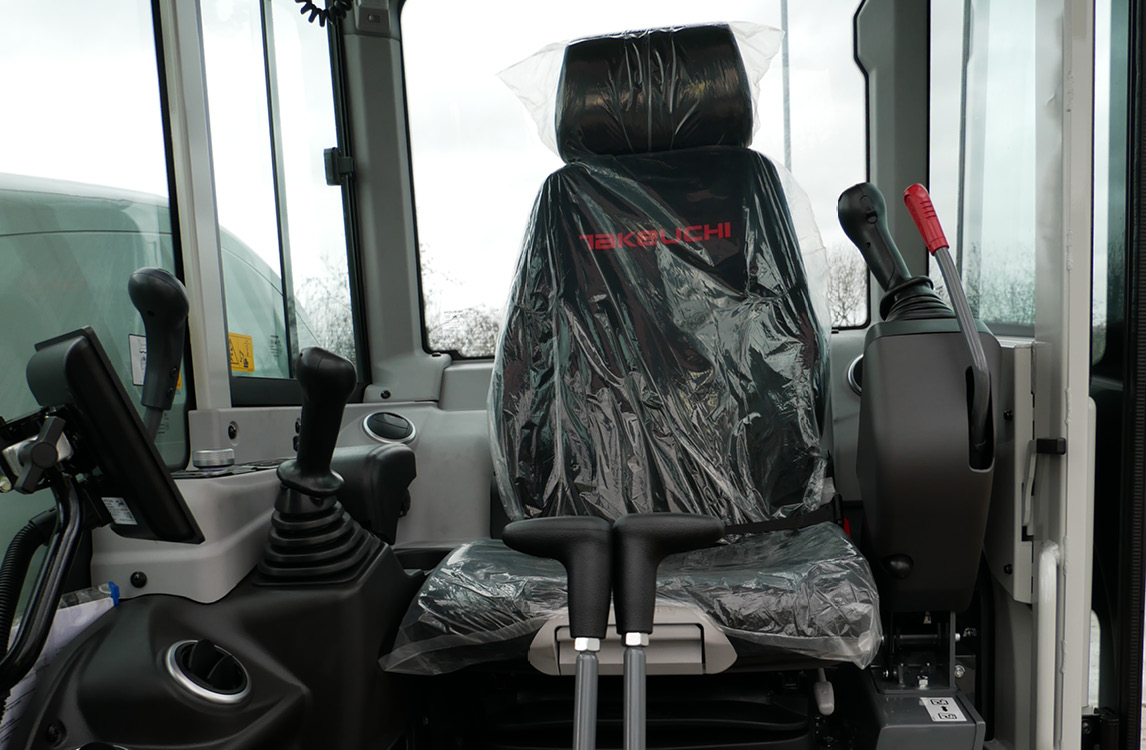

The operator’s cab on the TB335R is well appointed and spacious for outstanding comfort for all day operating. Sky view top window and sunshade along with DAB radio, phone microphone socket, Bluetooth and USB socket.

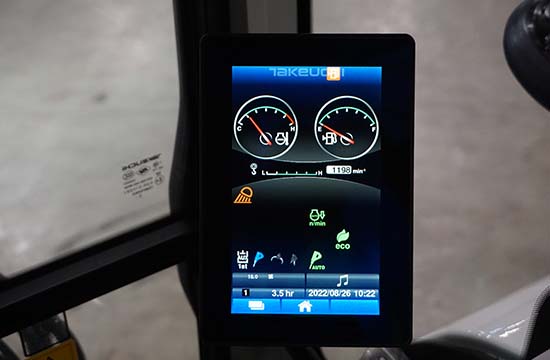

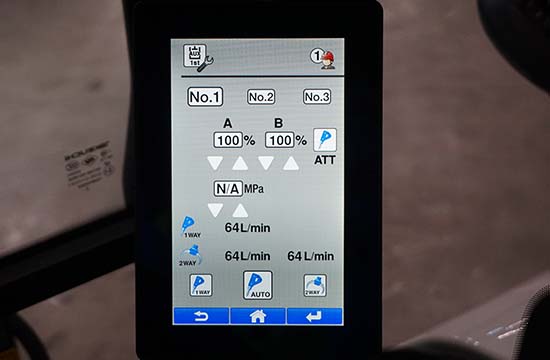

7” Colour Touch Screen Display (CAB) The most machine functions and settings, including air conditioning, radio and hydraulic flow adjustment can be quickly accessed through 7” touch screen display for maximum convenience.

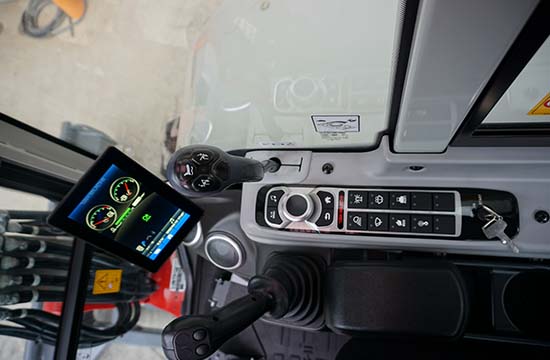

Intuitive Jog Dial & Multi-Switch Control Panel
Key machine features can be controlled by new designed jog dial for a more intuitive operation. The multi-switch control panel offers simple and durable touch pad control of common functions.

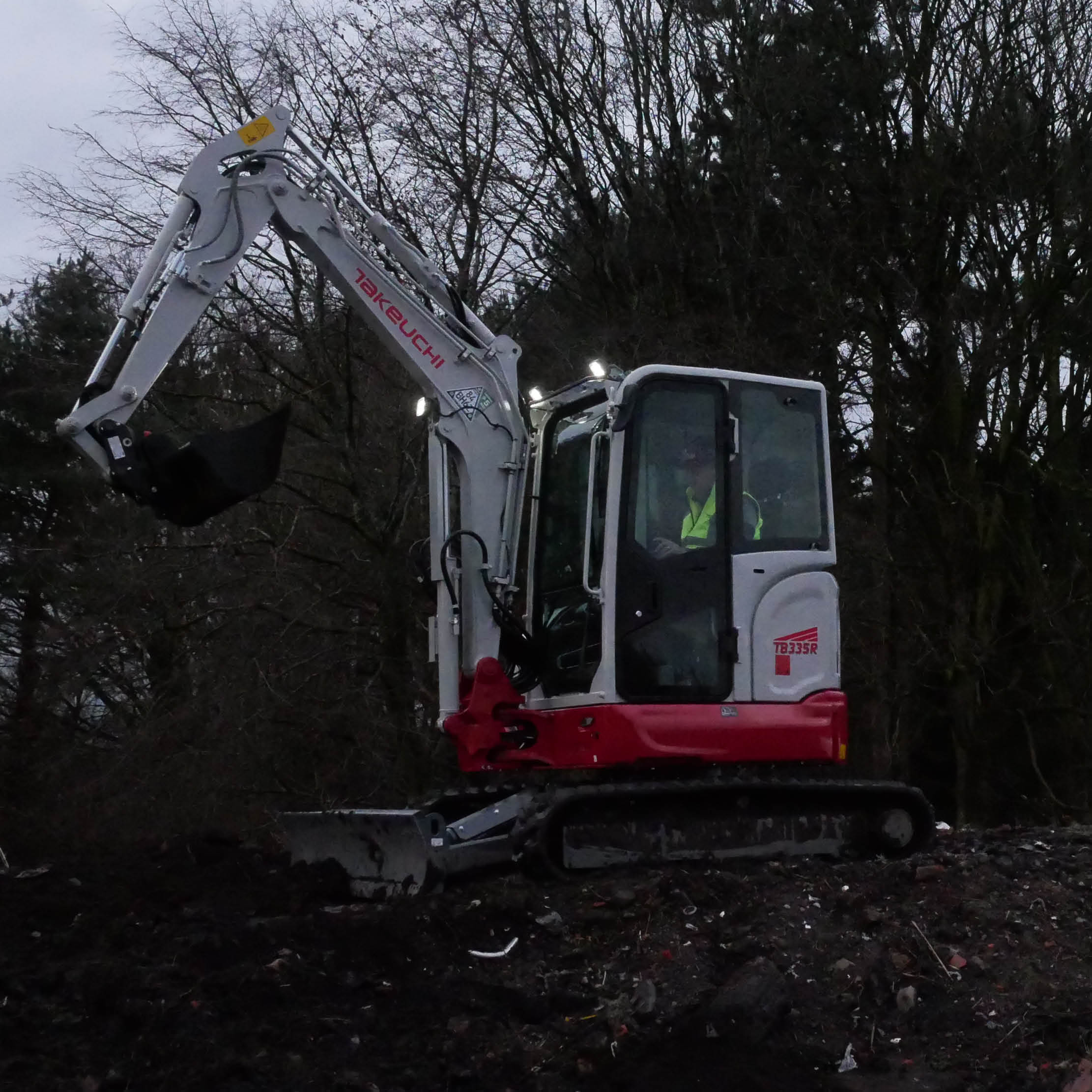

LED Lighting The TB335R compact excavator features all around LED work-zone lighting for maximum visibility and safety on-site, with internal LED lighting as standard.

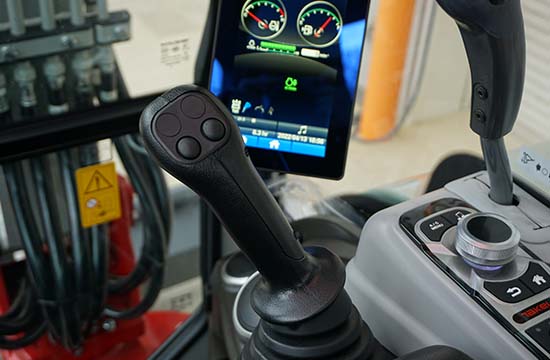

Pilot Operated Joystick Controls Deliver precise responsive controls, and are low effort reducing fatigue.

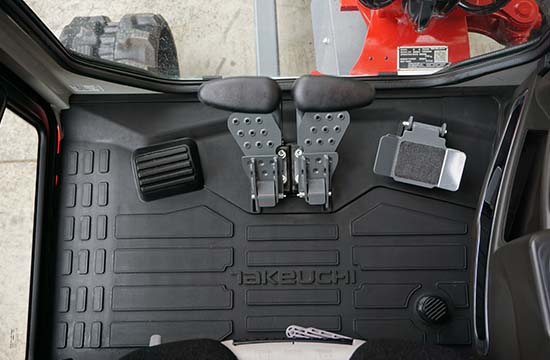

Large Foot Pedals
The cab is well appointed for outstanding comfort. Excellent in-cab foot and leg room, adjustable fold-away fully supported foot travel controls alongside foot rests and offset function pedal

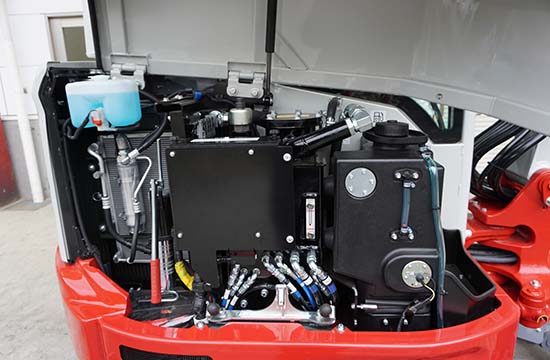

Maximum Access
Maximum accessibility for daily routine service. The large hinged and key lockable covers are accessed without any tools required – full 270° of service access.
Easy to Service
Reliable and service friendly, exceptional service access via in-cab easy lift removable floor plates and cab-front access to hydraulics

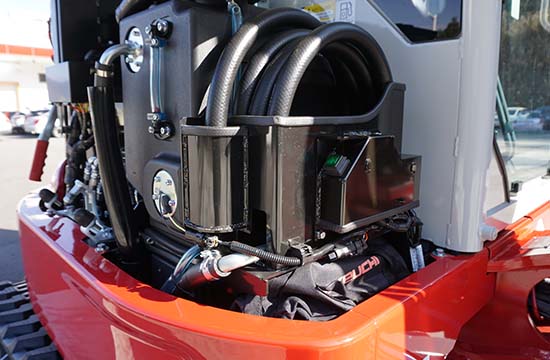

Lockable Fuel Fill
Electric refuelling pump . A remote gauge assists when refuelling and a self-bleed system for easy restarts if the machine runs out of fuel.

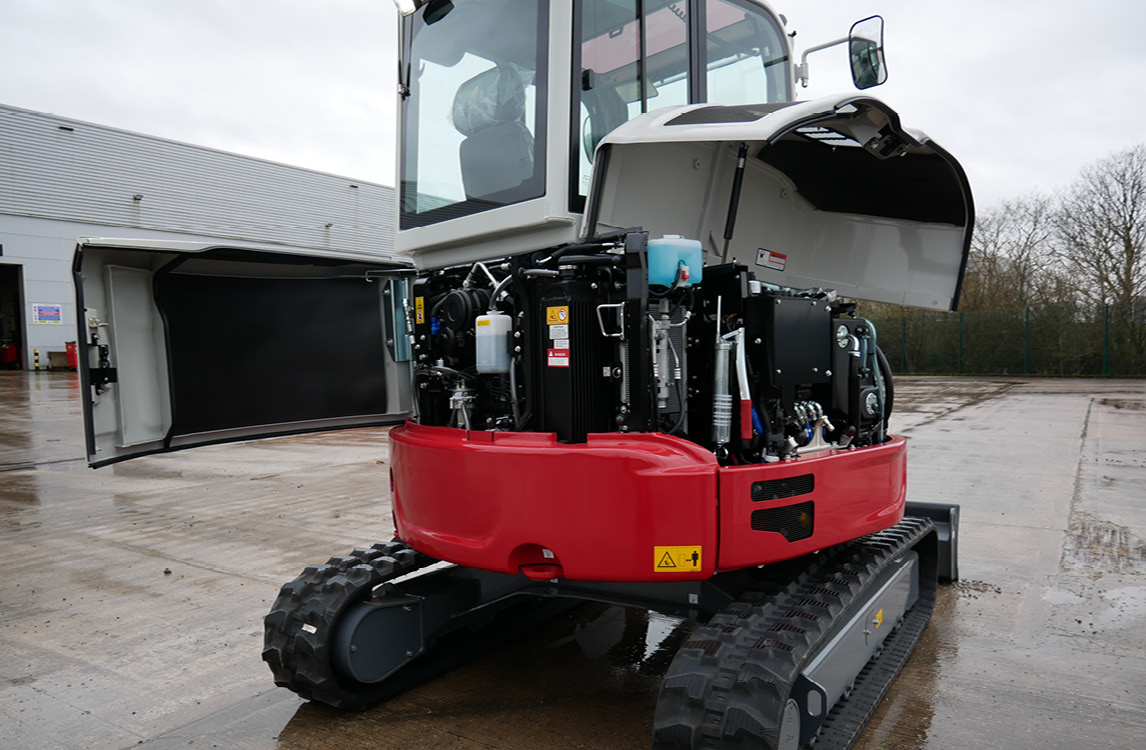

Rear Engine Access
Provides convenient access to daily checks and routine maintenance points.
On-board Power
Internal 12v and USB power sockets and switch activated external roof mounted beacon socket for site ready compliance.
Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers.
